Windshield Washer Hose Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION  .)
  2. Disconnect joint pipe A, then remove windshield washer hose A from clip A.
  3. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)
  4. Remove clips B.
  5. Disconnect joint pipe B, then remove windshield washer hose A.
  6. Disconnect windshield washer hose B from the washer nozzle, then remove windshield washer hose B.
  7. Disconnect joint pipe C, then remove windshield washer hose C.
  8. Remove windshield washer hose D Clips.
  9. Disconnect windshield washer hose D from the washer nozzle, then remove windshield washer hose D.
  10. Install in the reverse order of removal.

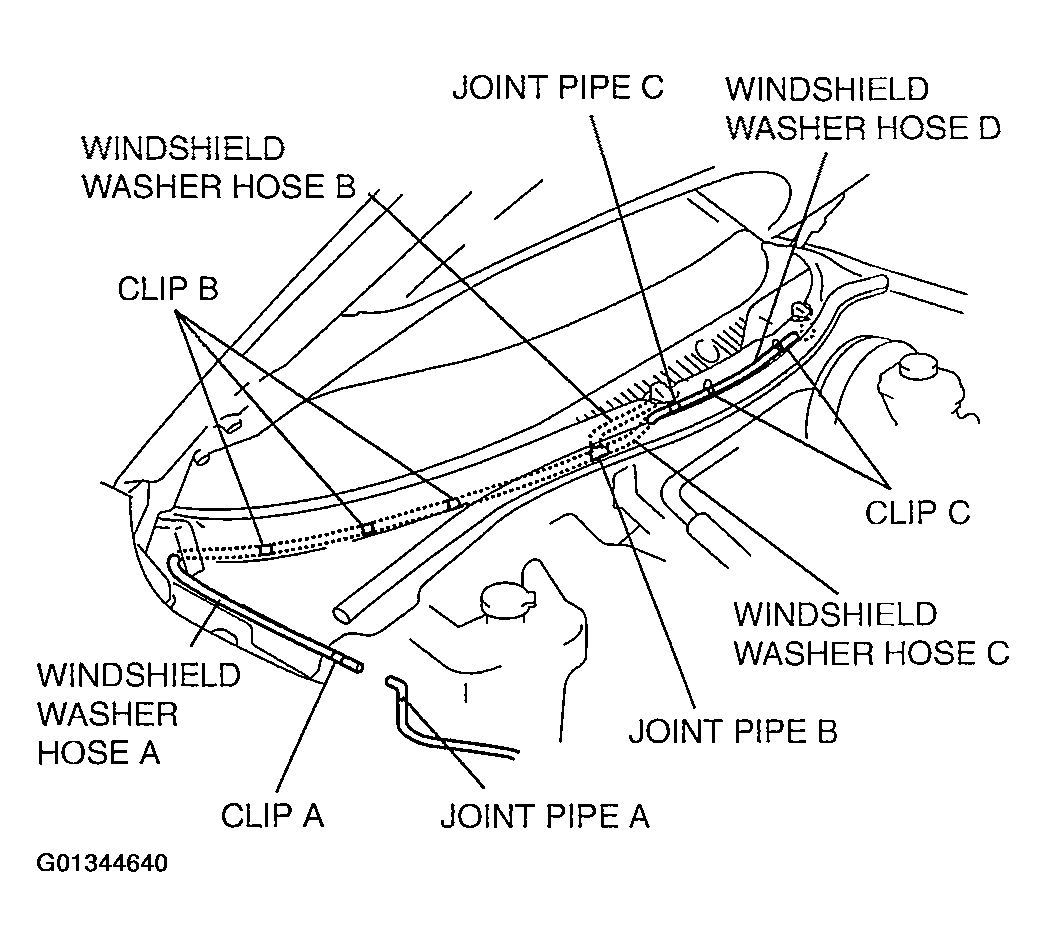

    Fig 1: Removing/Installing Windshield Washer Hose
    G01344640Courtesy of MAZDA MOTORS CORP.
