Component Identification

NOTE: Use illustration to identify system components. See Fig 1 .

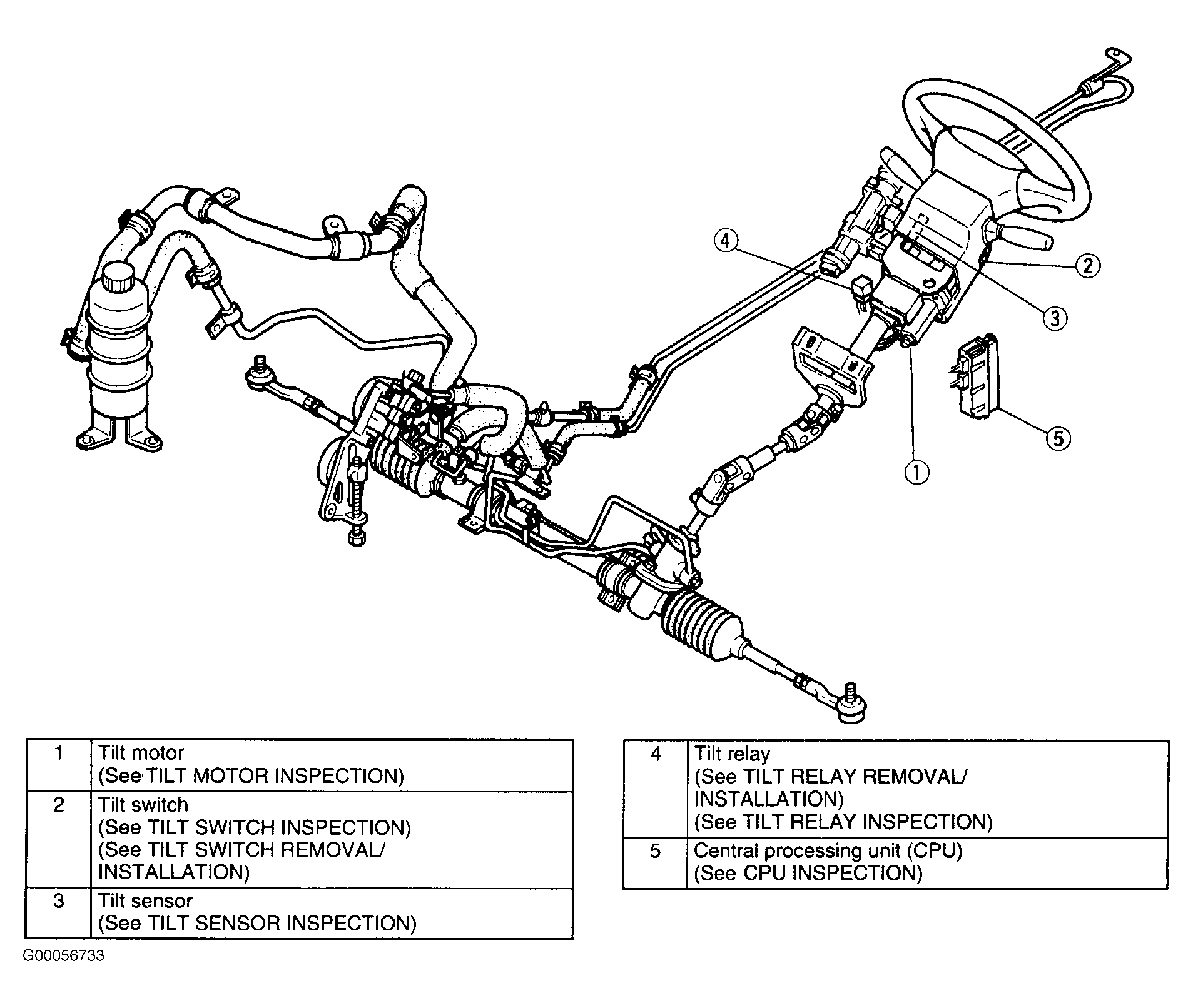

Fig 1: Auto-Tilt Steering System Components
G00056733Courtesy of MAZDA MOTORS CORP.
