Outer Mirror Glass Disassembly Note

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Press area A of the mirror glass so that area B moves outward.

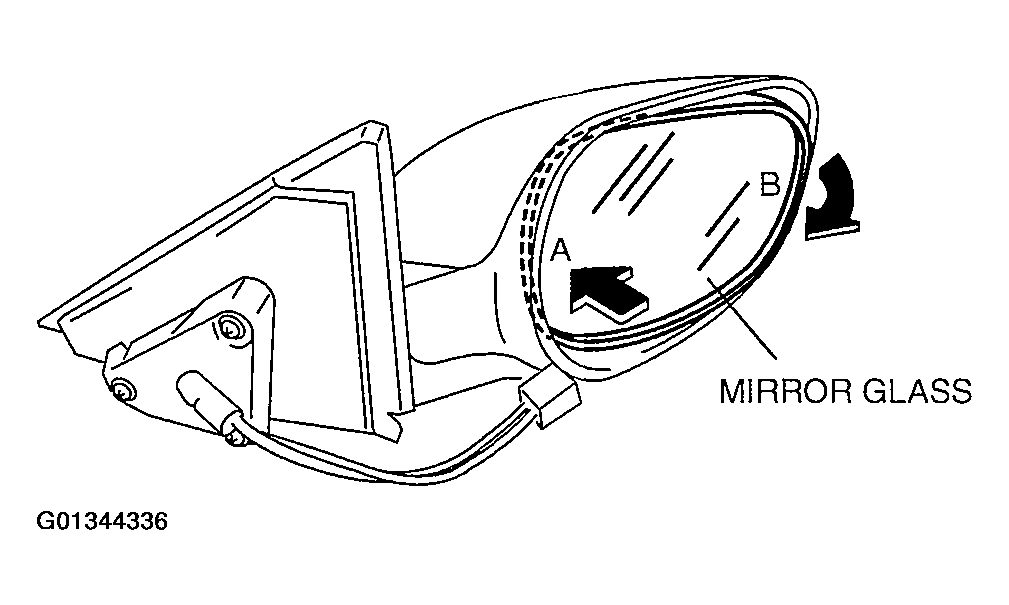

Fig 1: Pressing Area A Of Mirror Glass So Area B Moves Outward
Courtesy of MAZDA MOTORS CORP.
Detach pin A while lifting up the inside of the mirror glass holder.

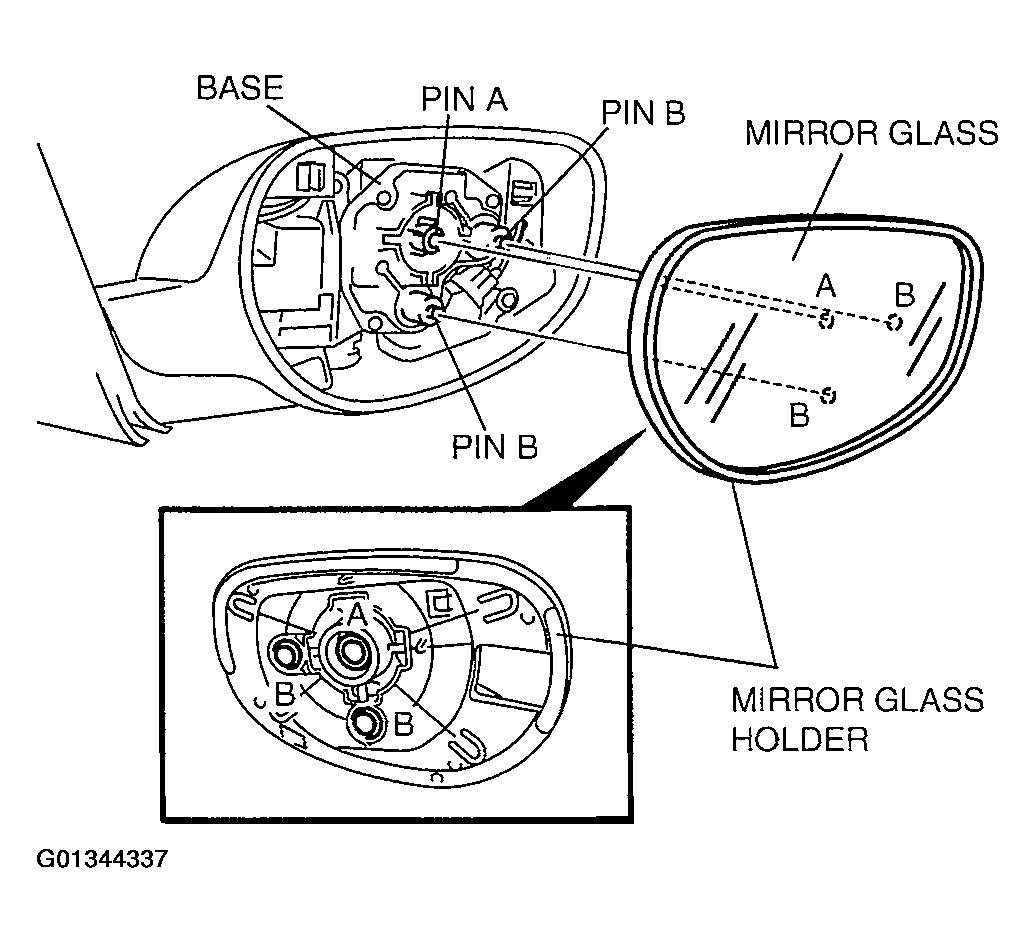

Fig 2: Disassembling Outer Mirror Glass
Courtesy of MAZDA MOTORS CORP.
Pull out the mirror glass holder and detach pins B.
Remove the mirror glass holder and the mirror glass as a single unit.
