Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Component Location |
| Joint Box |

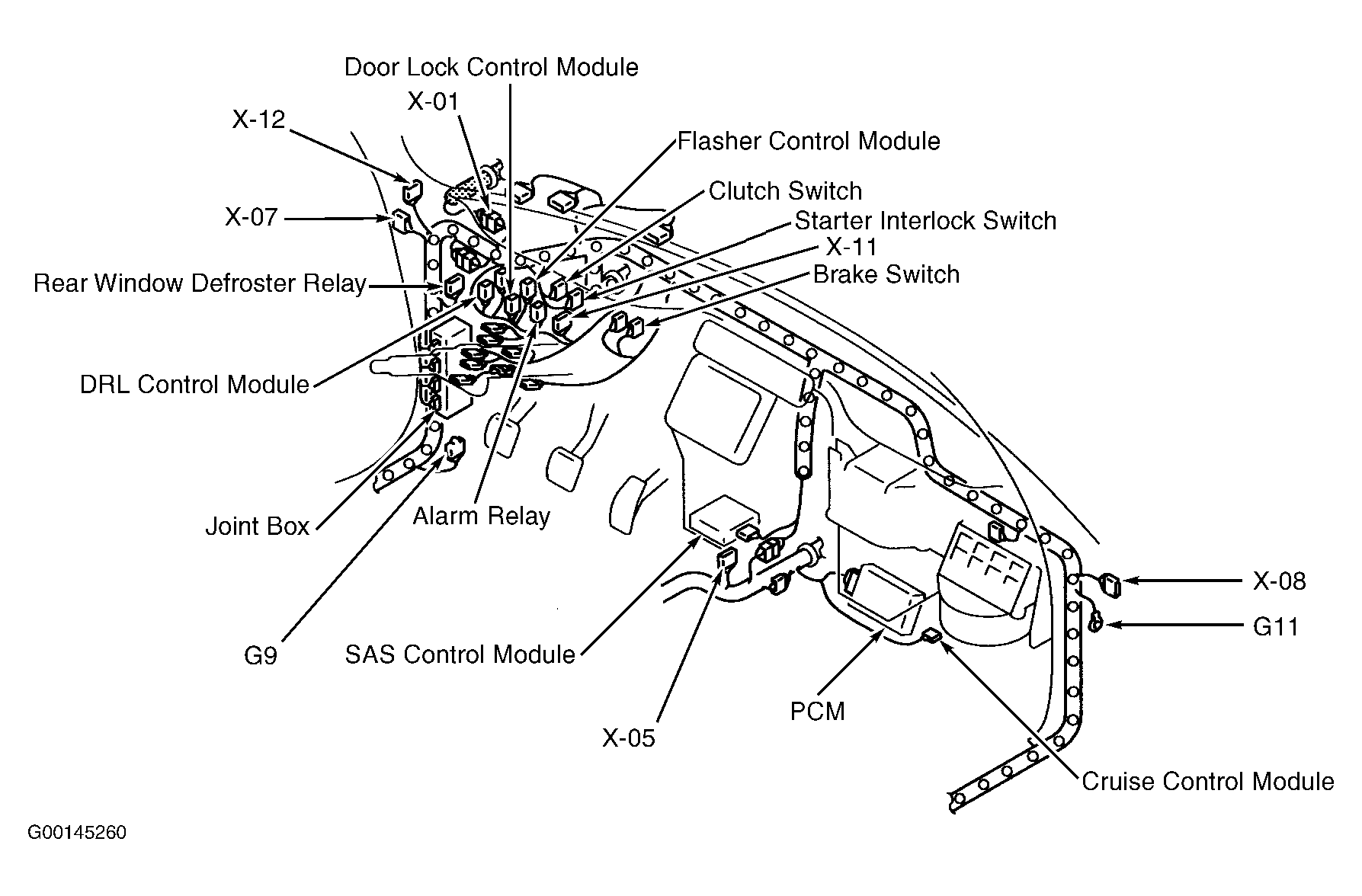

Behind left kick panel. See Figure
. |
| Main Fuse Block (1.6L) |

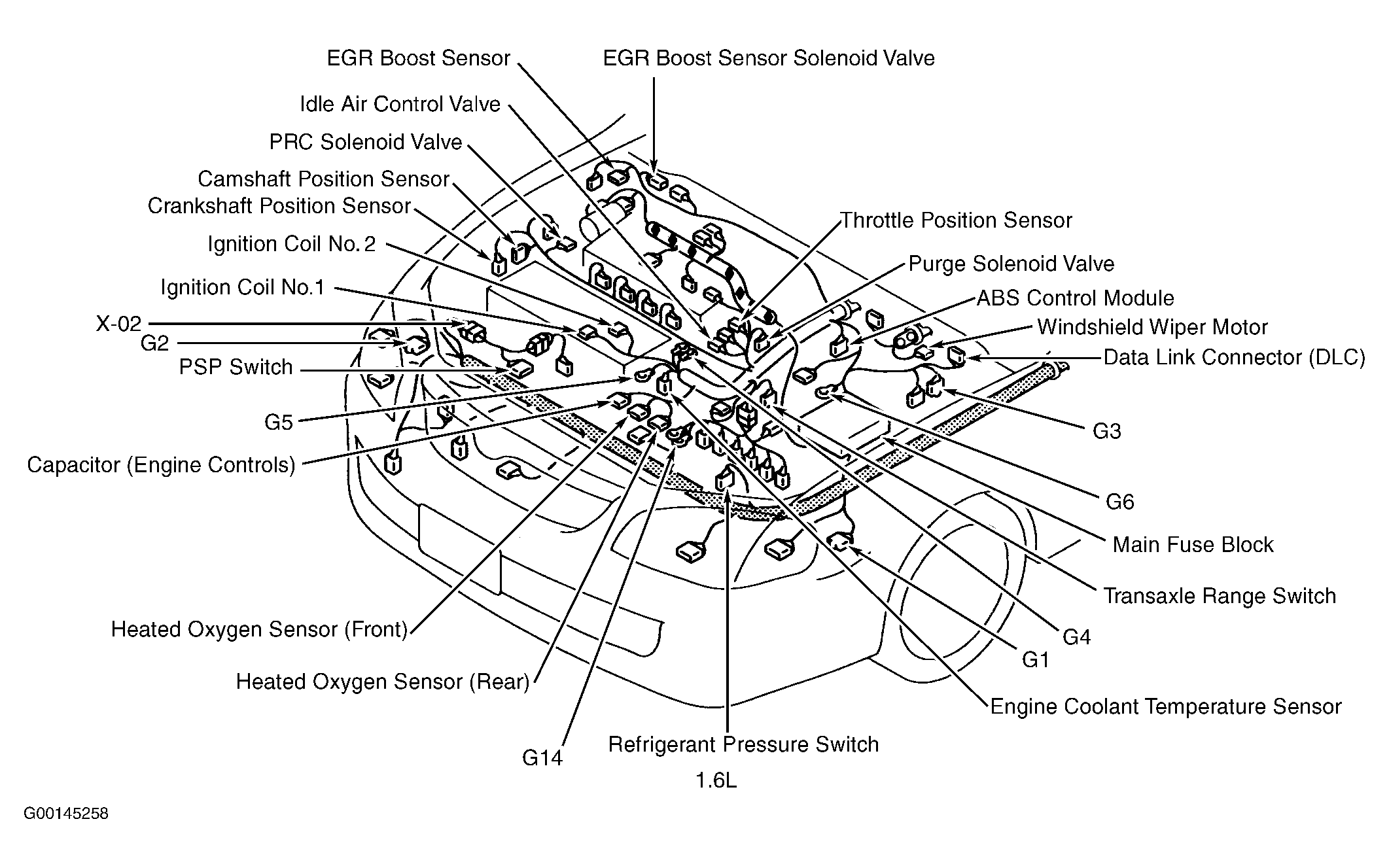

On left front inner fender panel. See Figure
. |
| Main Fuse Block (2.0L) |
On left front inner fender panel. See Figure
. |
