Transaxle Support Insulator - LH: Removal

Disconnect the breather tube and mass air flow (MAF) sensor.

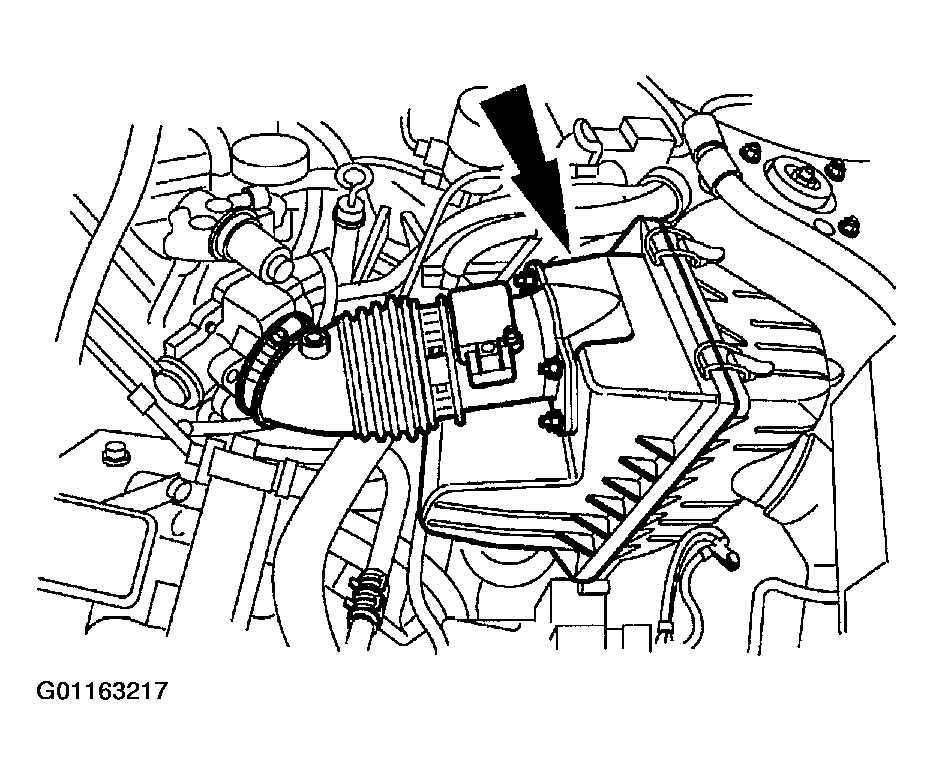

Fig 1: Disconnecting Breather Tube And Mass Air Flow (Maf) Sensor
Remove the intake tube and air cleaner cover.

Fig 2: Removing Intake Tube And Air Cleaner Cover
Remove the air cleaner assembly.

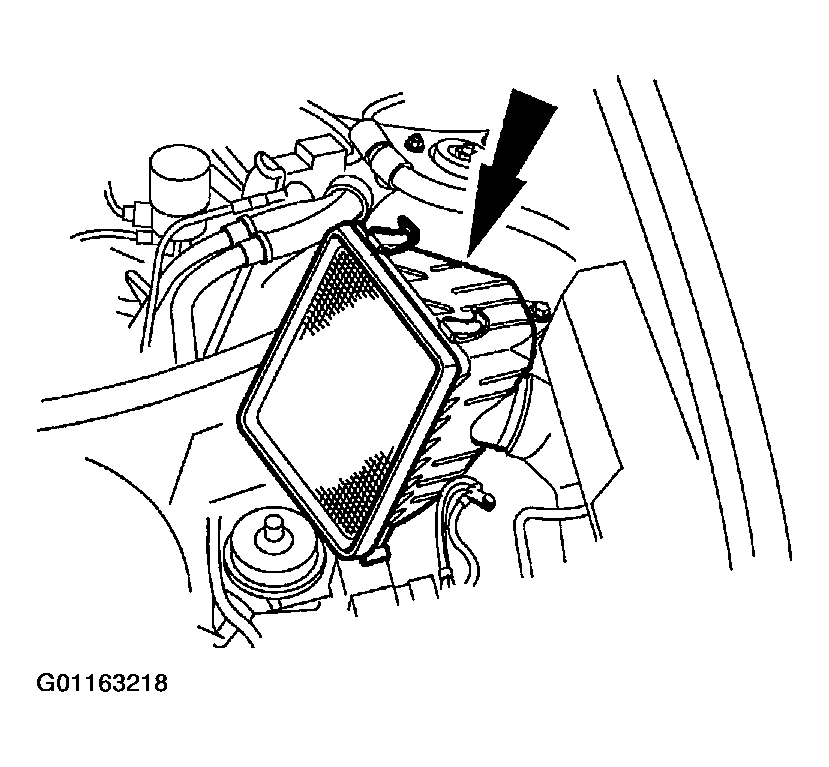

Fig 3: Removing Air Cleaner Assembly
Install the special tools.

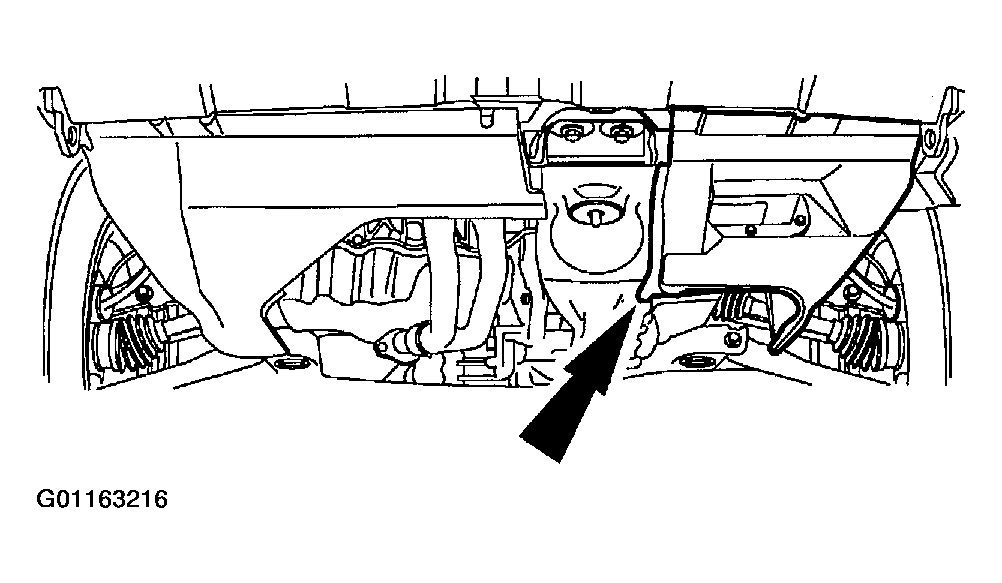

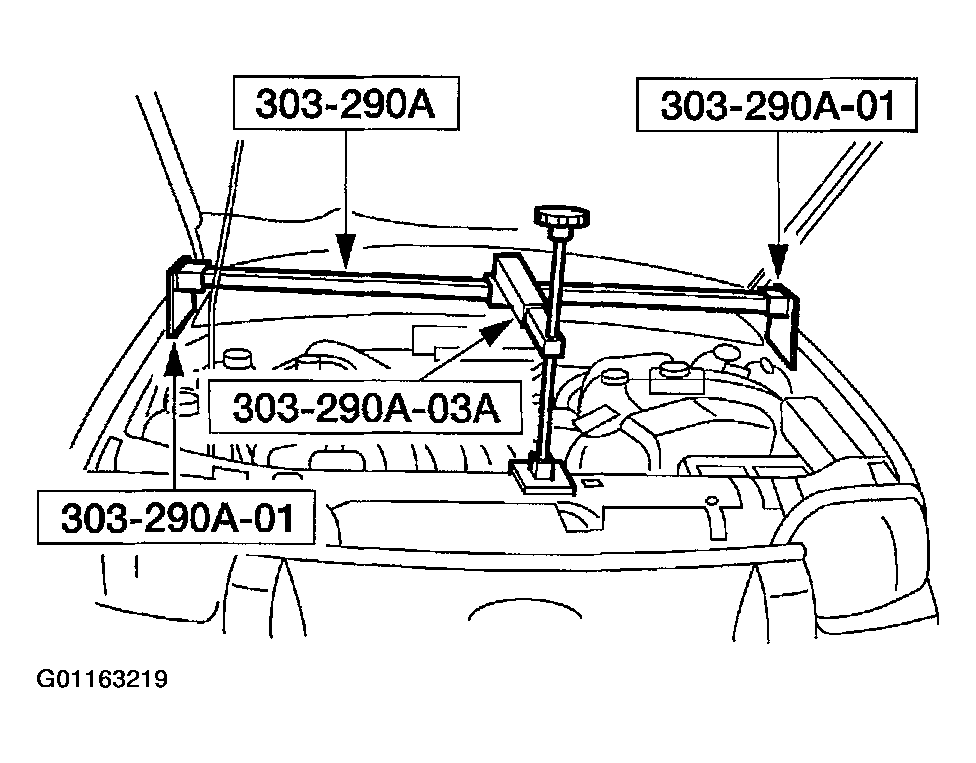

Fig 4: Installing Special Tools
Install the special tools.

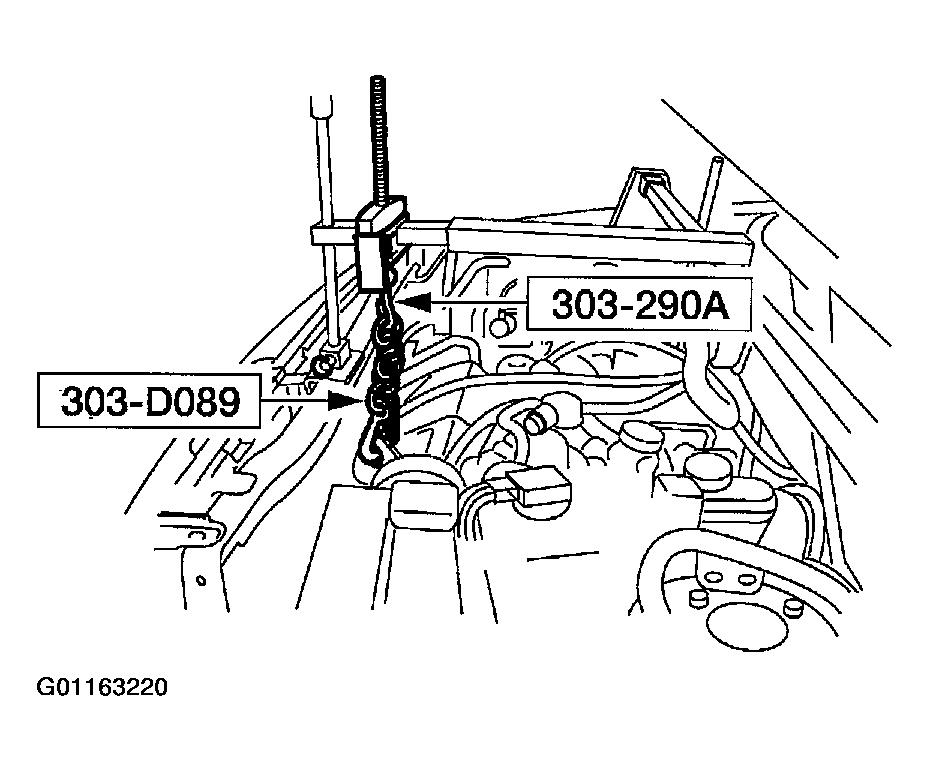

Fig 5: Installing Special Tools
Remove the upper transaxle mount bolt.

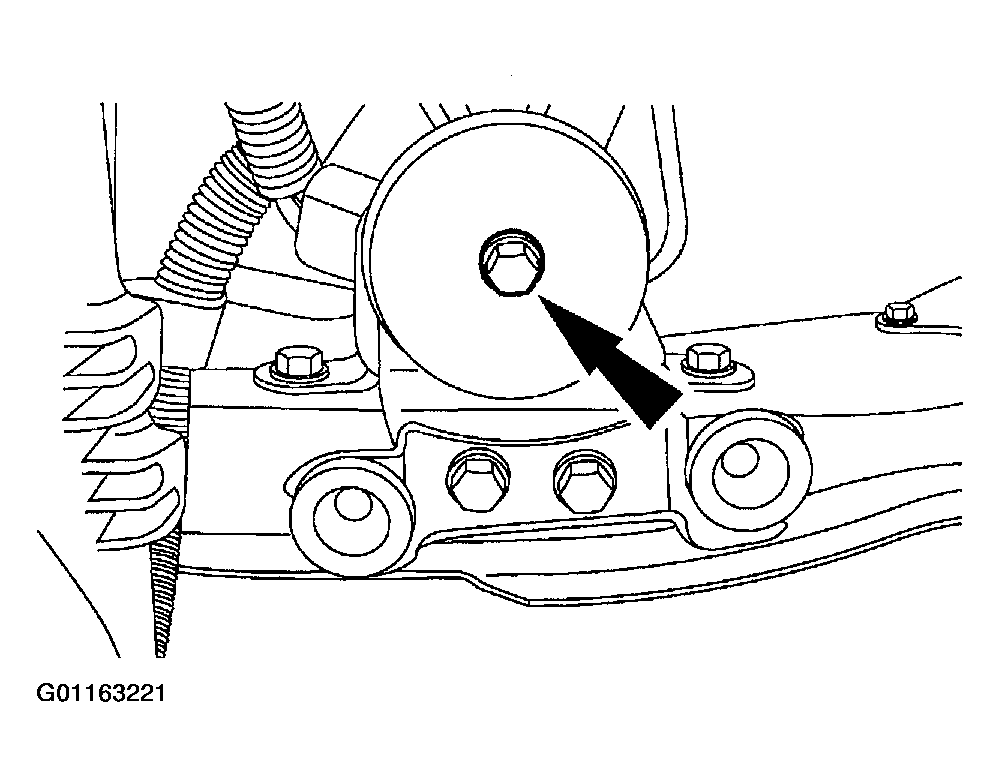

Fig 6: Removing Upper Transaxle Mount Bolt
Remove the upper transaxle insulator.

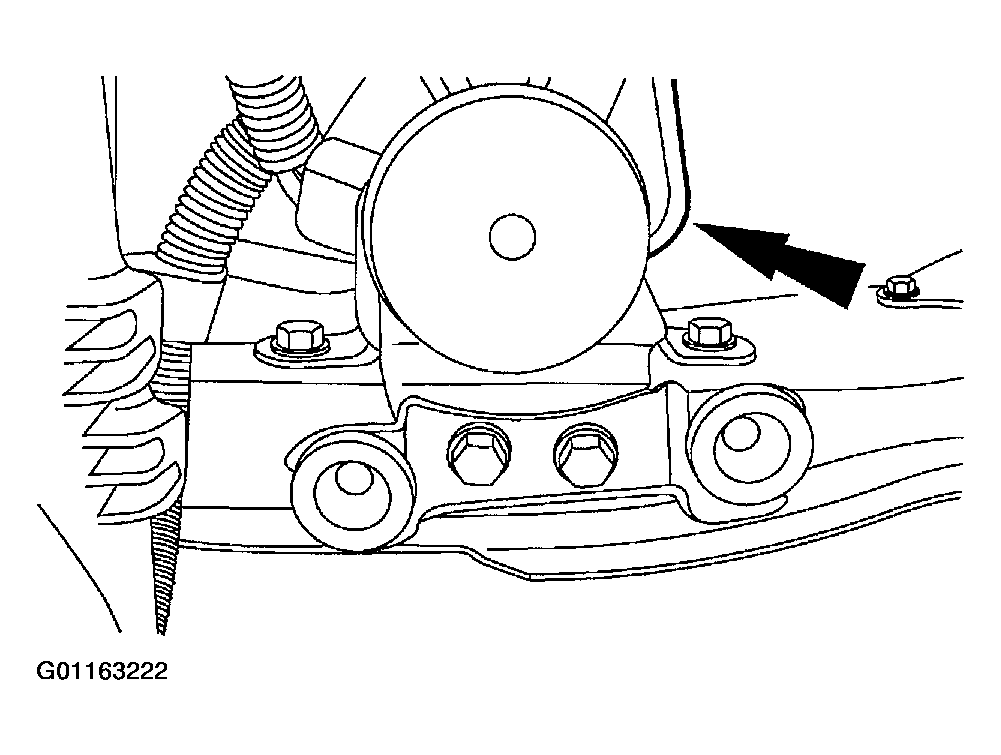

Fig 7: Removing Upper Transaxle Insulator
Remove the top and bottom mount cups.

Fig 8: Removing Top And Bottom Mount Cups
