Warning Lamp Indicators

The anti-lock brake system uses the Yellow ABS warning indicator to alert the driver of malfunctions in the ABS. The Yellow ABS warning indicator will come on for numerous reasons. It warns the driver that the ABS has been deactivated due to a symptom that exists in the ABS. Normal power assist braking remains, but wheels can lock during a panic stop while the Yellow ABS warning indicator is illuminated.

The diagnostic procedures must be followed step-by-step in order to correct the condition.

Fig 1: Anti-Lock Brake Control Module Diagnostic Trouble Code Index (B1342, B1485, B1676, C1095,C1145 & C1155)

Fig 2: Anti-Lock Brake Control Module Diagnostic Trouble Code Index (C1165, C1175, C1233, C1234, C1235 & C1236)

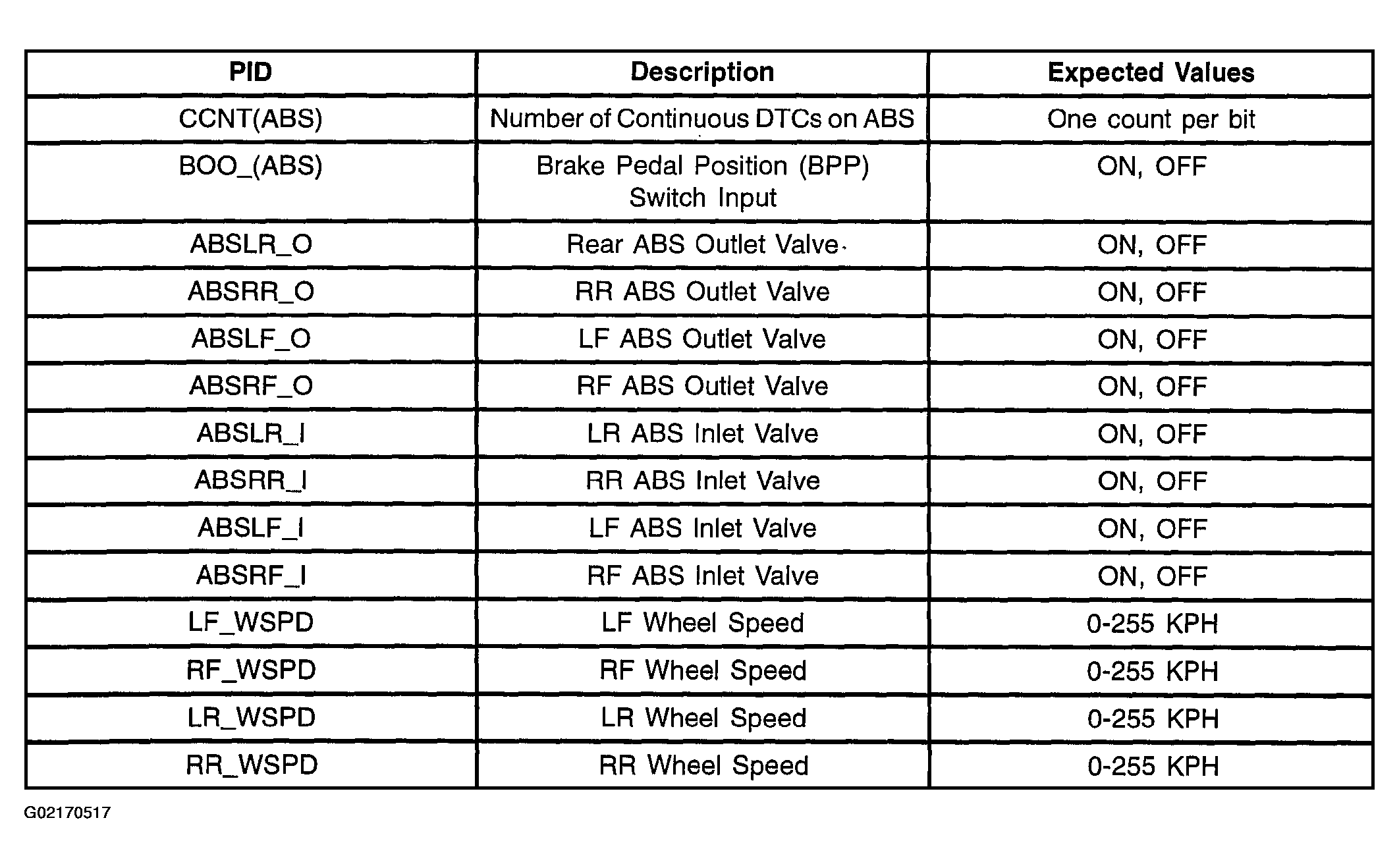

Fig 3: Anti-Lock Brake Control Module Parameter Identification (PID) Index

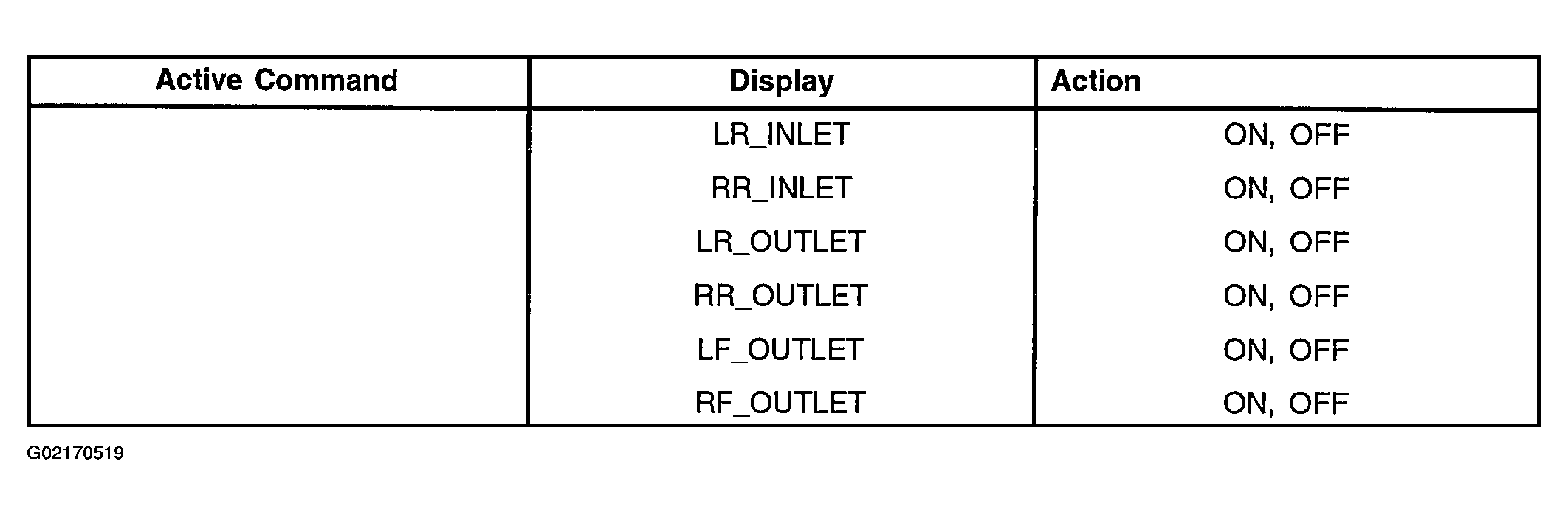

Fig 4: Anti-Lock Brake Control Module Active Command Index (1 Of 2)

Fig 5: Anti-Lock Brake Control Module Active Command Index (2 Of 2)
