Troubleshooting Index

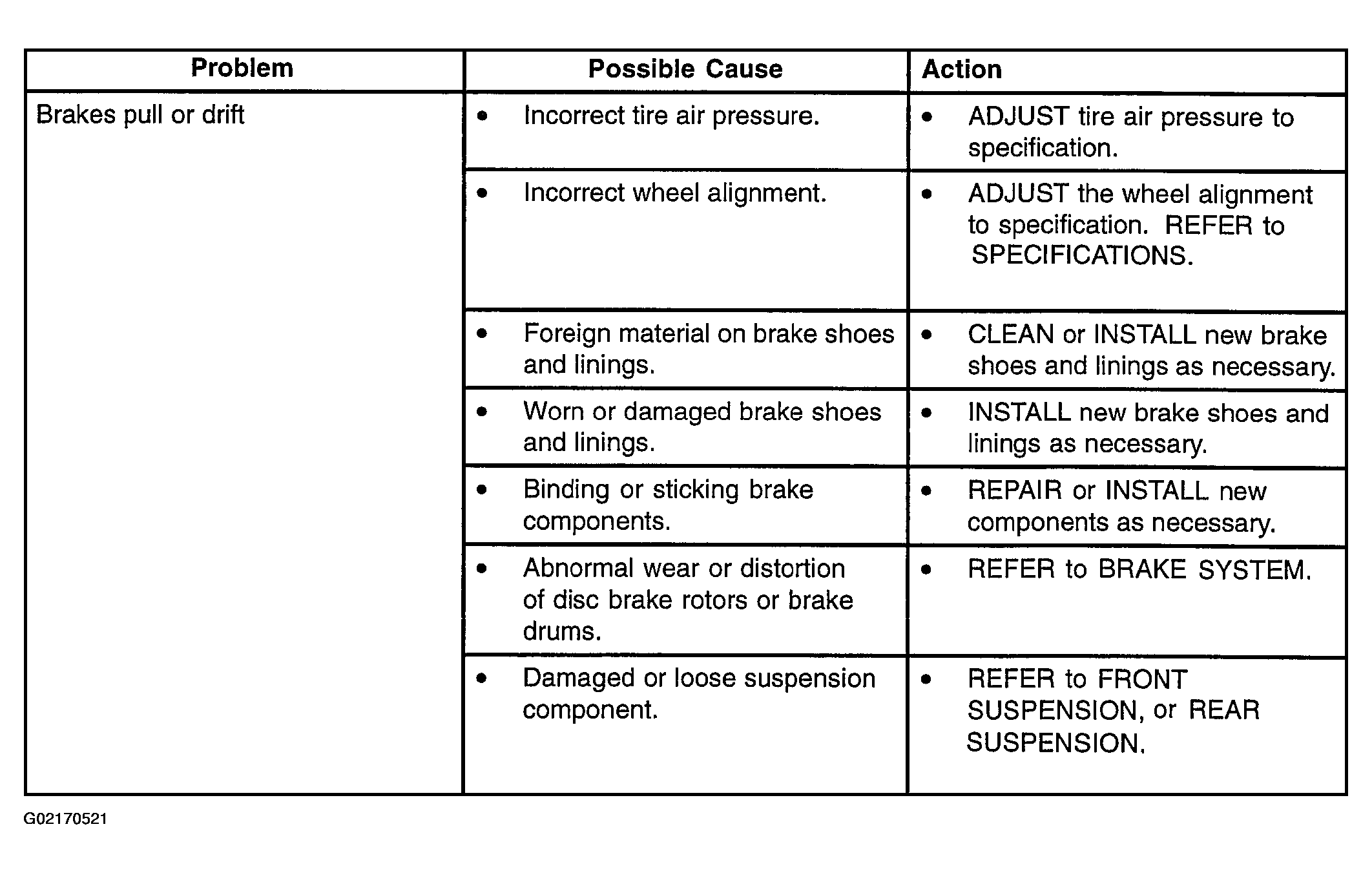

Fig 1: Troubleshooting Index (1 Of 4)

G02170521

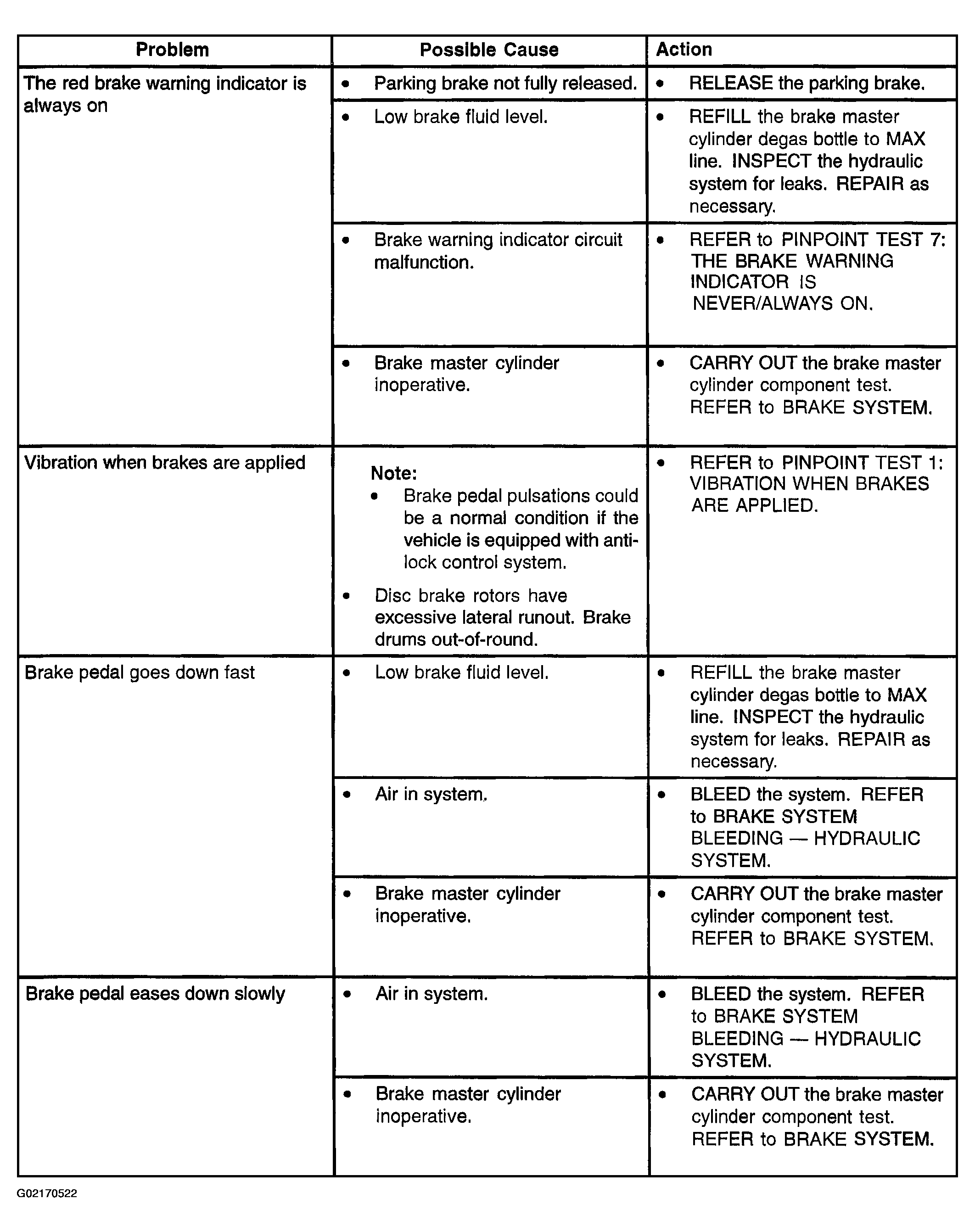

Fig 2: Troubleshooting Index (2 Of 4)

G02170522

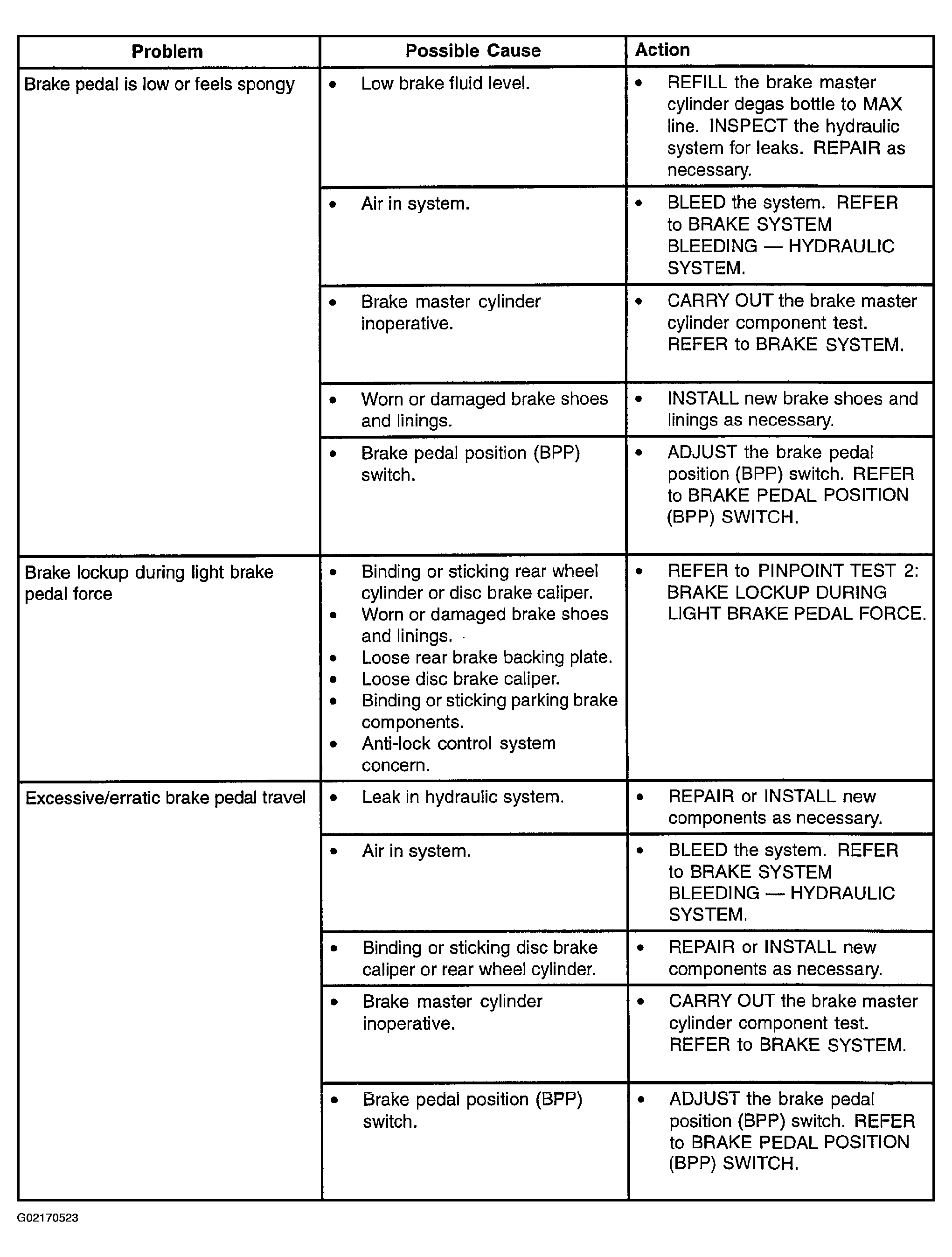

Fig 3: Troubleshooting Index (3 Of 4)

G02170523

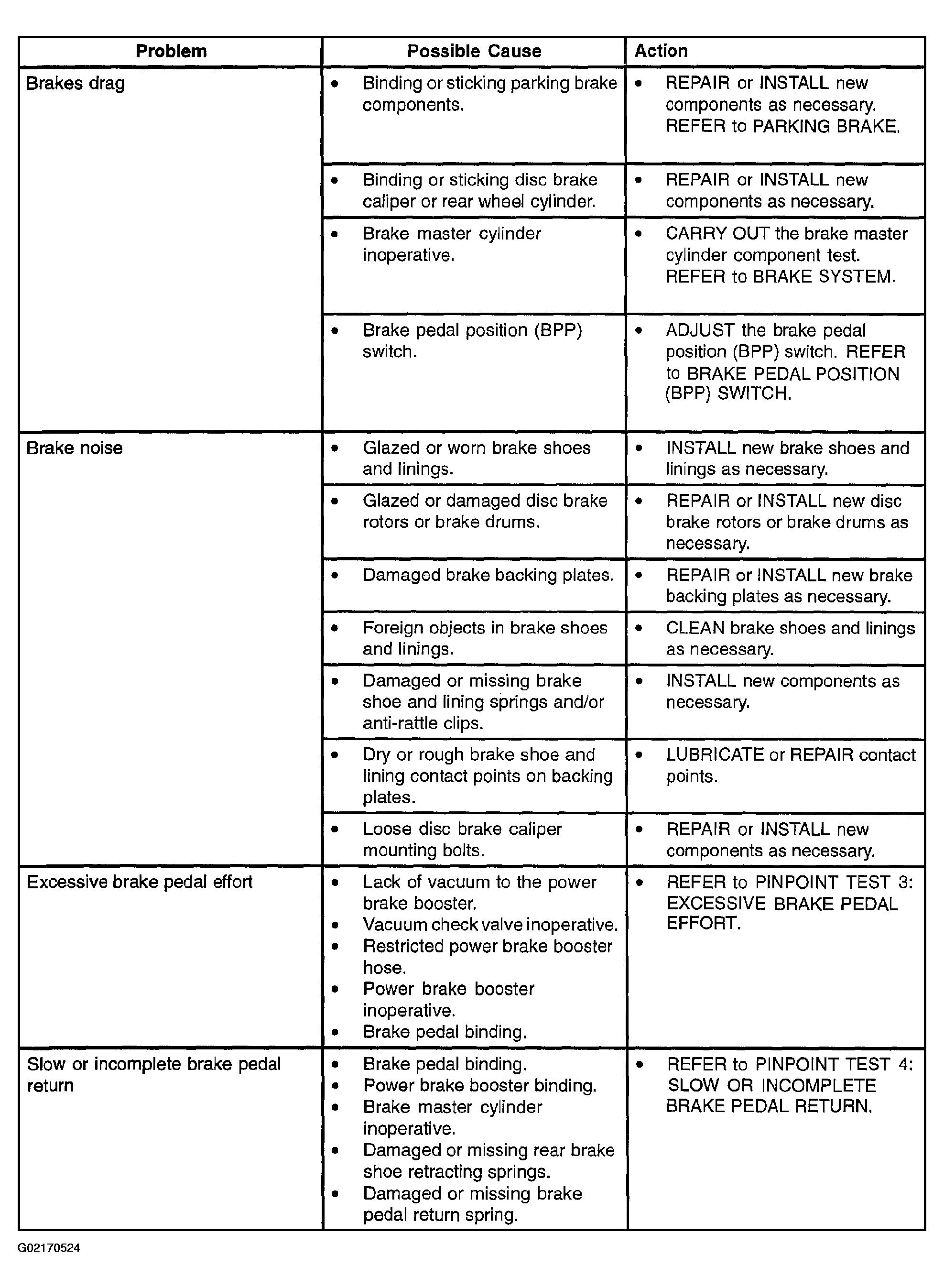

Fig 4: Troubleshooting Index (4 Of 4)

G02170524
