Disassembled Views

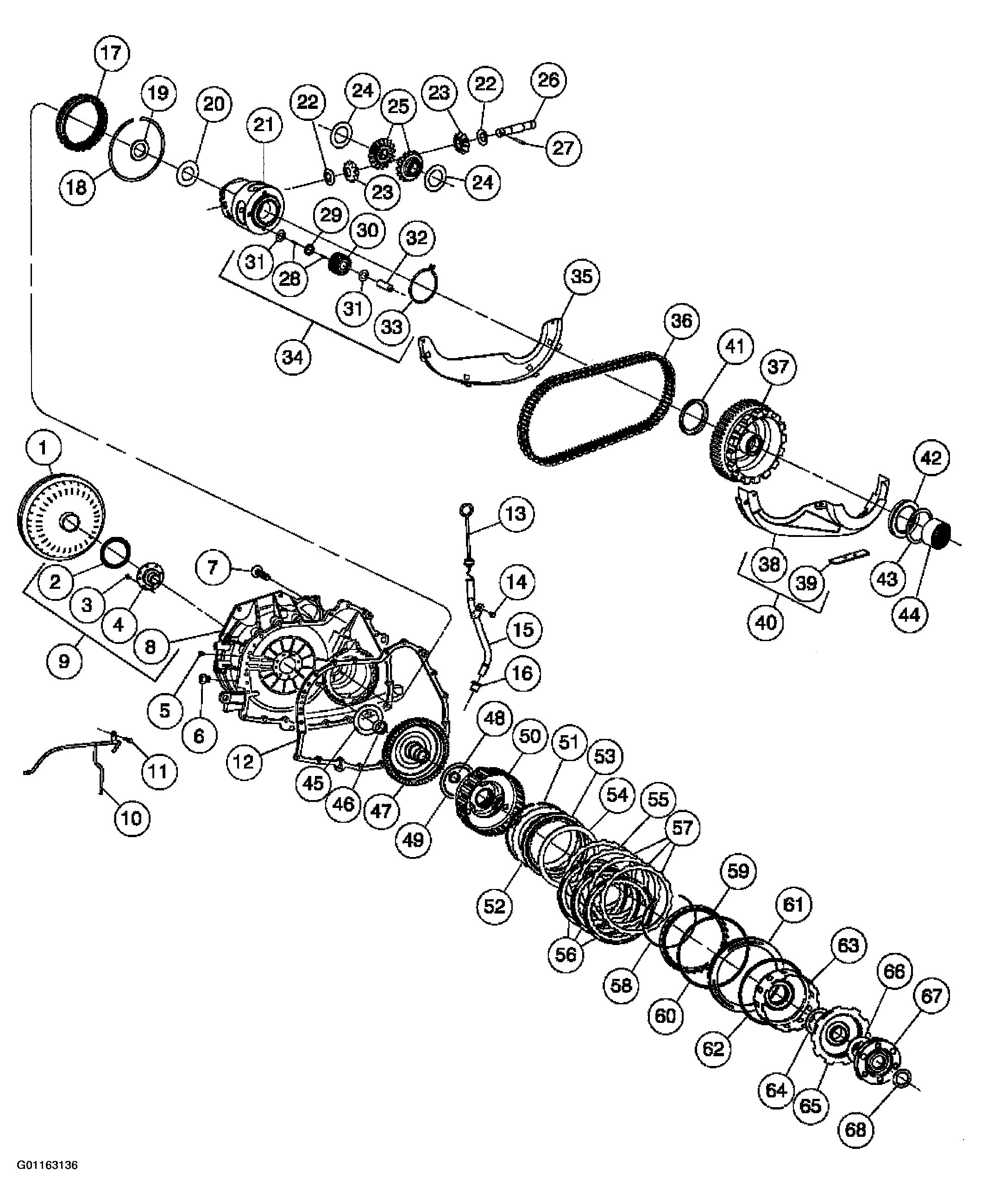

Fig 1: Disassembled View Of Transaxle (1 Of 3)

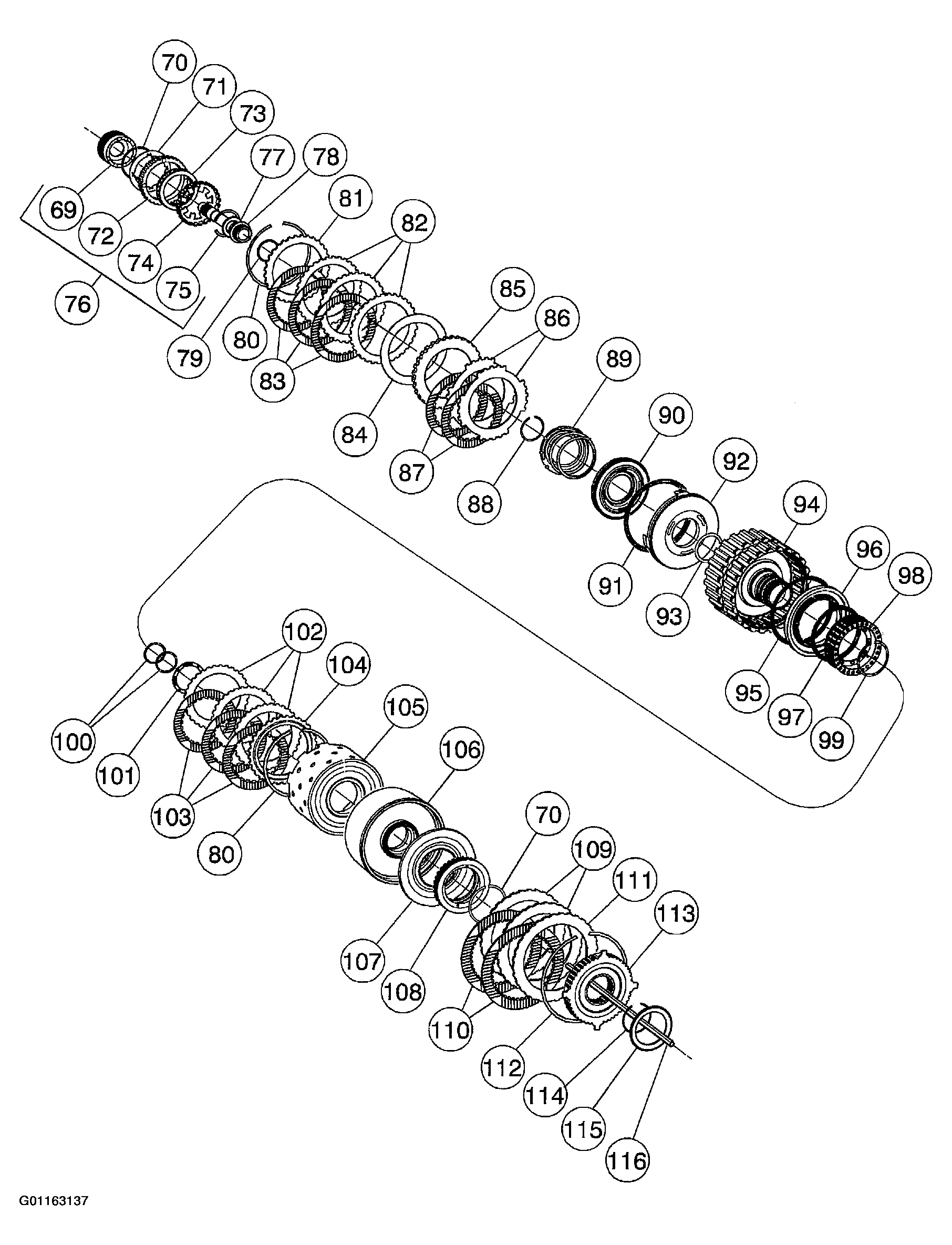

Fig 2: Disassembled View Of Transaxle (2 Of 3)

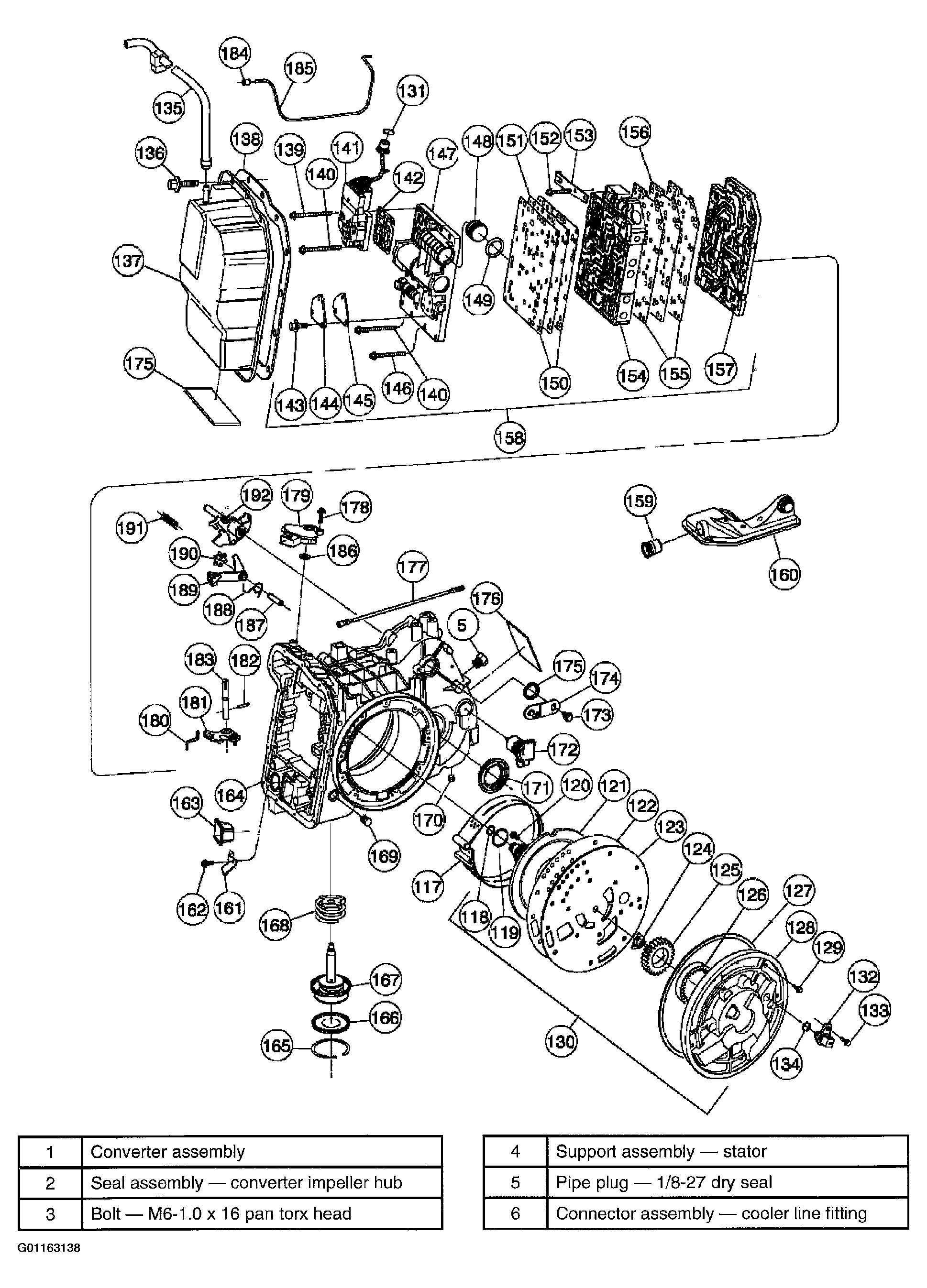

Fig 3: Disassembled View Of Transaxle (3 Of 3) & Legend (Component Numbers 1-6)

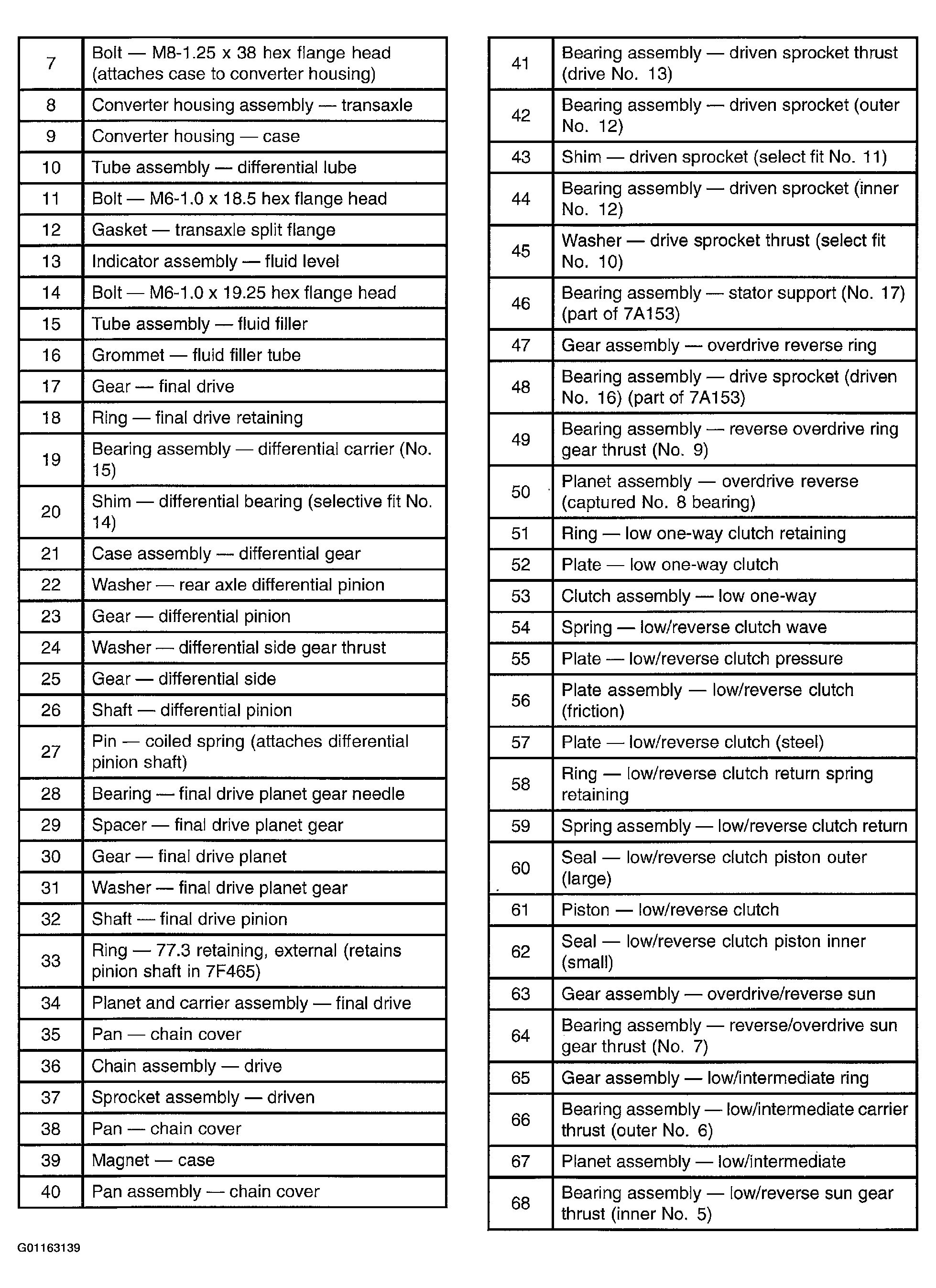

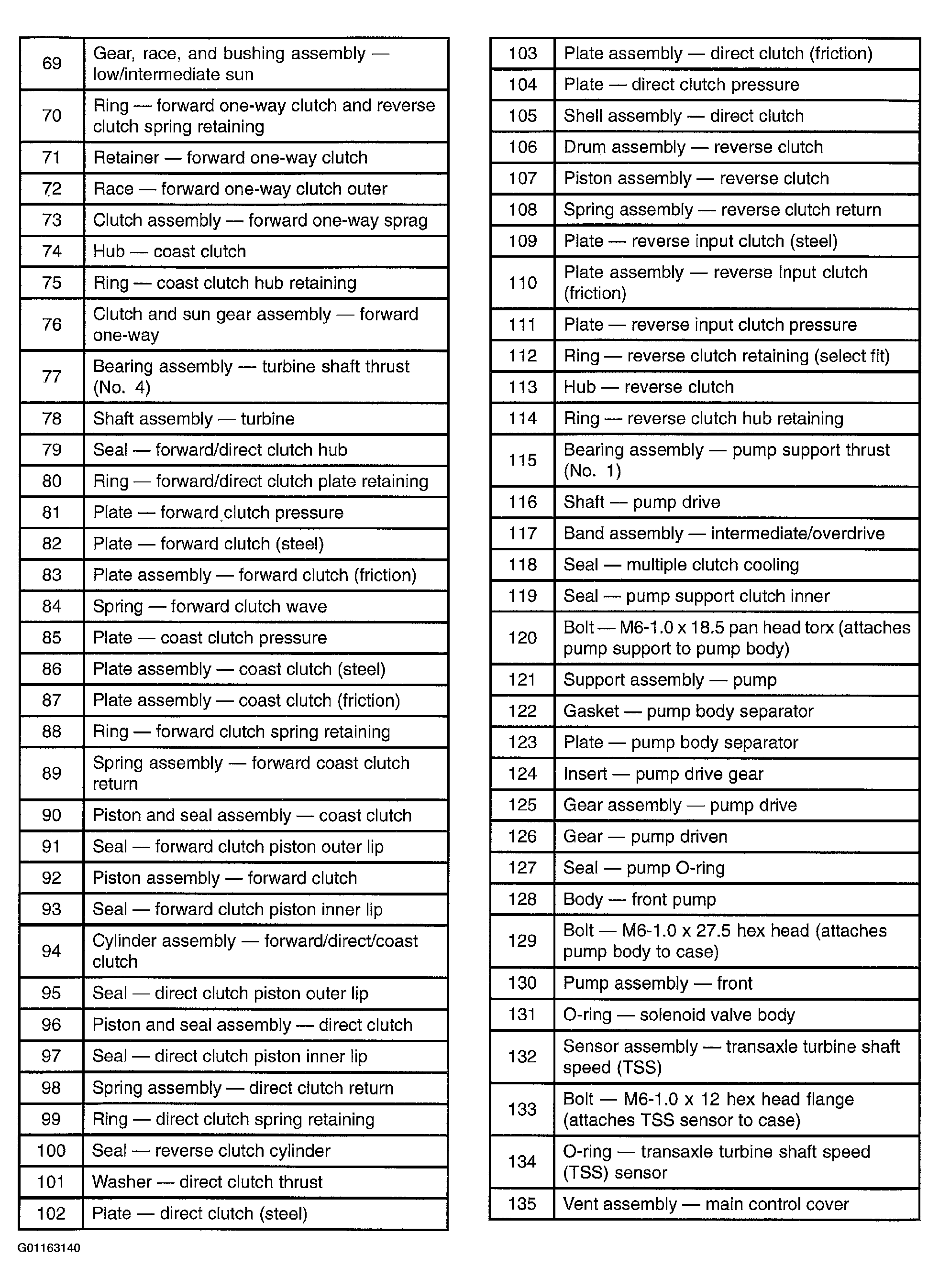

Fig 4: Legend (Component Numbers 7-68)

Fig 5: Legend (Component Numbers 69-135)

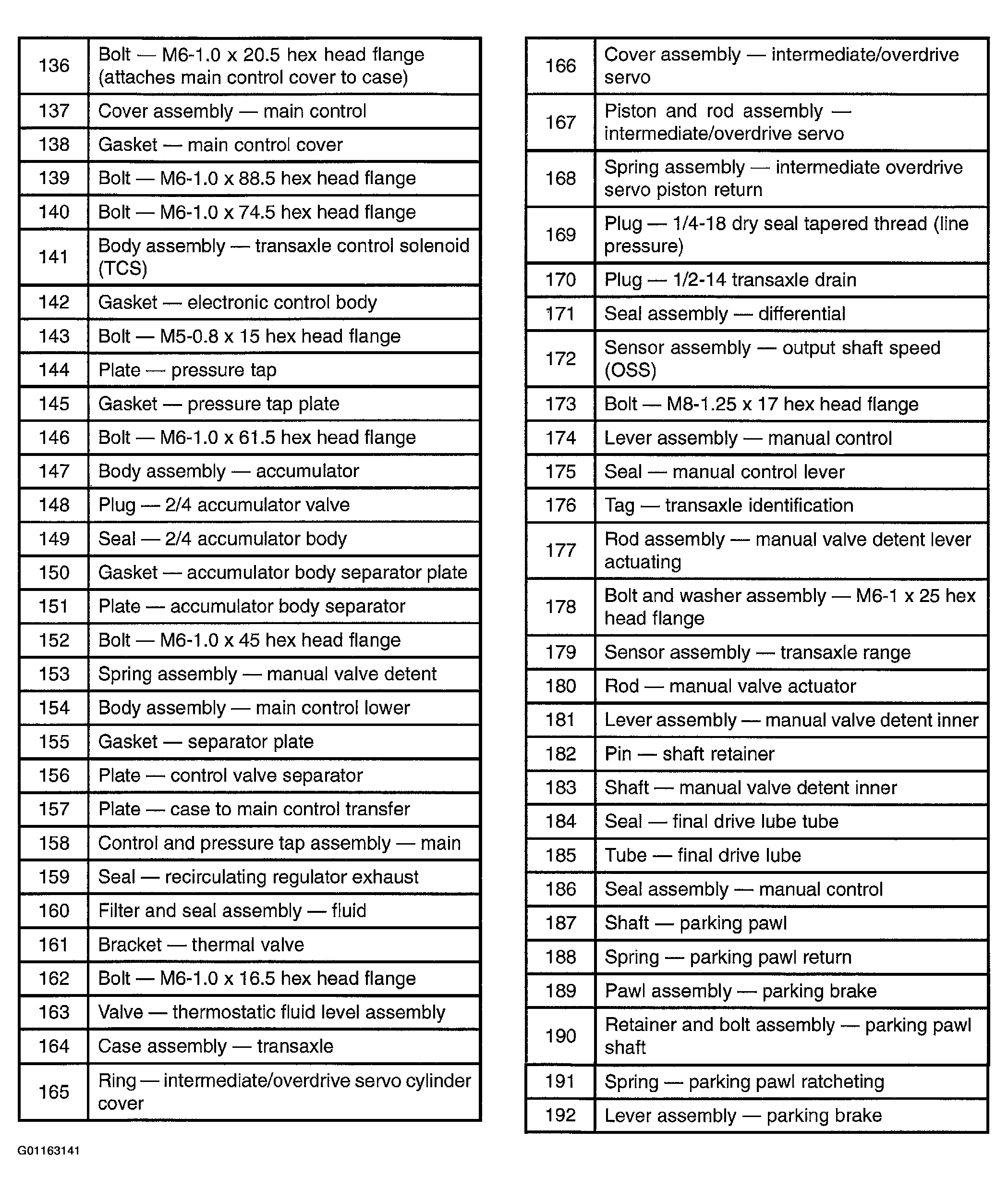

Fig 6: Legend (Component Numbers 136-190)
