Transaxle Support Insulator - LH: Installation

Install the top and bottom mount cups.

Fig 1: Installing Top And Bottom Mount Cups

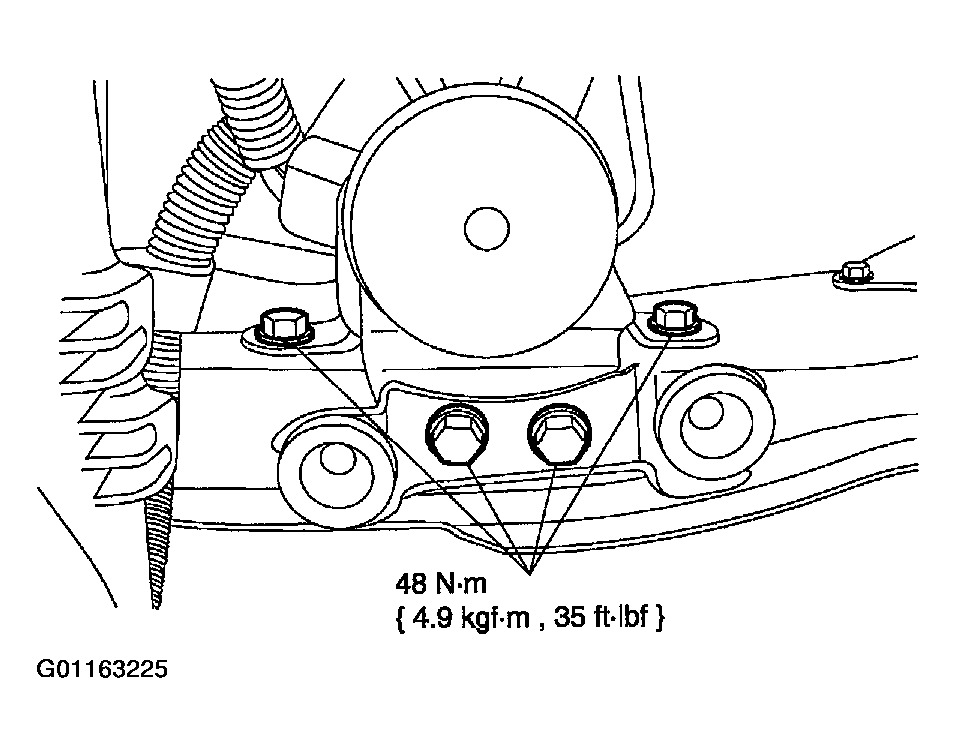

Install the upper transaxle insulator.

Fig 2: Installing Upper Transaxle Insulator

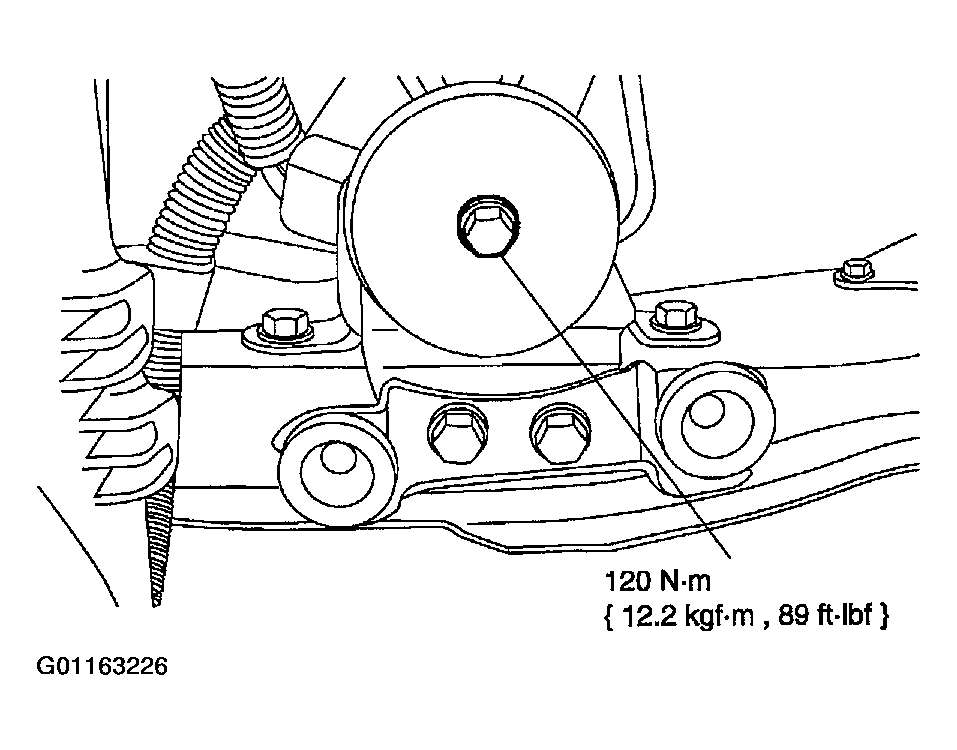

Install the upper transaxle bolt.

Fig 3: Installing Upper Transaxle Bolt

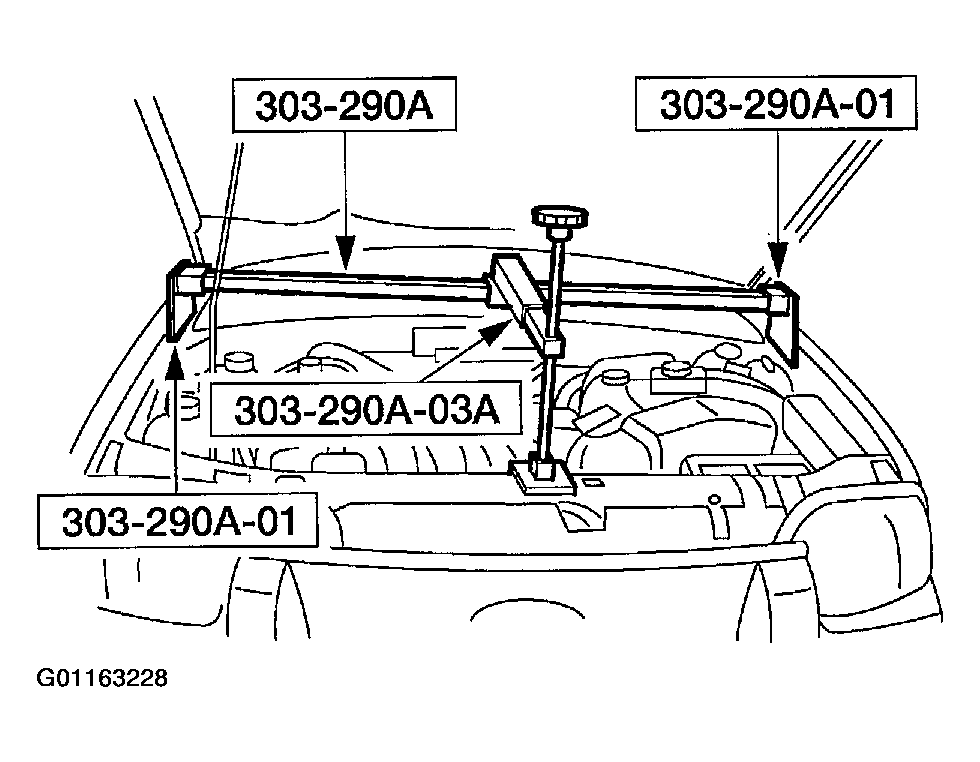

Remove the special tool.

Fig 4: Removing Special Tool

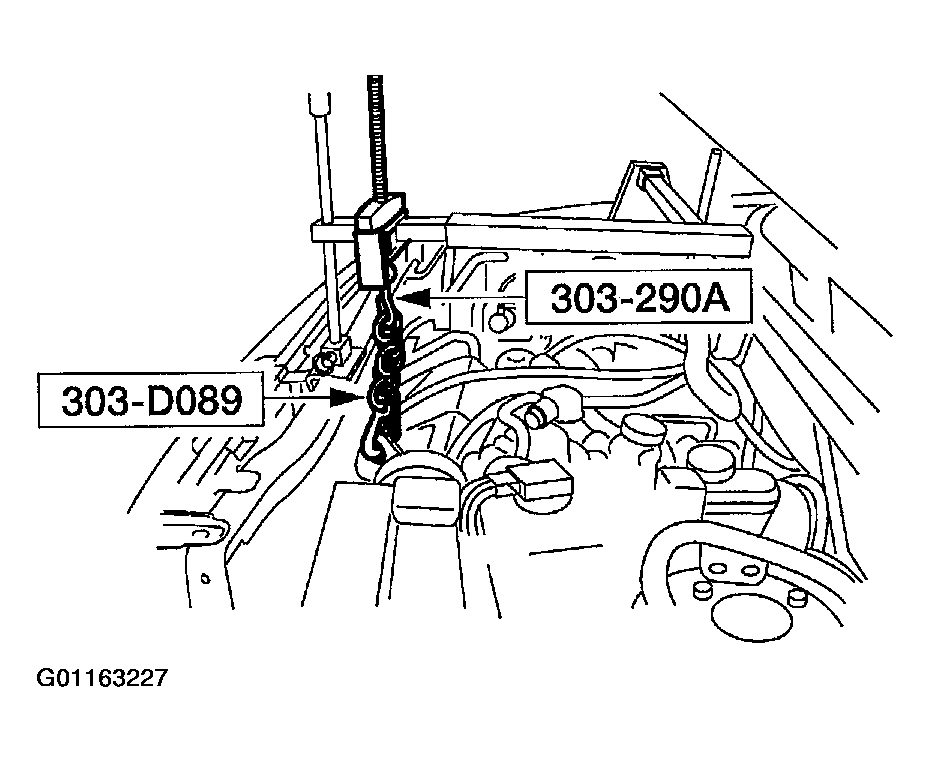

Remove the special tool.

Fig 5: Removing Special Tool

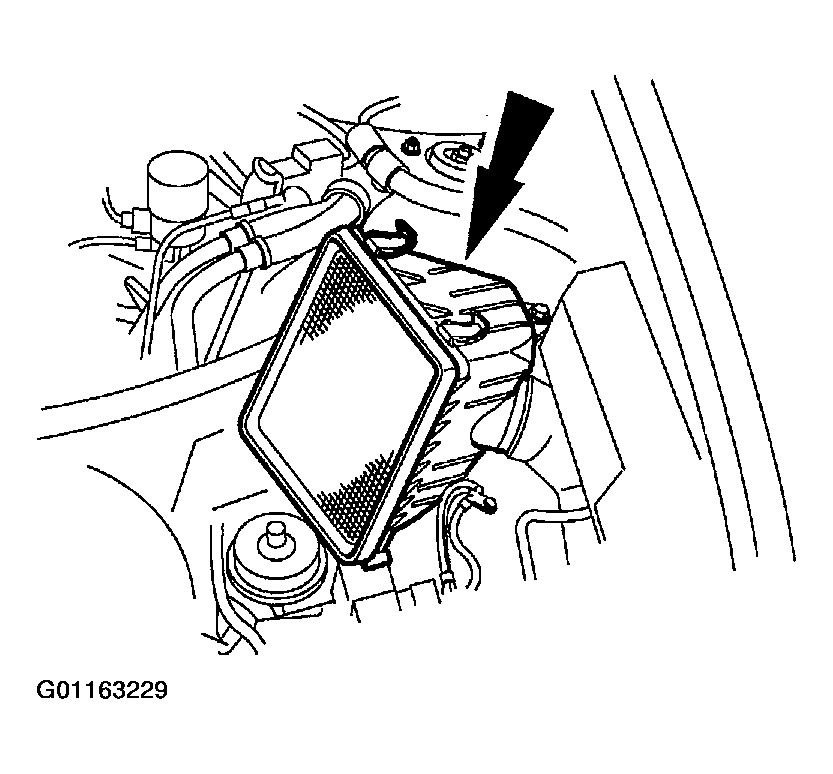

Install the air cleaner assembly.

Fig 6: Installing Air Cleaner Assembly

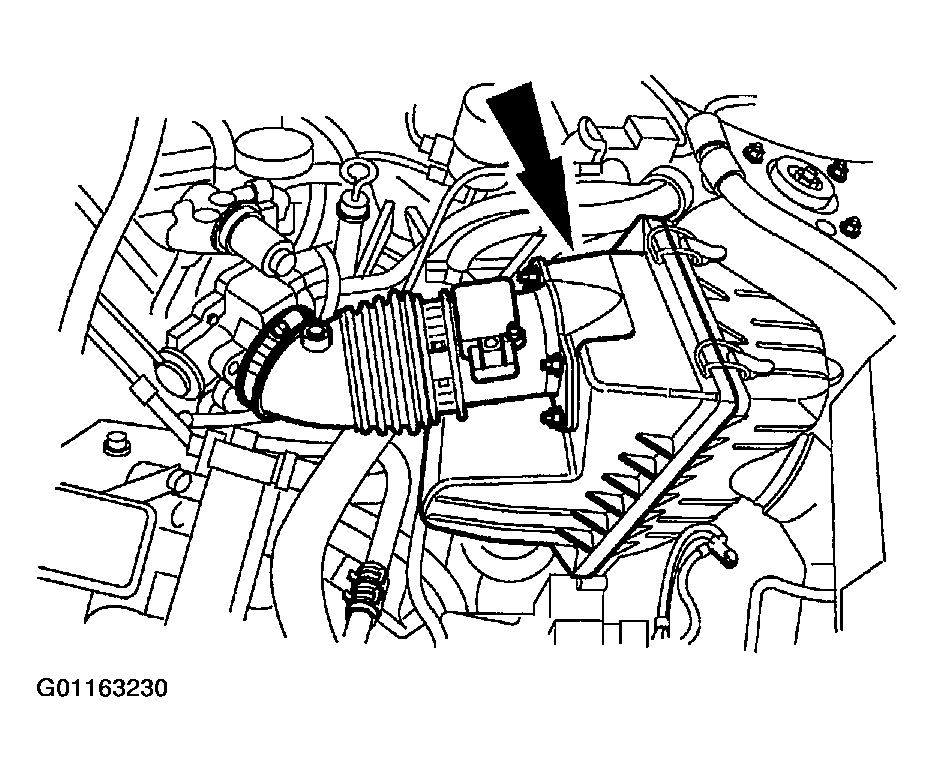

Install the intake tube and air cleaner cover.

Fig 7: Installing Intake Tube And Air Cleaner Cover

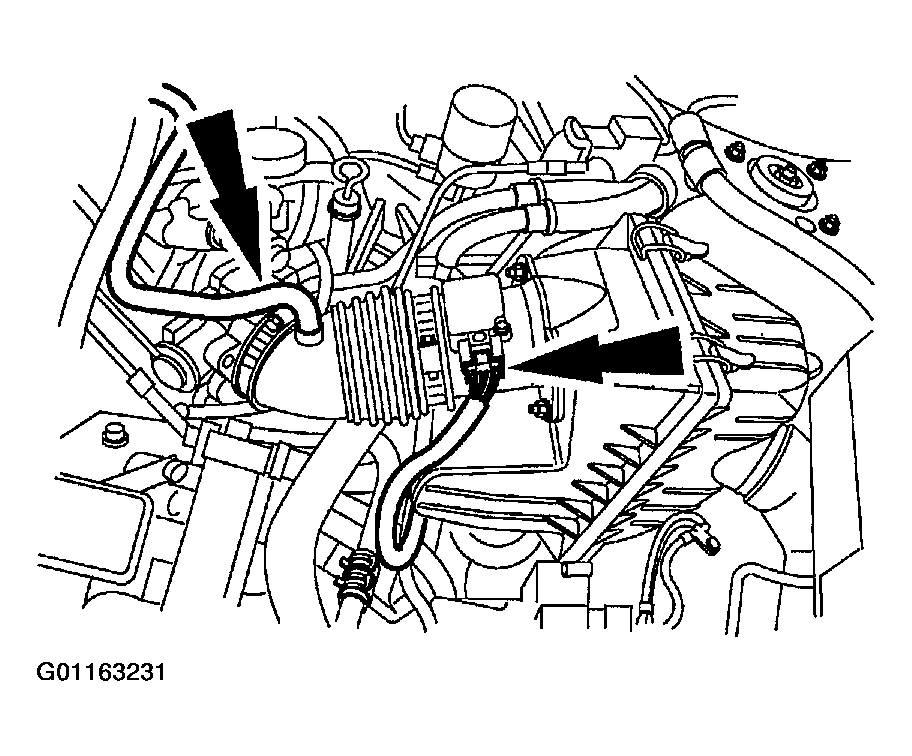

Connect the breather tube and mass air flow (MAF) sensor.

Fig 8: Connecting Breather Tube And Mass Air Flow (MAF) Sensor
