Transaxle Support Insulator - Lower, Front: Installation

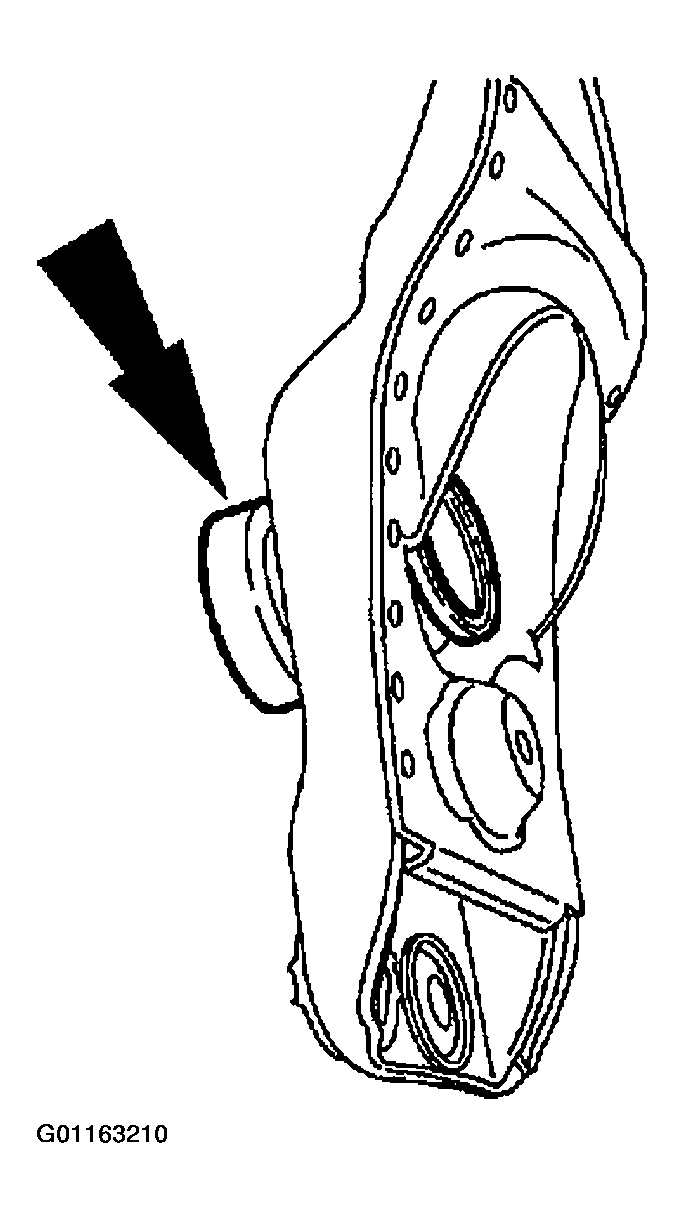

Install a new rubber mount.

Fig 1: Installing Rubber Mount

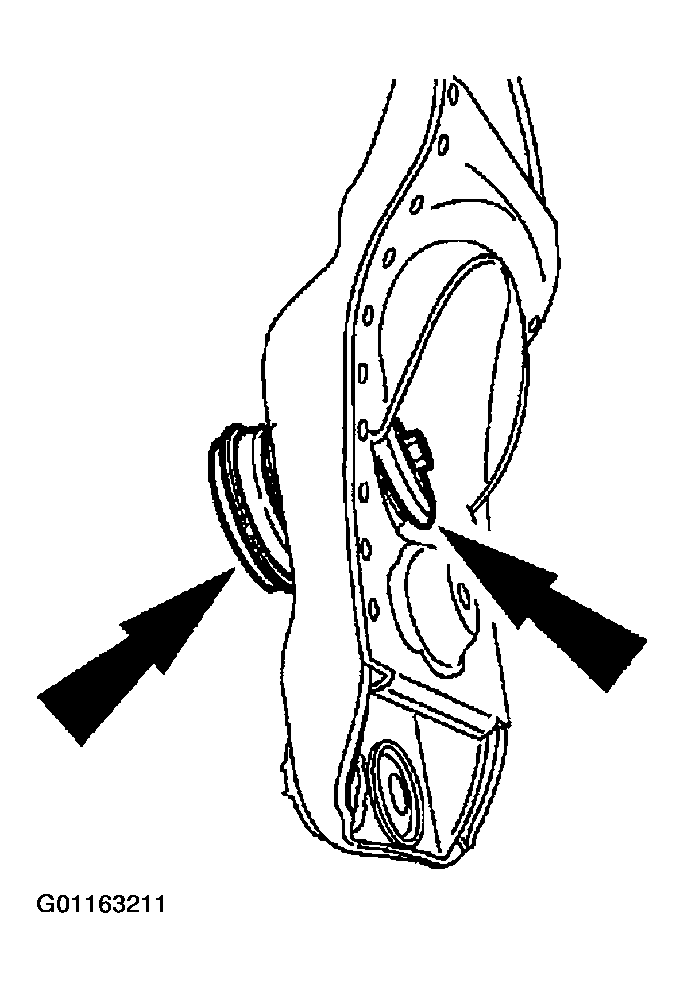

Install the top and bottom mount cups.

Fig 2: Installing Top And Bottom Mount Cups

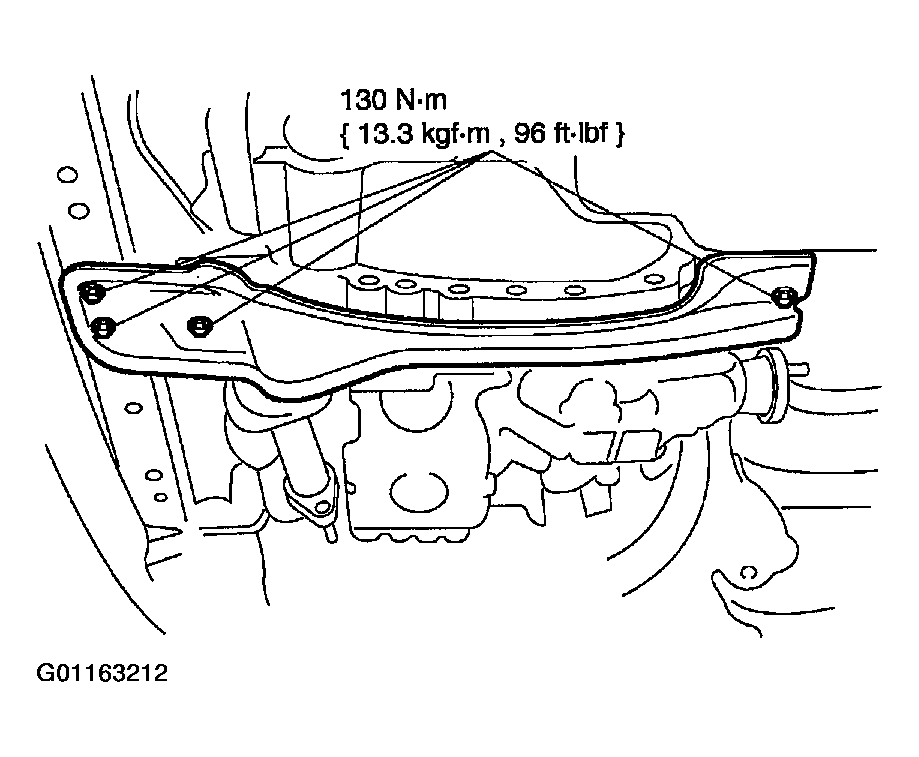

Install the cross brace.

Fig 3: Installing Cross Brace

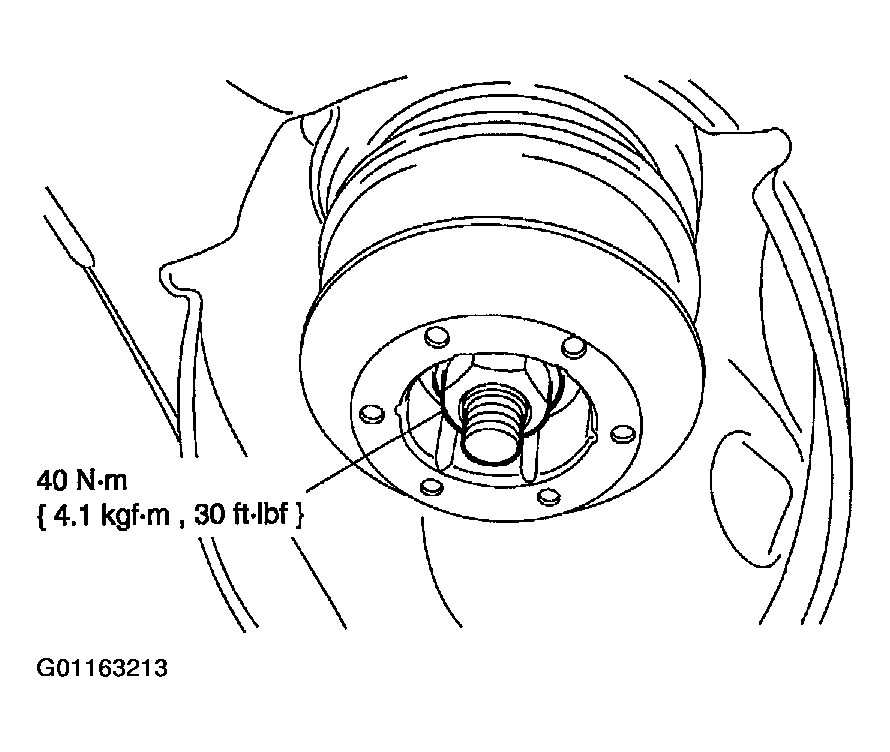

Install the lower vibration dampener.

Fig 4: Installing Lower Vibration Dampener

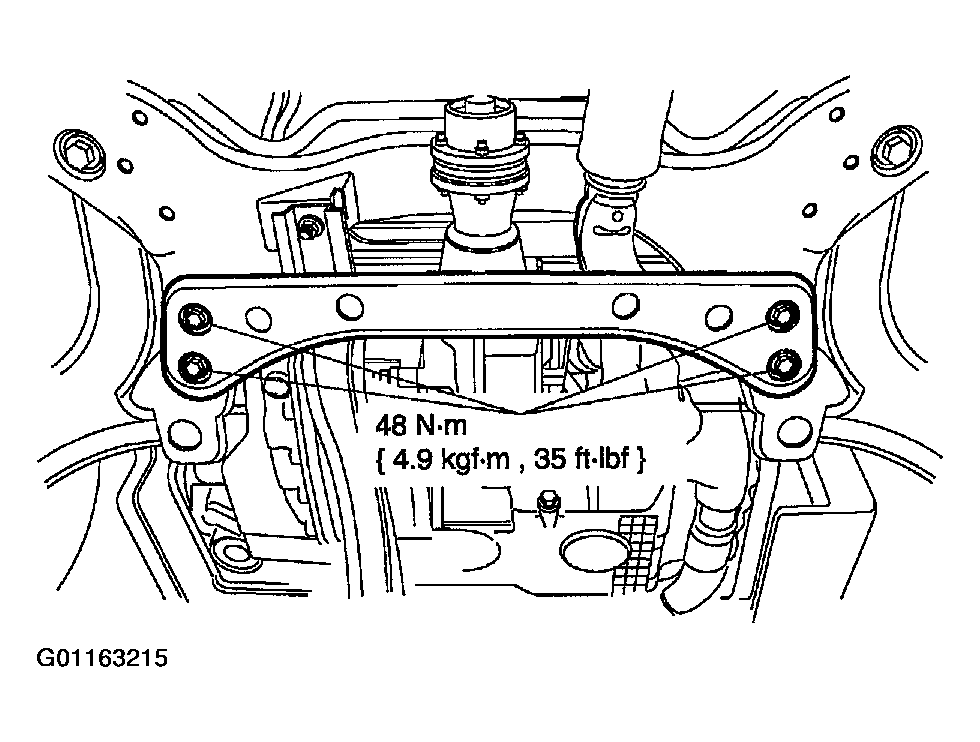

Install the cross brace.

Fig 5: Installing Cross Brace
Install the splash shield.

Fig 6: Installing Splash Shield
Lower the vehicle.
