Transaxle Range (Tr) Sensor: Installation

NOTE: Make sure the transaxle is in the NEUTRAL position.
  1. Install the transaxle range (TR) sensor and loosely install the bolts.

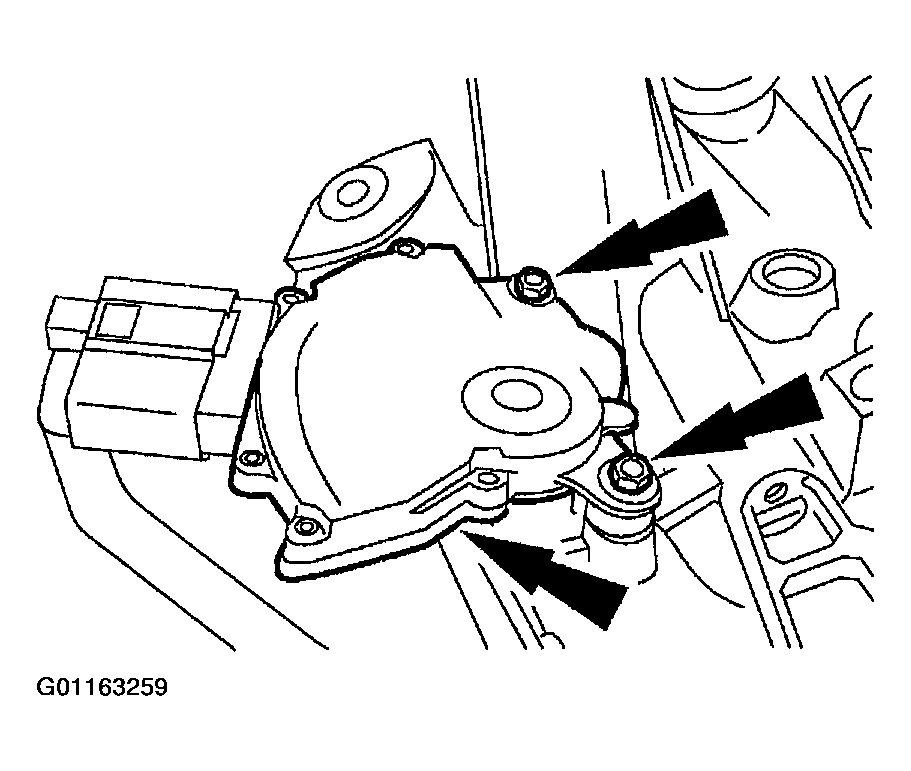

    Fig 1: Install The Transaxle Range Sensor
    G01163259
  2. Using the special tool, align the TR sensor and tighten the bolts.
    1. Connect the electrical connector.

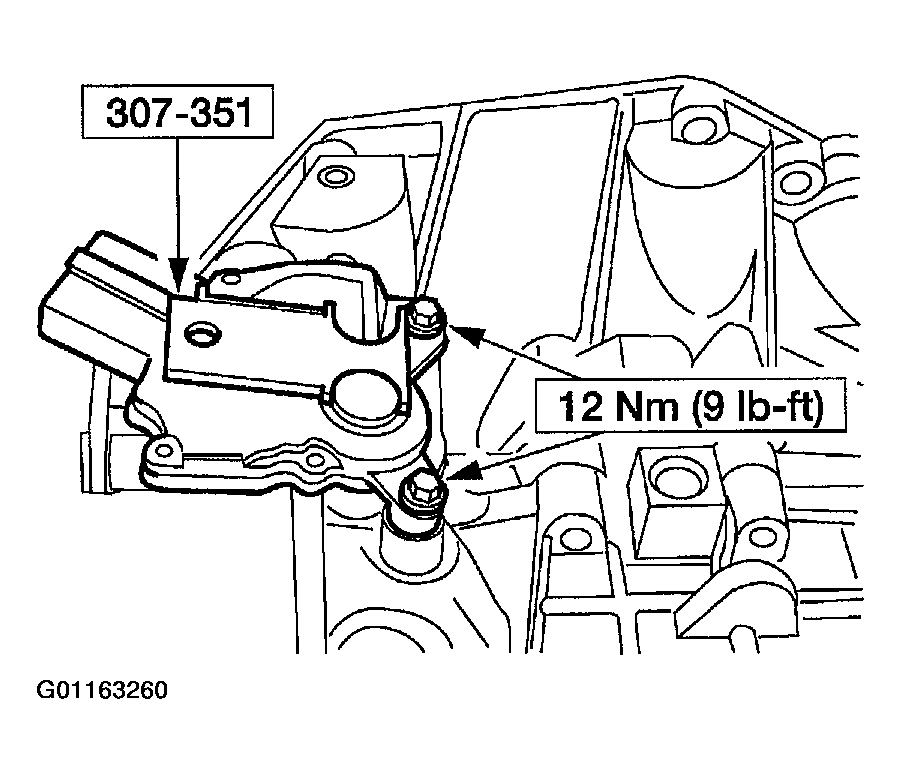

    Fig 2: Connecting The Electrical Connector
    G01163260
  3. Install the thermostat housing.
  4. Install the air cleaner assembly.

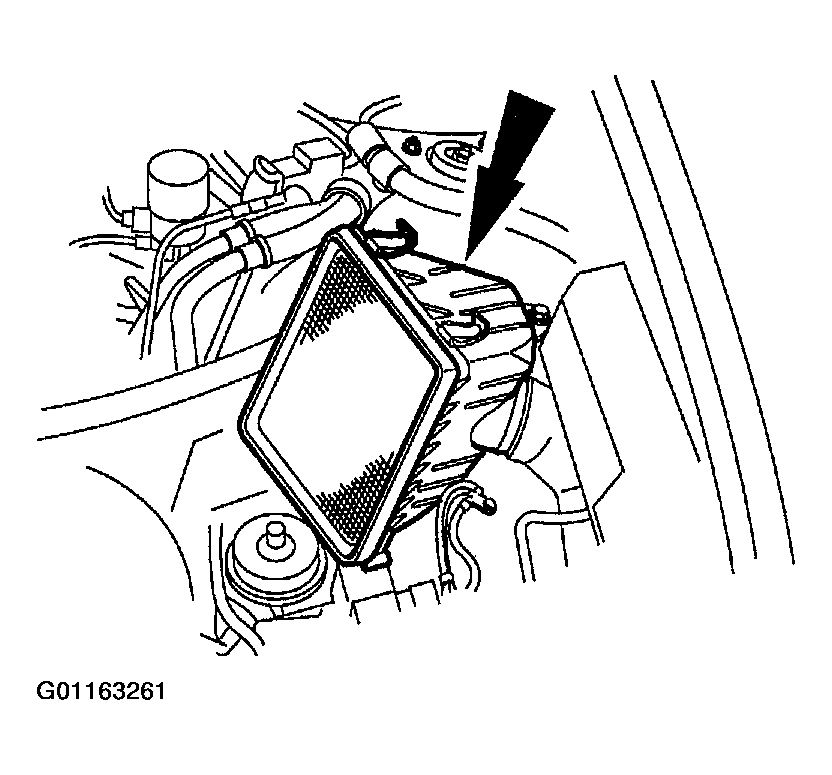

    Fig 3: Installing Air Cleaner Assembly
    G01163261
  5. Install the intake tube and air cleaner cover.

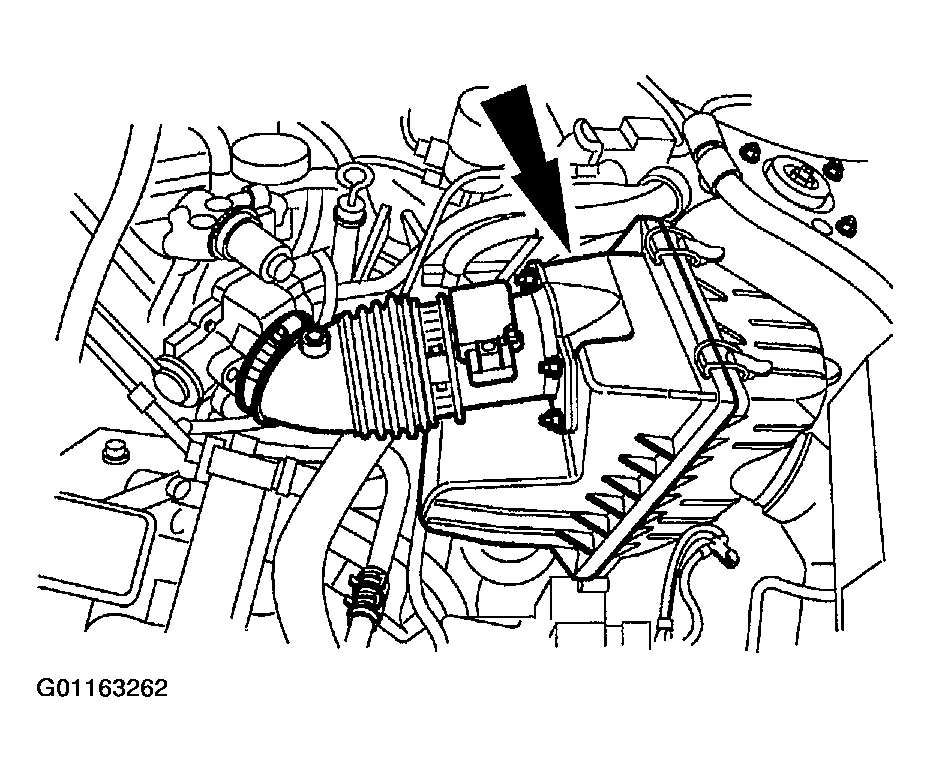

    Fig 4: Installing Intake Tube And Air Cleaner Cover
    G01163262
  6. Connect the breather tube and mass air flow (MAF) / intake air temperature (IAT) sensor.
    NOTE: Before installing the battery tray check the vent tube hose for any obstructions, kinks, or incorrect routing position.

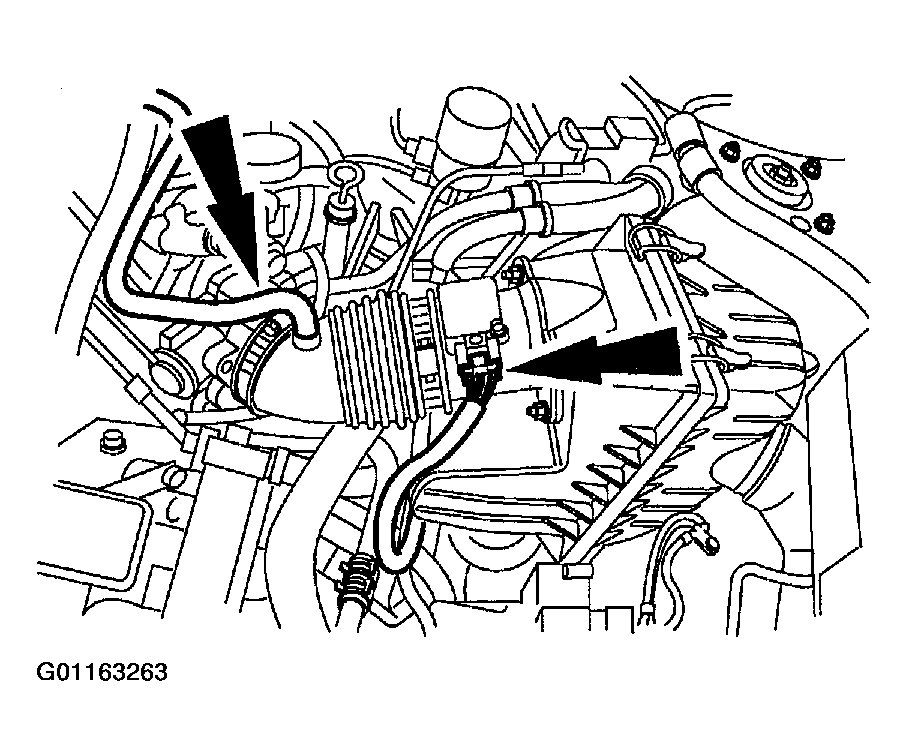

    Fig 5: Connecting Breather Tube And Mass Air Flow (MAF) / Intake Air Temperature (IAT) Sensor
    G01163263
  7. Install the battery and tray.
  8. Connect the battery cables.
  9. Check the correct operation with parking brake control engaged. The engine should start only in PARK or NEUTRAL. Backup lamps should be active only in the REVERSE position.
