Abs And TCS On-Board Diagnosis
›
PID/Data Monitor Table
PID/Data Monitor Table

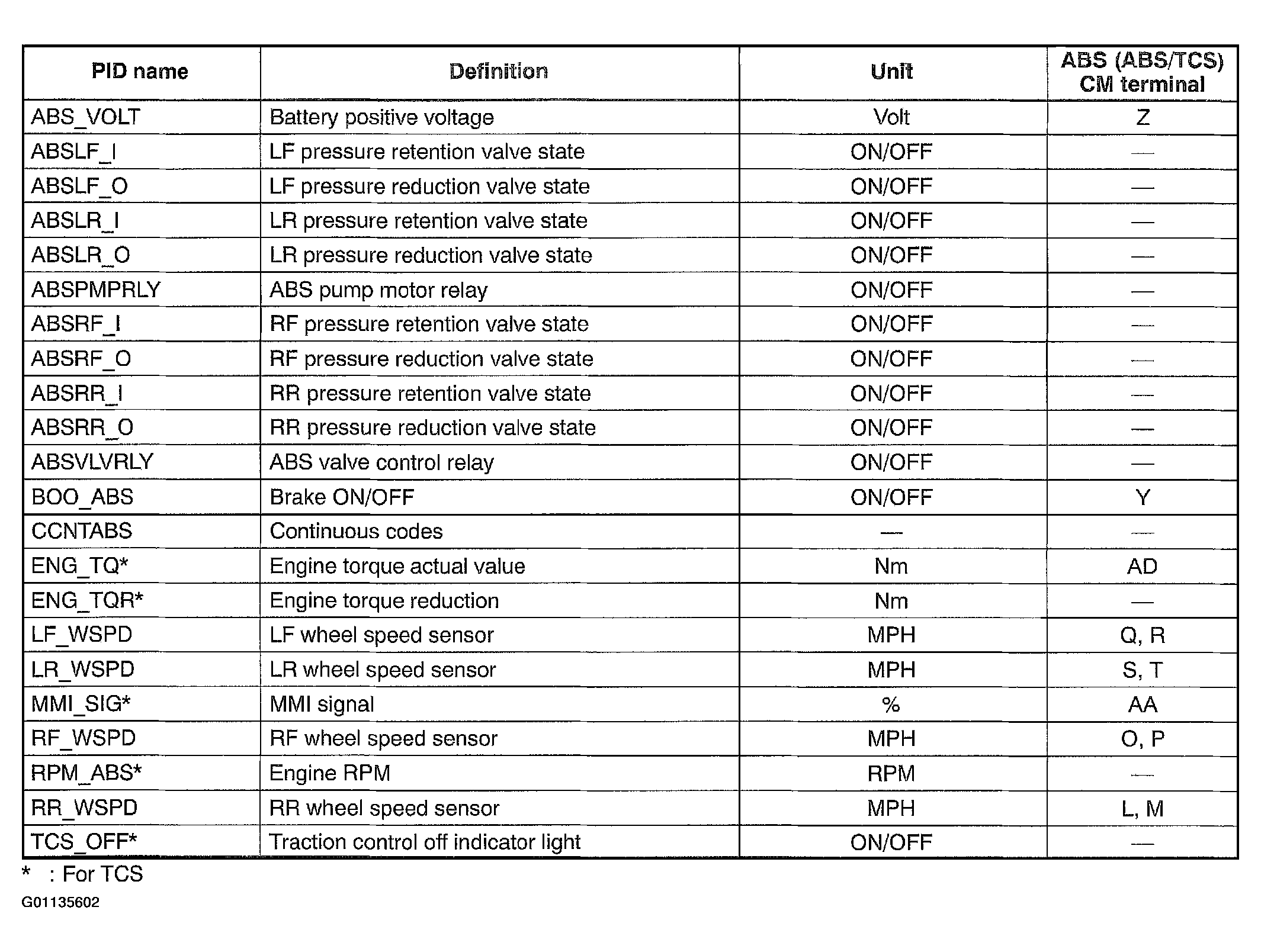

Fig 1: PID/DATA Monitor Table
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
