Function Diagram

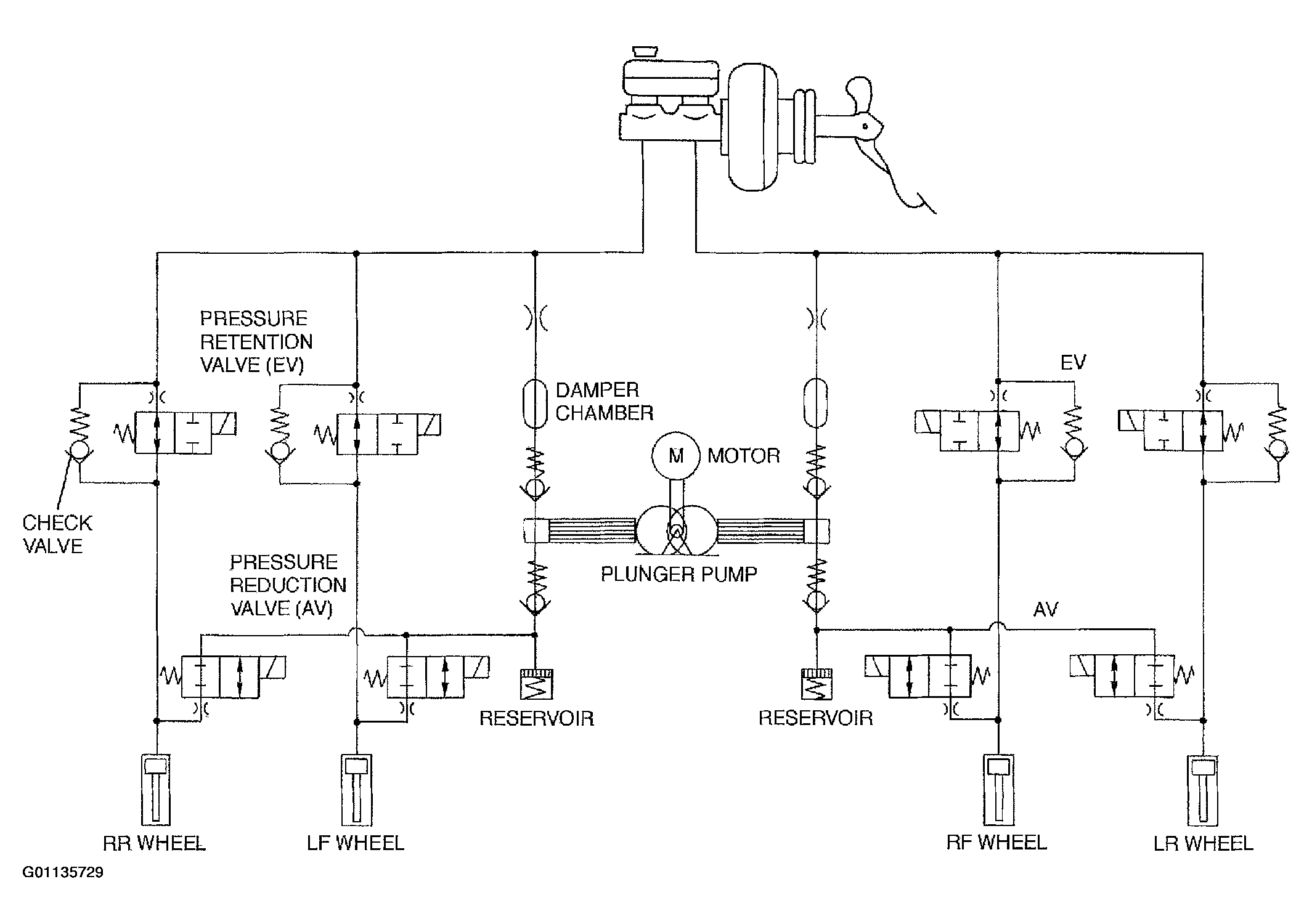

Fig 1: ABS Hydraulic Unit Description - Function Diagram

G01135729

Courtesy of MAZDA MOTORS CORP.

The hydraulic unit uses signals from the ABS control module to control pressure of the brake fluid acting on the wheels.
The main components of the hydraulic unit are: solenoid valves, reservoir, pump, pump motor and damper.
