Brakes Technical Data
Brakes Technical Data

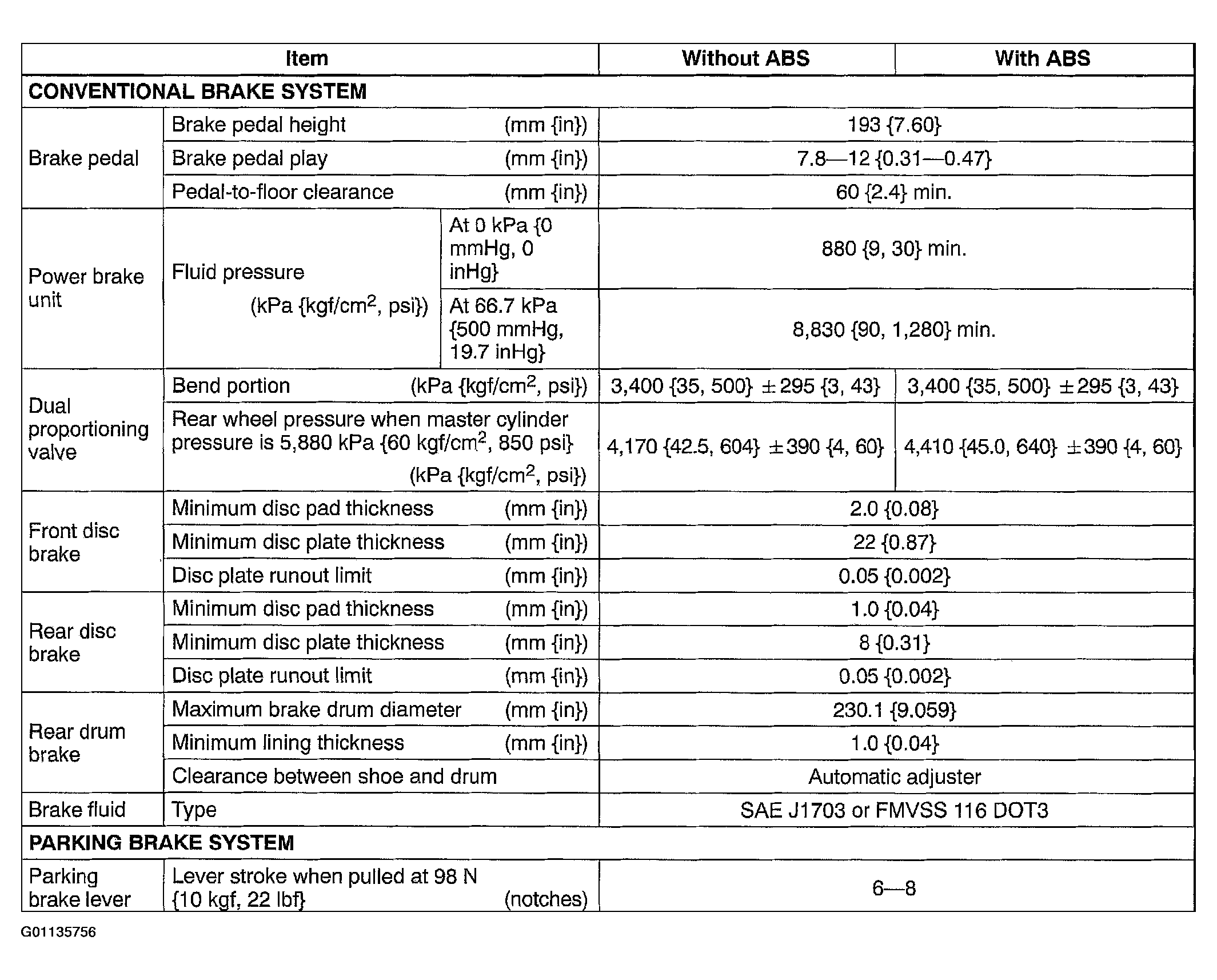

Fig 1: Brake Systems Technical Data
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
