DTC C1222: Abs Wheel Speed Sensor, Wheel Speed Mismatch

Diagnostic Procedure

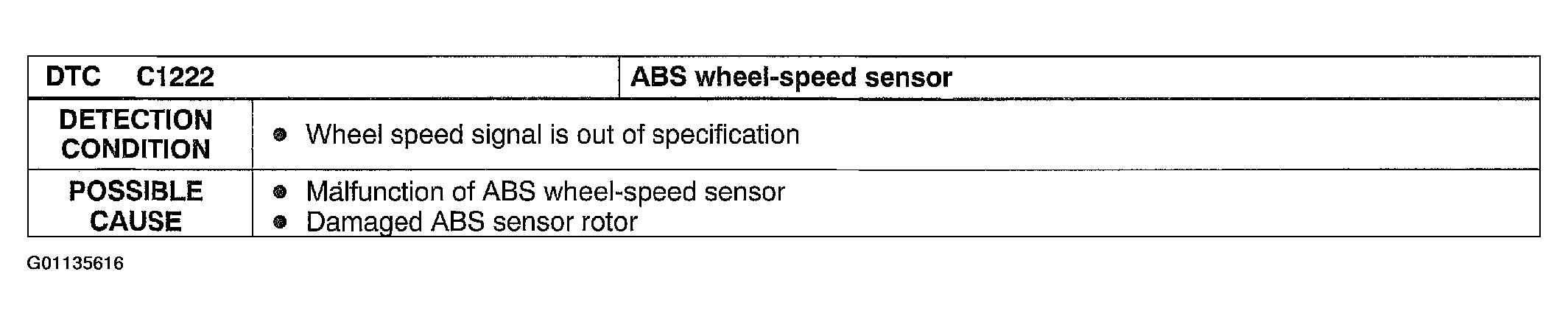

Fig 1: DTC C1222 Detection Condition & Possible Causes

Courtesy of MAZDA MOTORS CORP.

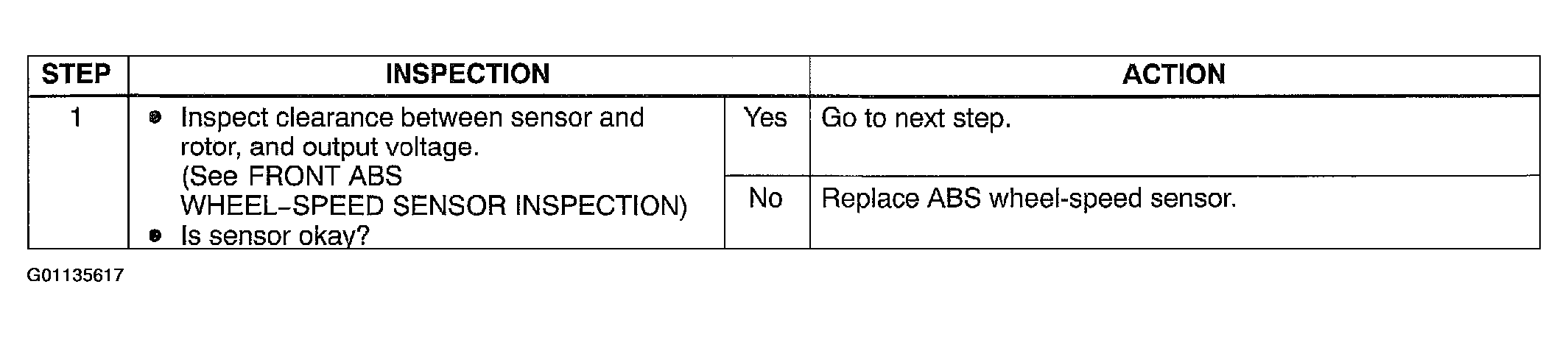

Fig 2: DTC C1222 Inspection & Action (Step 1)

Courtesy of MAZDA MOTORS CORP.

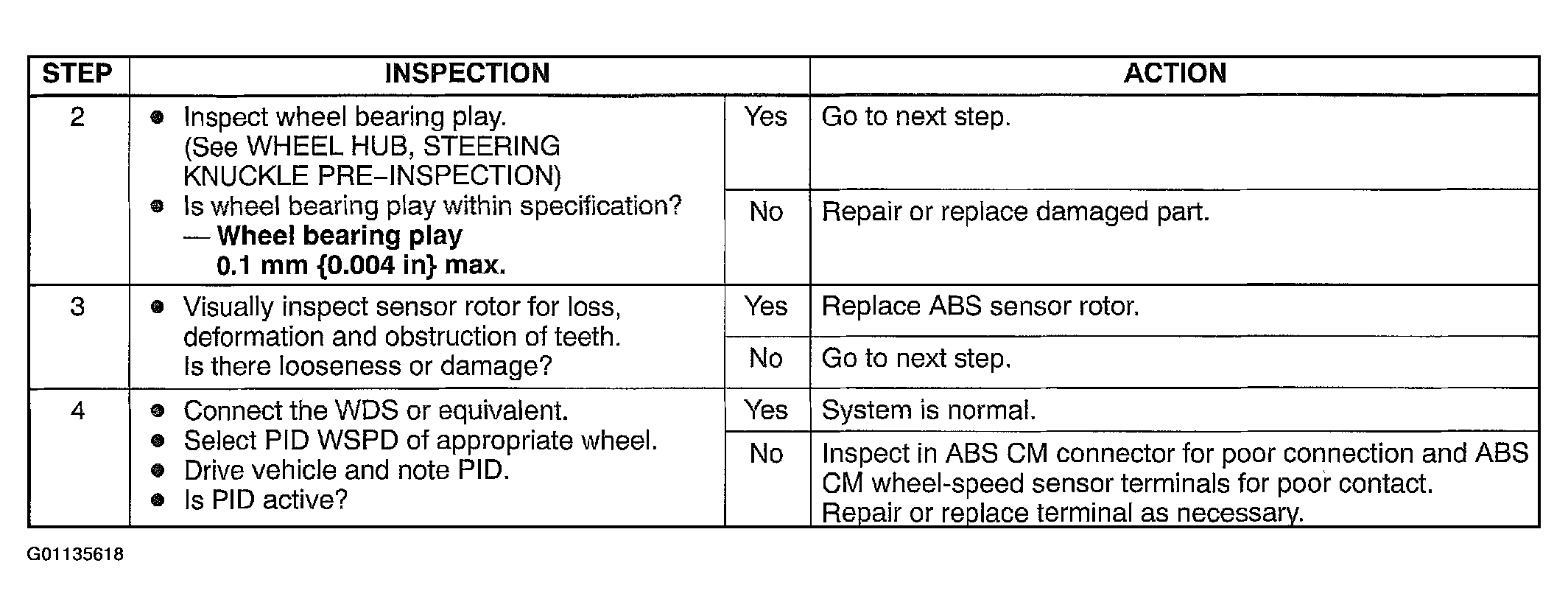

Fig 3: DTC C1222 Inspection & Action (Steps 2-4)

Courtesy of MAZDA MOTORS CORP.
