Dual Proportioning Valve Replacement: Notes

  1. Remove in the order indicated in Fig 1 .
  2. Install in the reverse order of removal.

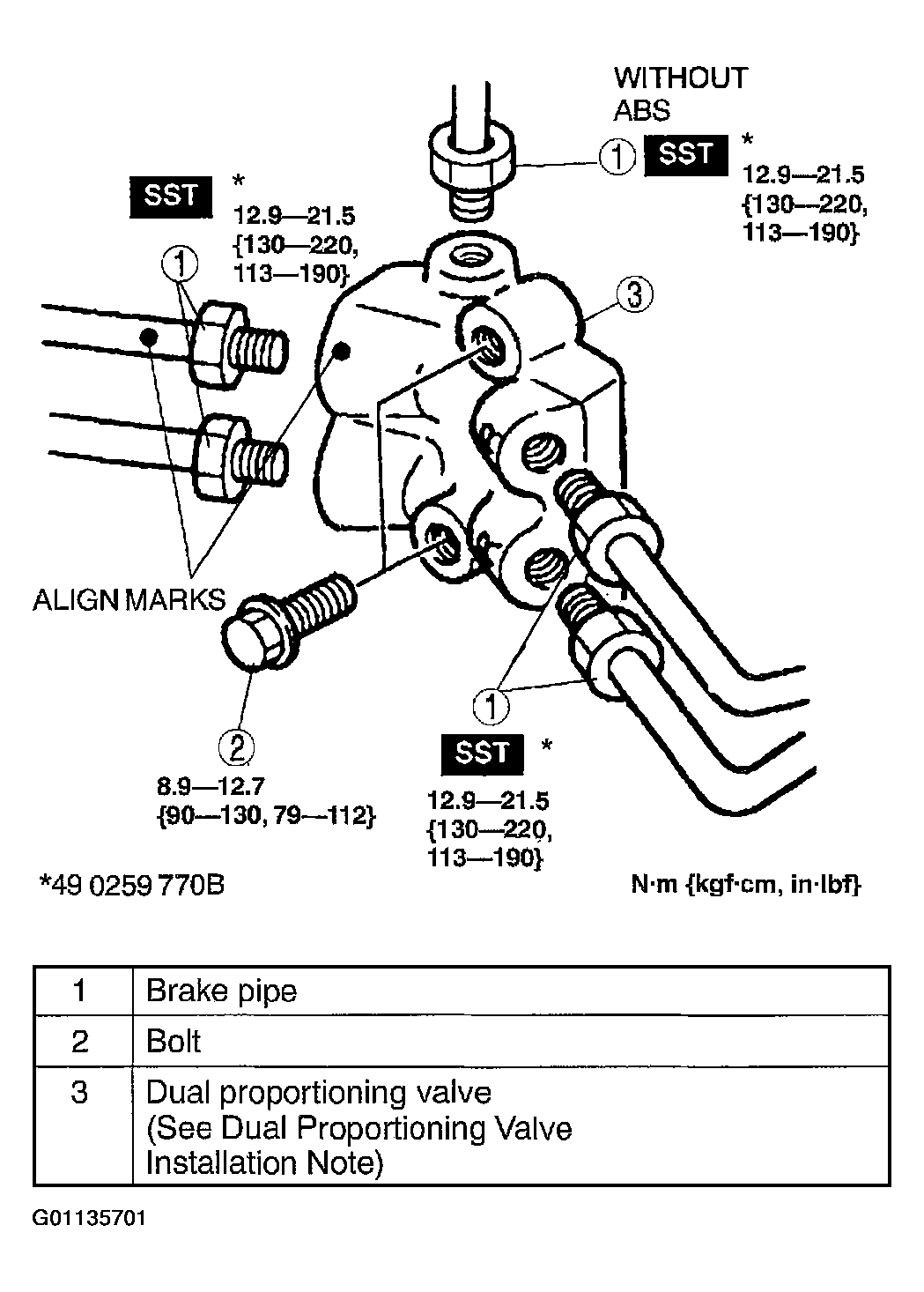

    Fig 1: Removing/Installing Dual Proportioning Valve
    G01135701Courtesy of MAZDA MOTORS CORP.
