Front Abs Wheel-Speed Sensor Removal/Installation

  1. Remove in the order indicated in Fig 1 .
  2. Install in the reverse order of removal.

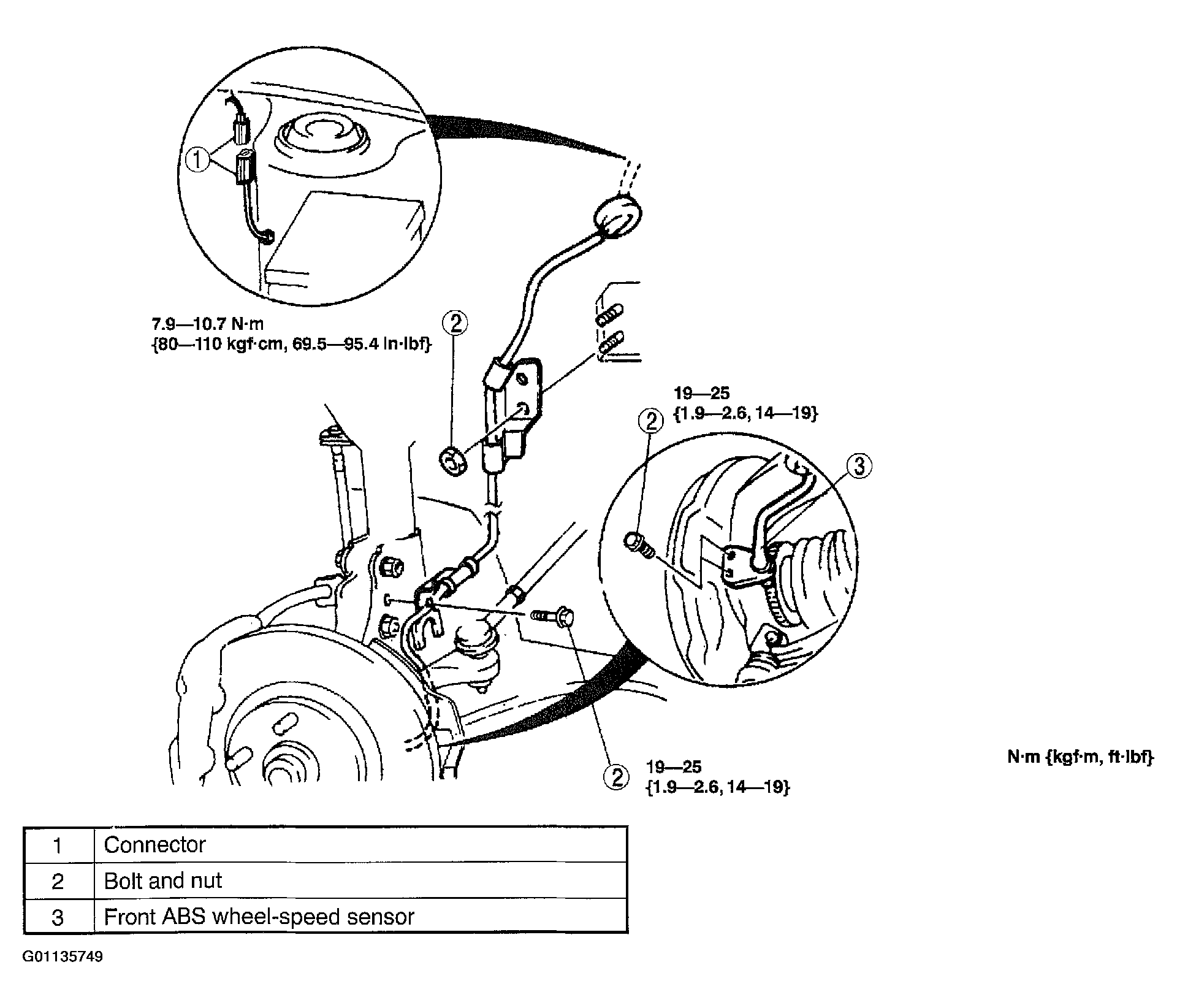

    Fig 1: Removing/Installing Front ABS Wheel-Speed Sensor
    G01135749Courtesy of MAZDA MOTORS CORP.
