Disc Pad Installation Note

  1. Push the piston fully inward by using the SST.
  2. Install the disc pad.

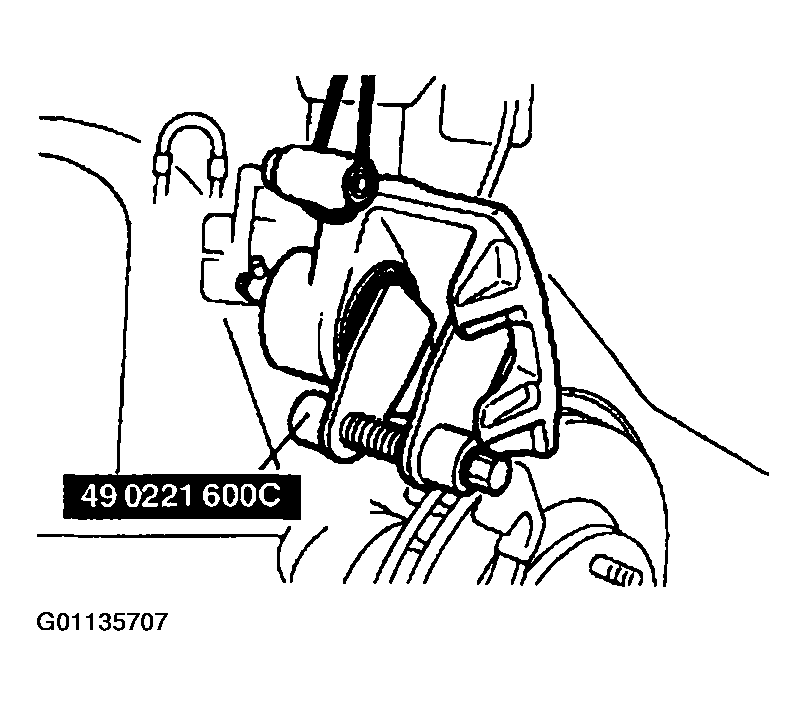

    Fig 1: Installing The SST
    G01135707Courtesy of MAZDA MOTORS CORP.
