Front Caliper Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in Fig 1 .
  2. Assemble in the reverse order of disassembly.

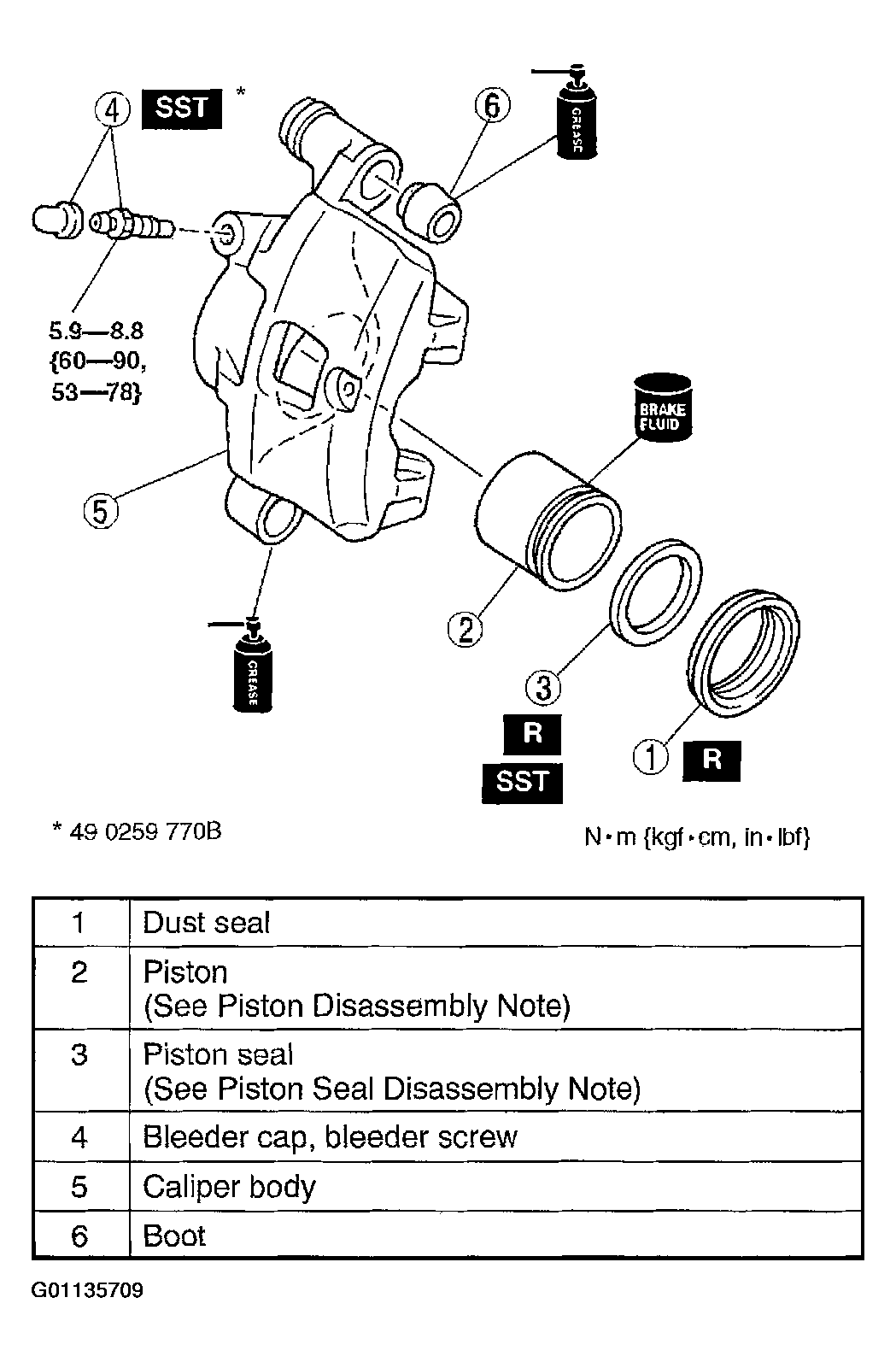

    Fig 1: Disassembling/Assembling Front Caliper
    G01135709Courtesy of MAZDA MOTORS CORP.
