Master Cylinder Removal/Installation: Notes

  1. Remove in the order indicated in Fig 1 .
  2. Install in the reverse order of removal.

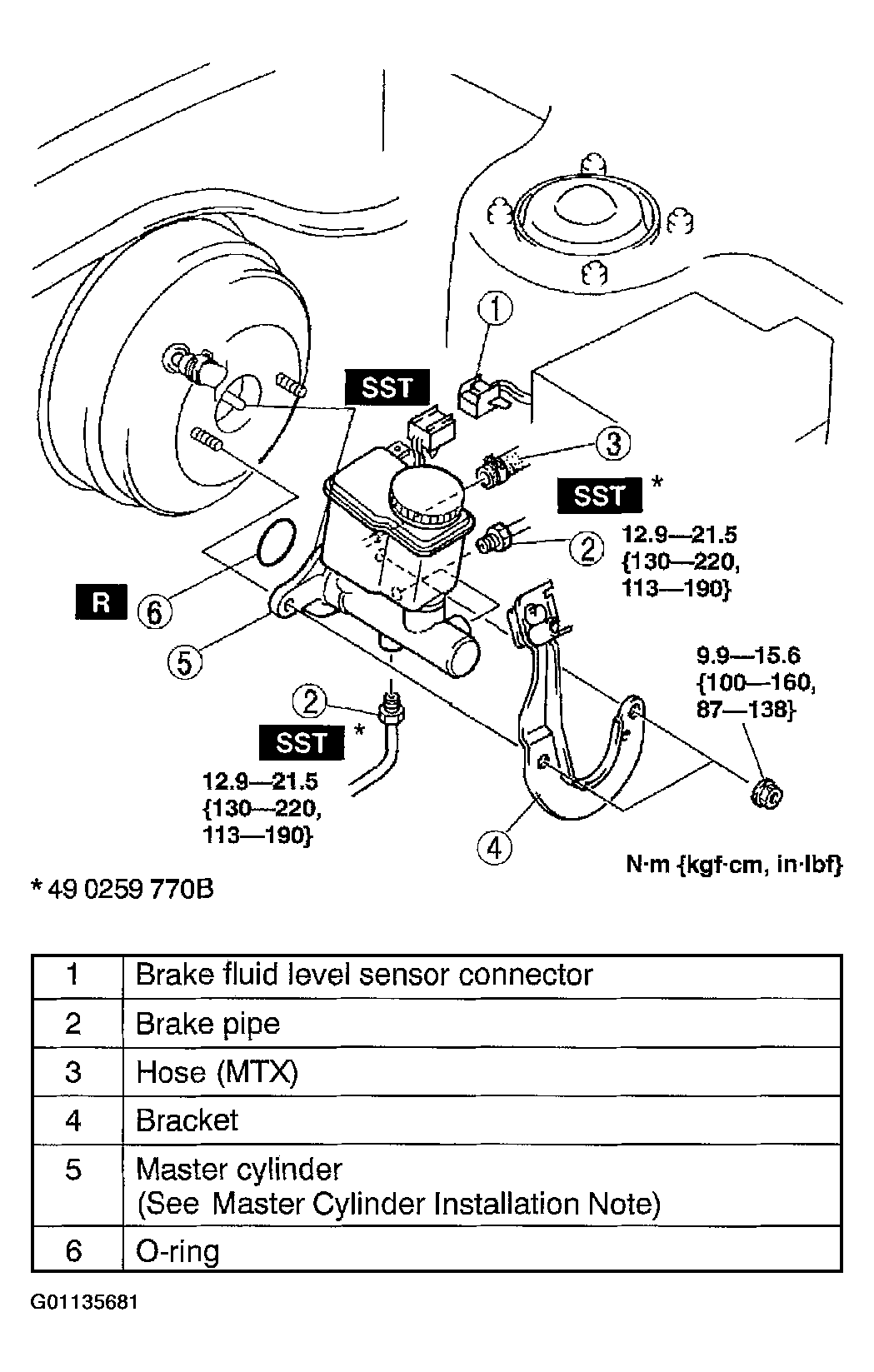

    Fig 1: Removing/Installing Master Cylinder
    G01135681Courtesy of MAZDA MOTORS CORP.
