Rear Abs Wheel-Speed Sensor Removal/Installation

  1. Remove the trunk compartment covering.
  2. Remove in the order indicated in Fig 1 .
  3. Install in the reverse order of removal.

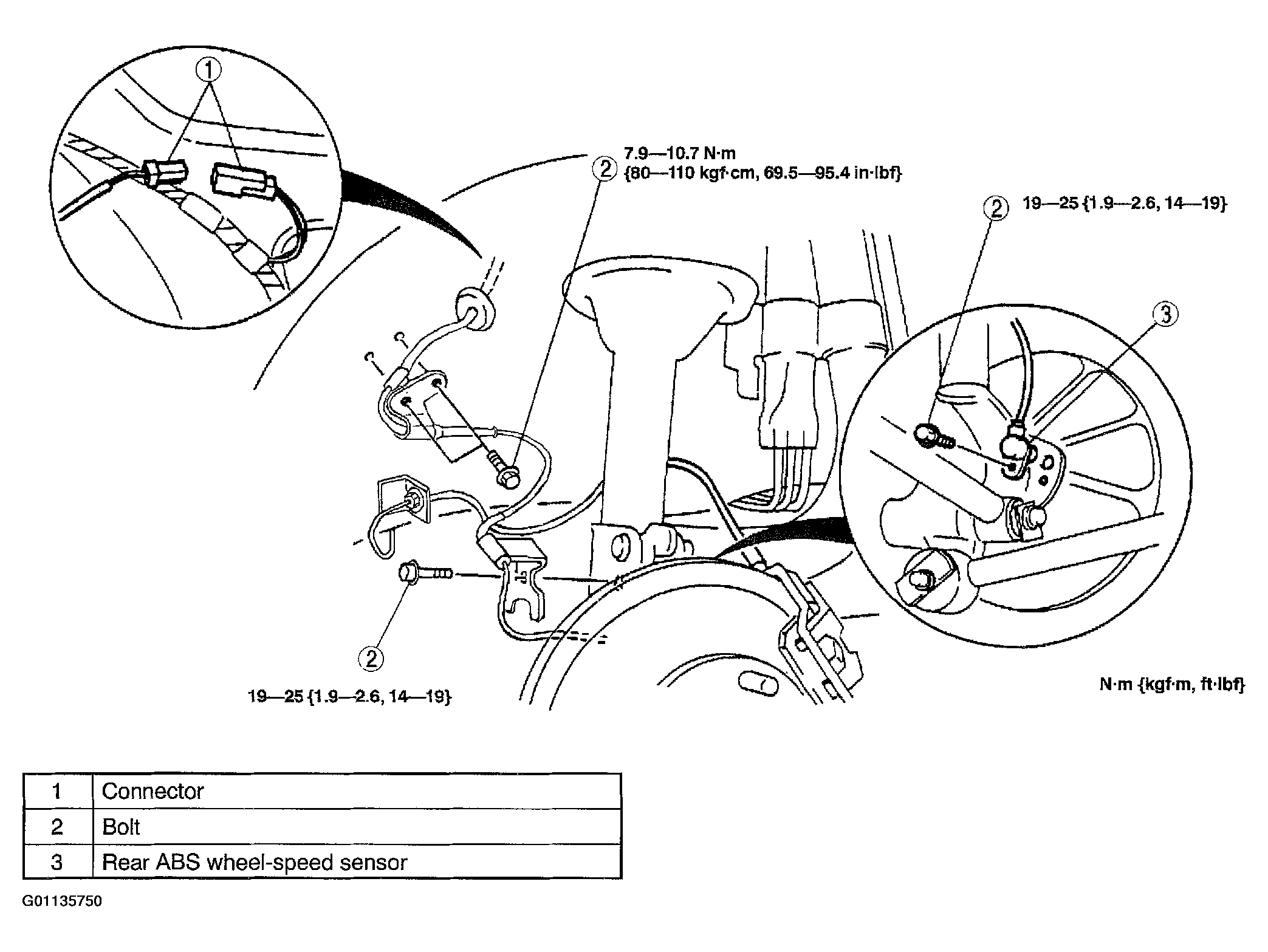

    Fig 1: Removing/Installing Rear ABS Wheel-Speed Sensor
    G01135750Courtesy of MAZDA MOTORS CORP.
