Wheel Cylinder Disassembly/Assembly
CAUTION:
- Replace the wheel cylinder assembly if a problem is found.

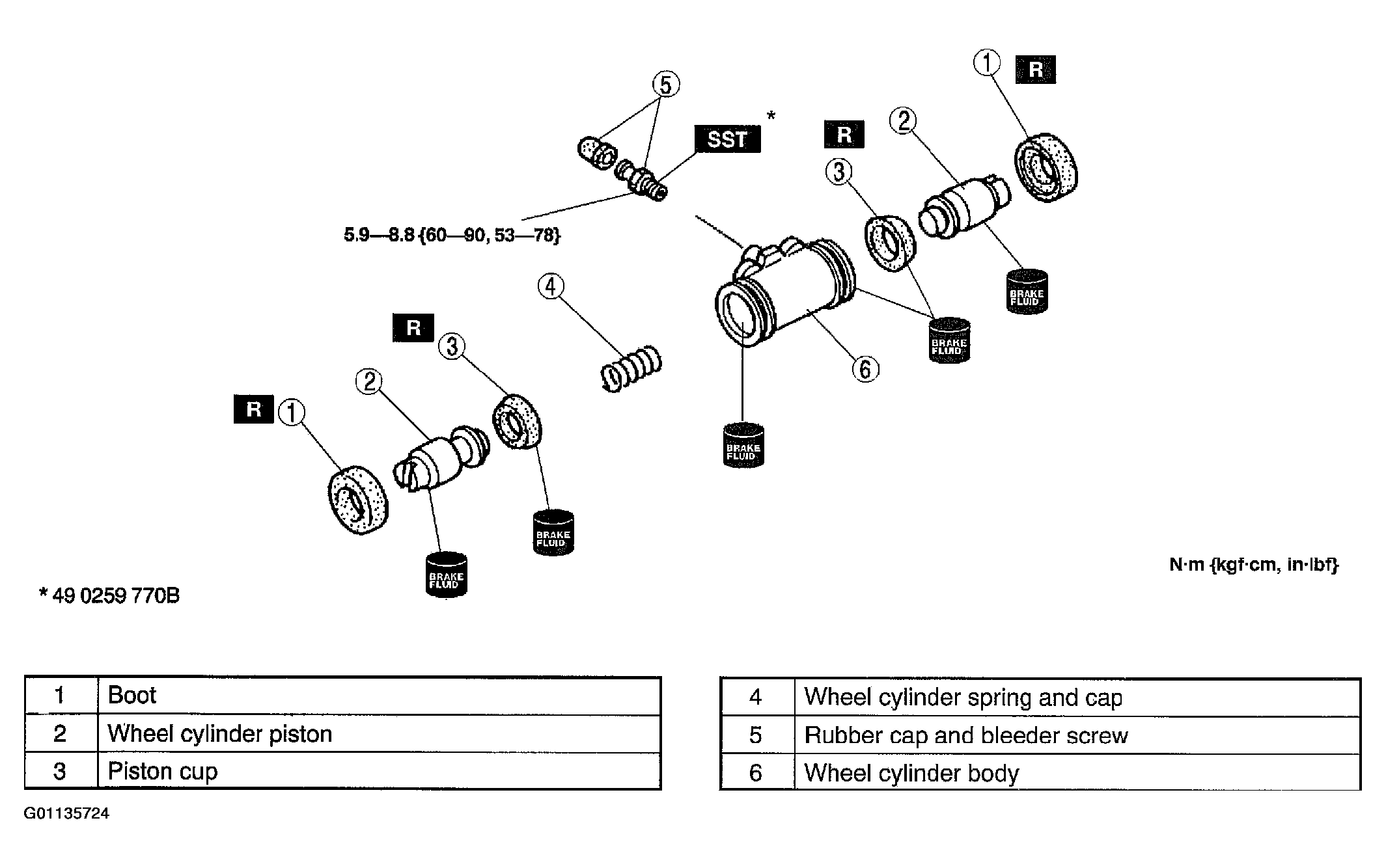

- Disassemble in the order indicated in Fig 1 .
- Assemble in the reverse order of disassembly.
