Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Component Location |

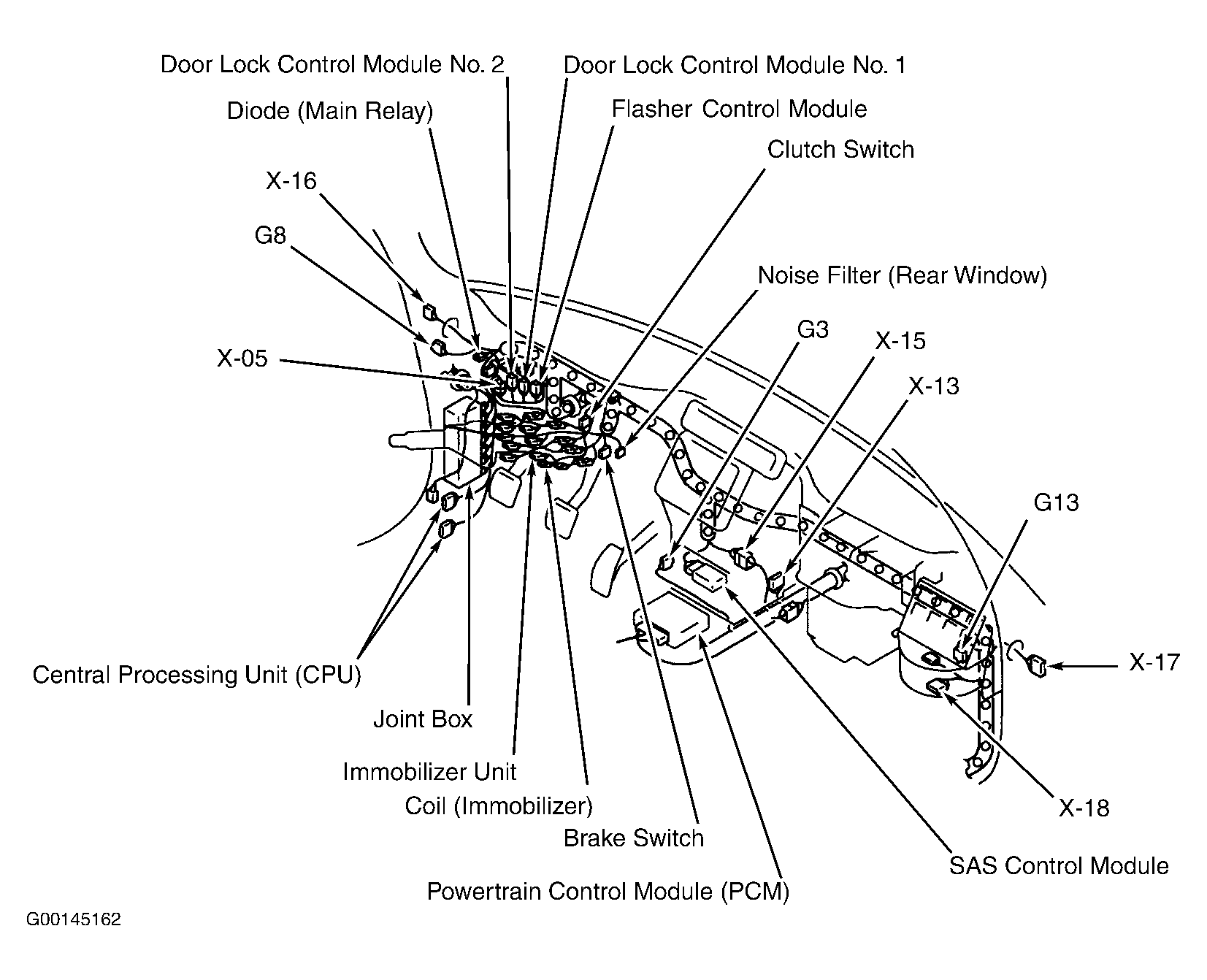

| Joint Box |
Behind left side of dash. See Figure
. |

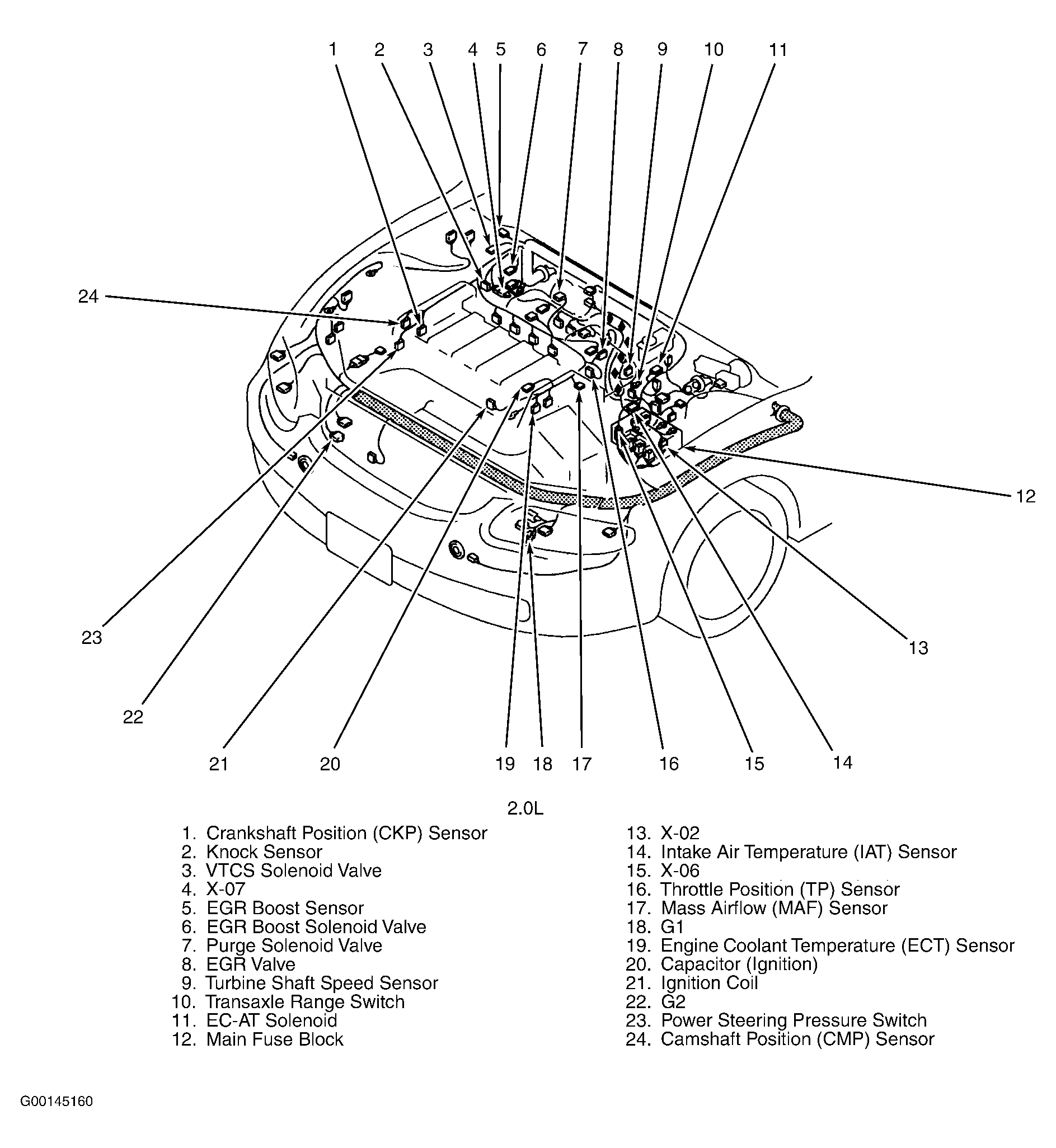

| Main Fuse Block (2.0L) |
On left front inner fender panel, in engine compartment. See Figure
. |

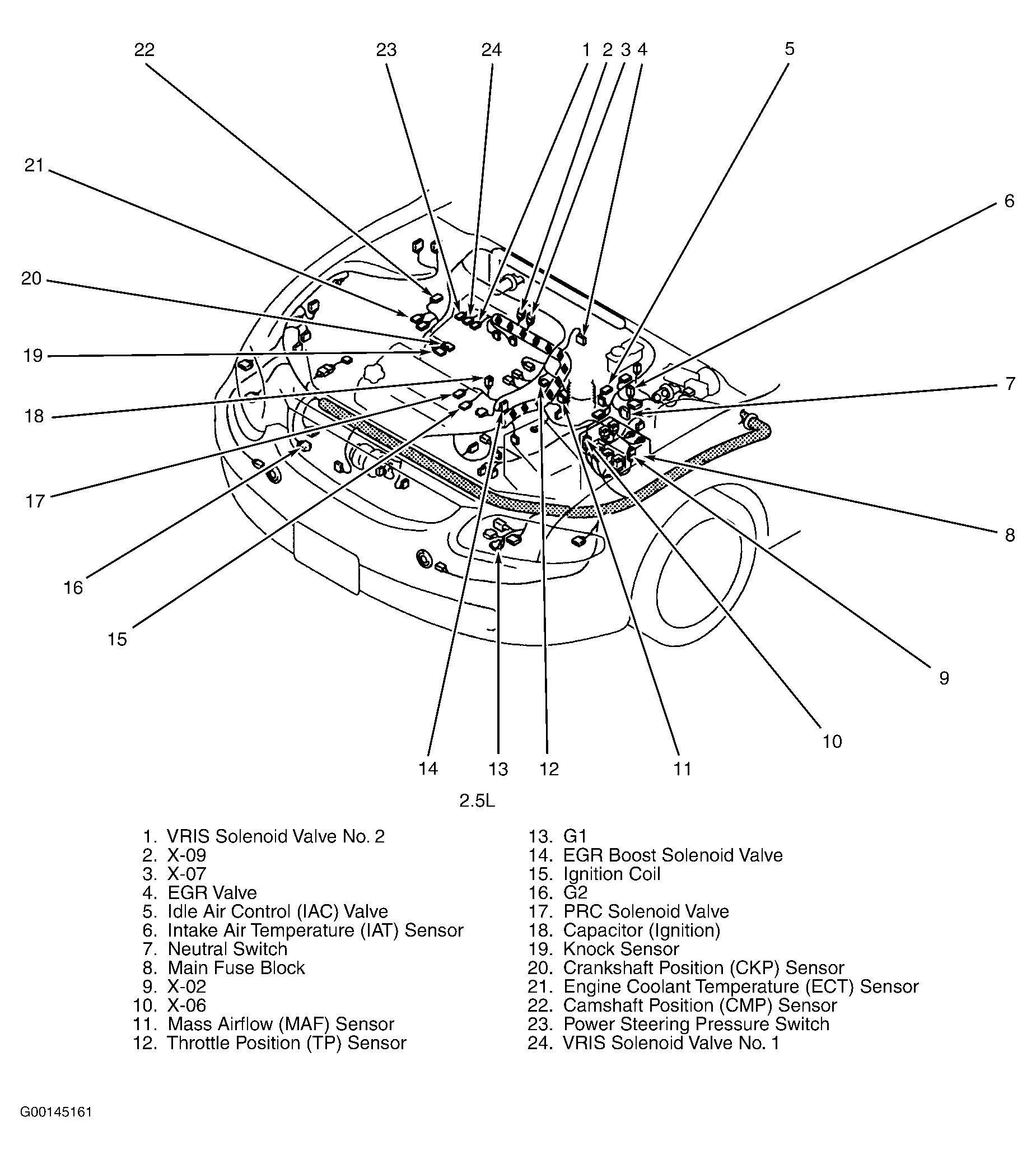

| Main Fuse Block (2.5L) |
On left front inner fender panel, in engine compartment. See Figure
. |
