Oil Pump Disassembly/Assembly: Notes

  1. Remove the oil pump. See OIL PUMP REMOVAL/INSTALLATION  .
  2. Disassemble in the order indicated in the table.
  3. Assemble in the reverse order of disassembly.

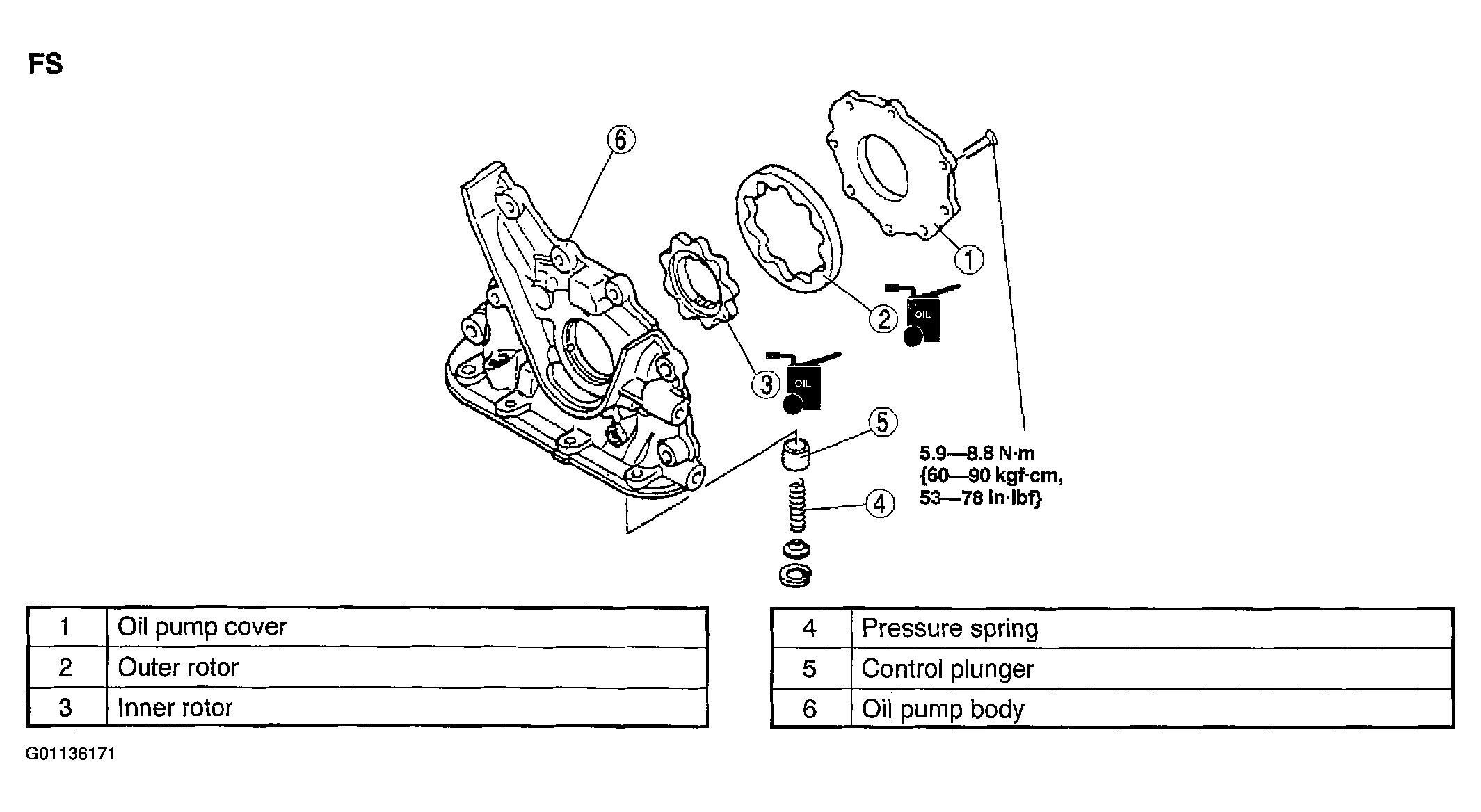

    Fig 1: Identifying Oil Pump Disassembly/Assembly (2.0L)
    G01136171Courtesy of MAZDA MOTORS CORP.

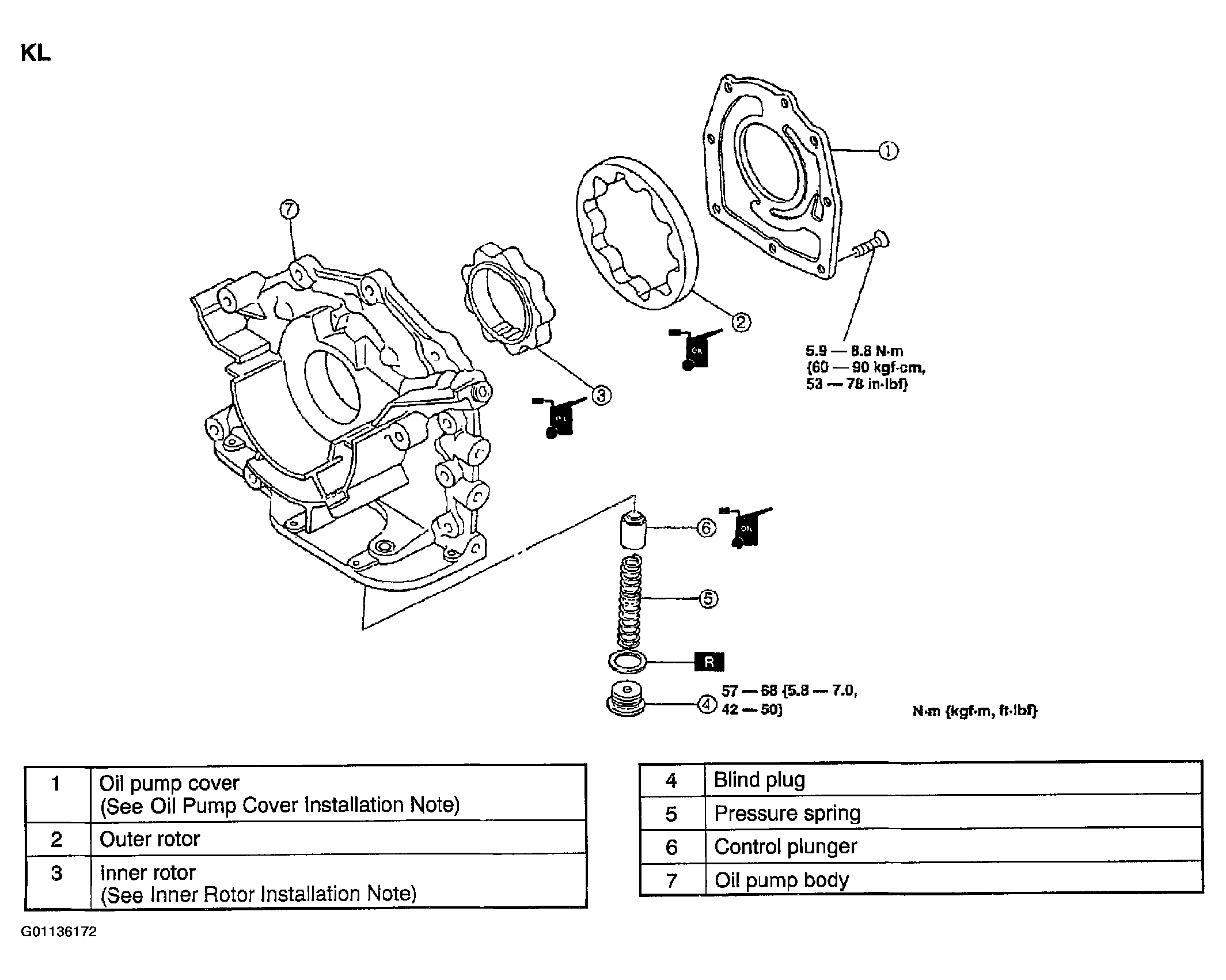

    Fig 2: Identifying Oil Pump Disassembly/Assembly (2.5L)
    G01136172Courtesy of MAZDA MOTORS CORP.
