Front Wheel Alignment: Specifications

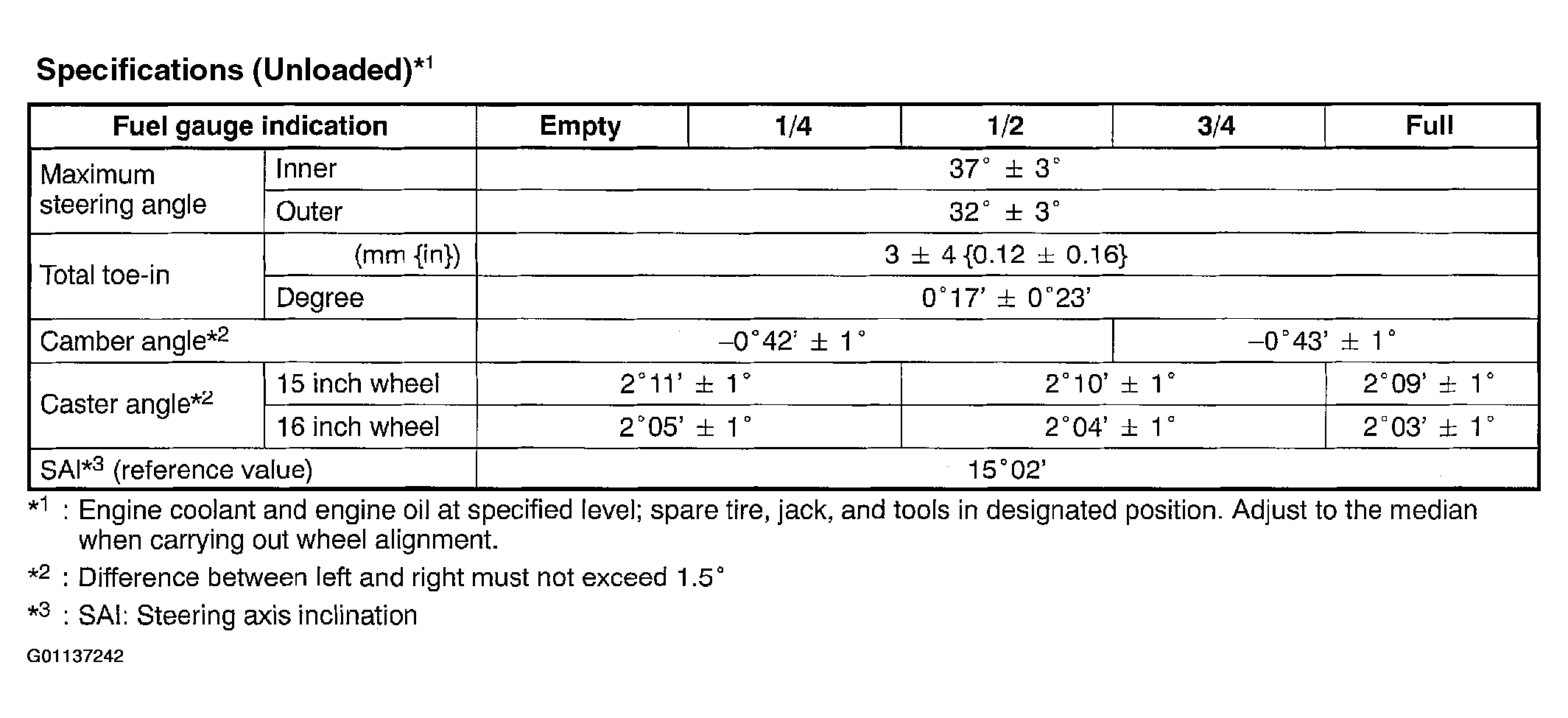

Fig 1: Front Wheel Alignment Specifications (Unloaded)
G01137242Courtesy of MAZDA MOTORS CORP.
