Home › Mazda › 2002 › 626 ES, Automatic › Repair and Diagnosis › Suspension › Wheel Alignment › Suspension - Wheel Alignment › Rear Wheel Alignment › Specifications

Rear Wheel Alignment: Specifications

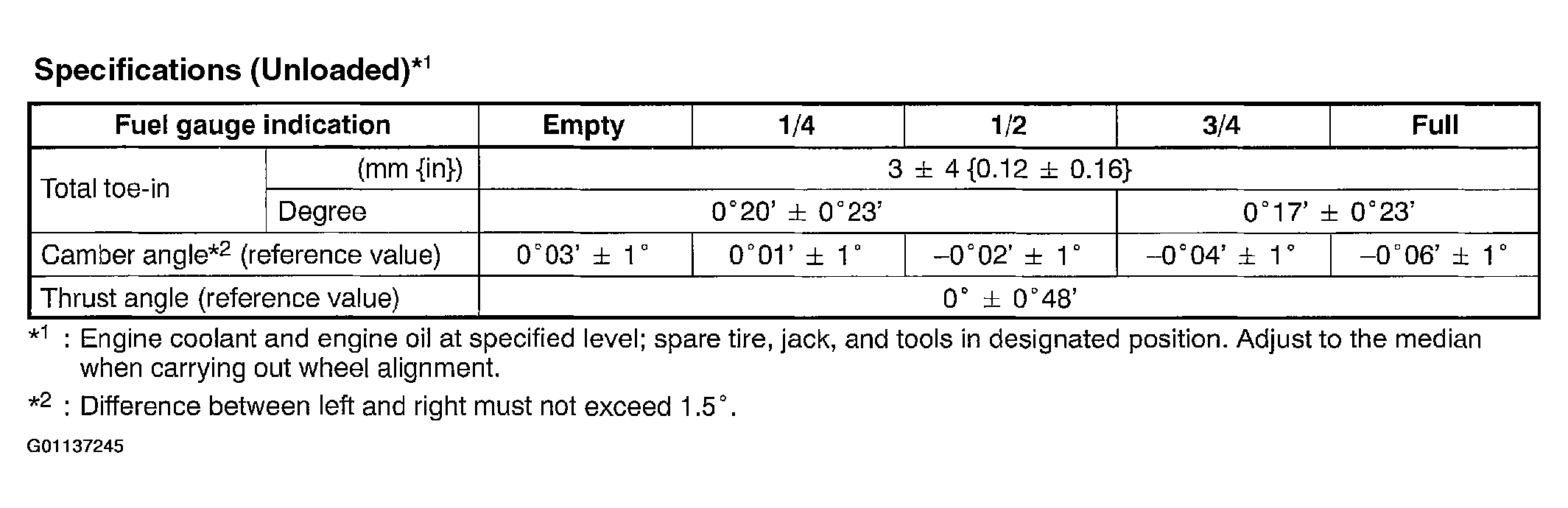

Fig 1: Rear Wheel Alignment Specifications (Unloaded)
G01137245Courtesy of MAZDA MOTORS CORP.
