Power Outside Mirror Glass Installation

  1. Clean and degrease the adhesion surface of the mirror glass.
  2. Warm up the frame and the mirror glass using a hot air blower.
  3. Remove the paper backing from the double-sided adhesive tape on the back of the mirror glass.
  4. Insert the mirror glass into the frame, then press lightly on the glass to secure it.

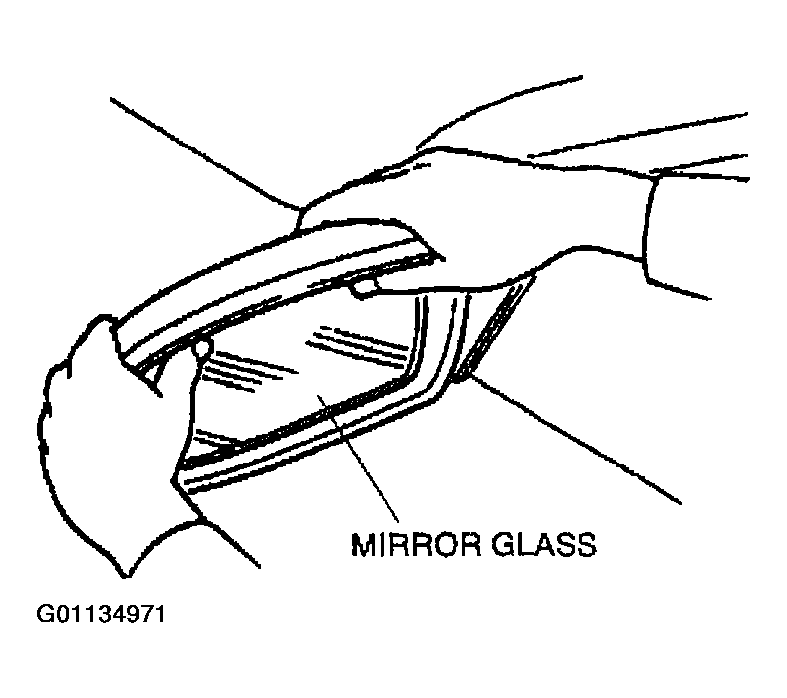

    Fig 1: Installing Glass Of Outside Power Mirror
    G01134971Courtesy of MAZDA MOTORS CORP.
