DTC B1484: Brake Switch Harness

Diagnostic Procedure

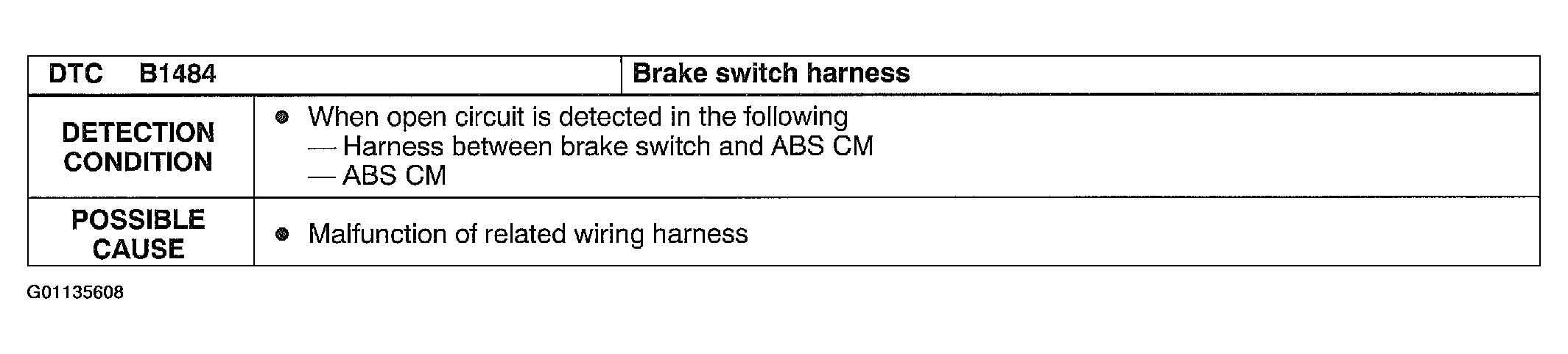

Fig 1: DTC B1484 Detection Conditions & Possible Cause

Courtesy of MAZDA MOTORS CORP.

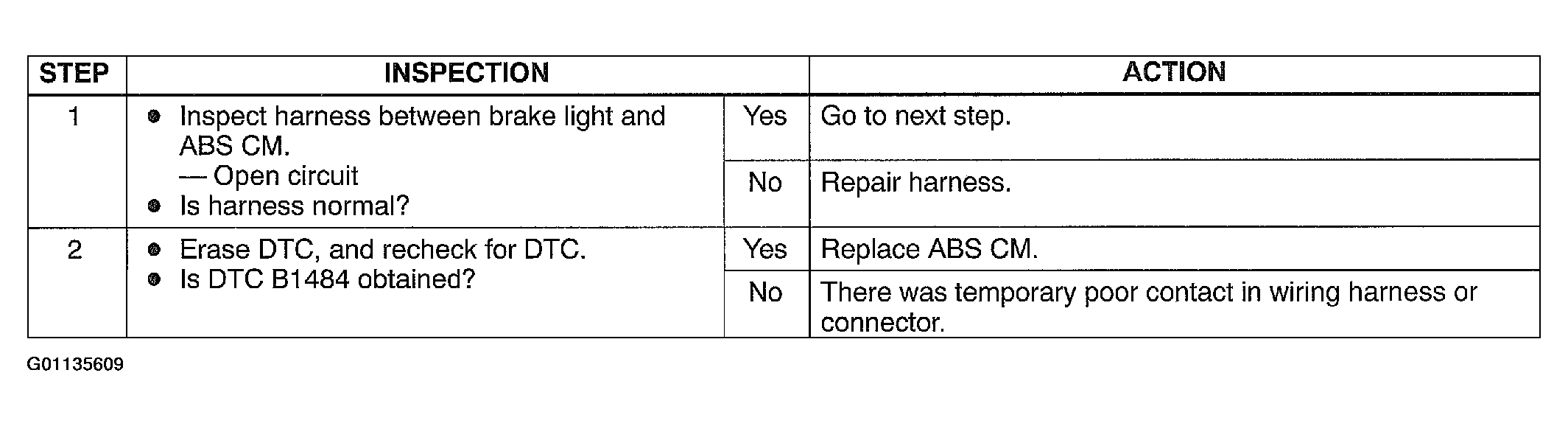

Fig 2: DTC B1484 Inspection & Action

Courtesy of MAZDA MOTORS CORP.
