DTC C1266: Valve Relay Power Supply

Diagnostic Procedure

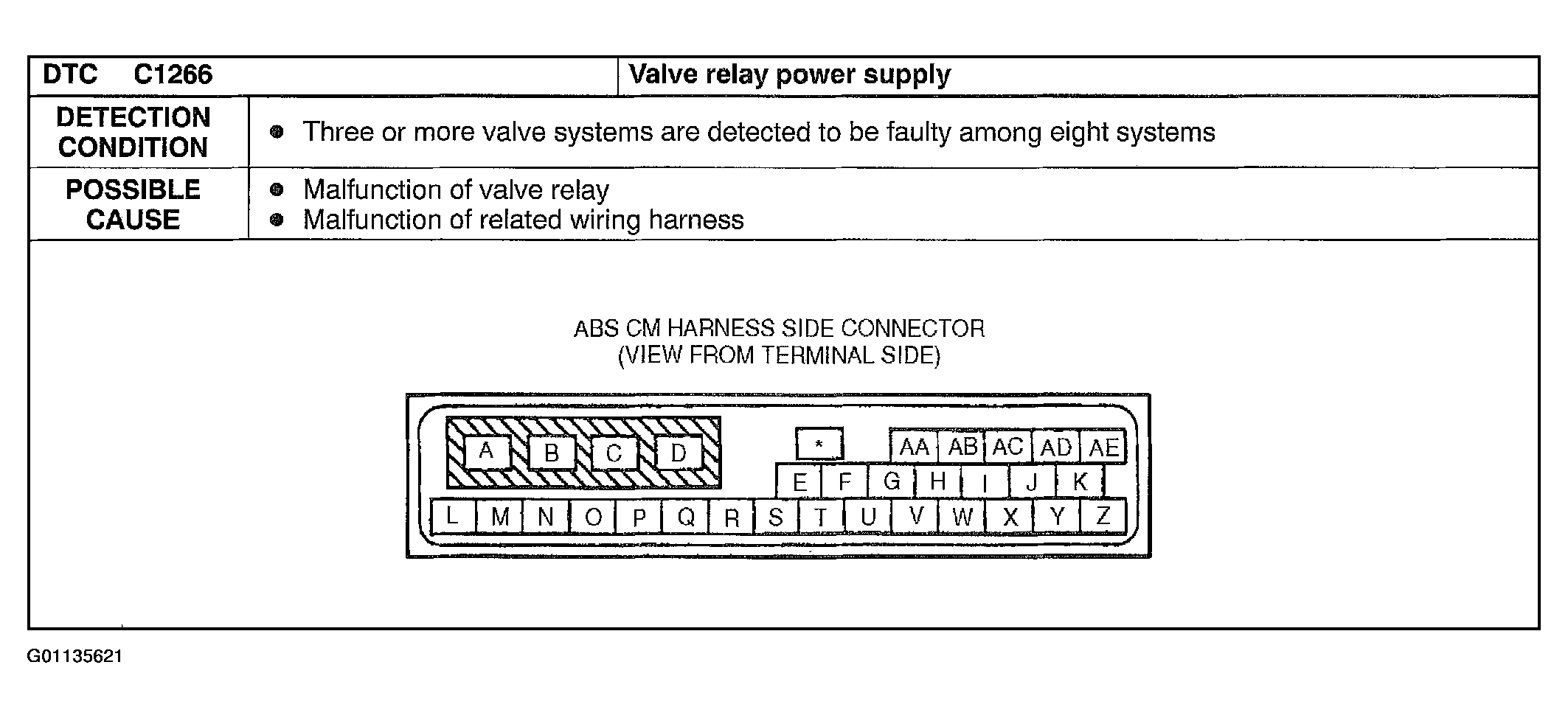

Fig 1: DTC C1266 Detection Condition & Possible Causes

Courtesy of MAZDA MOTORS CORP.

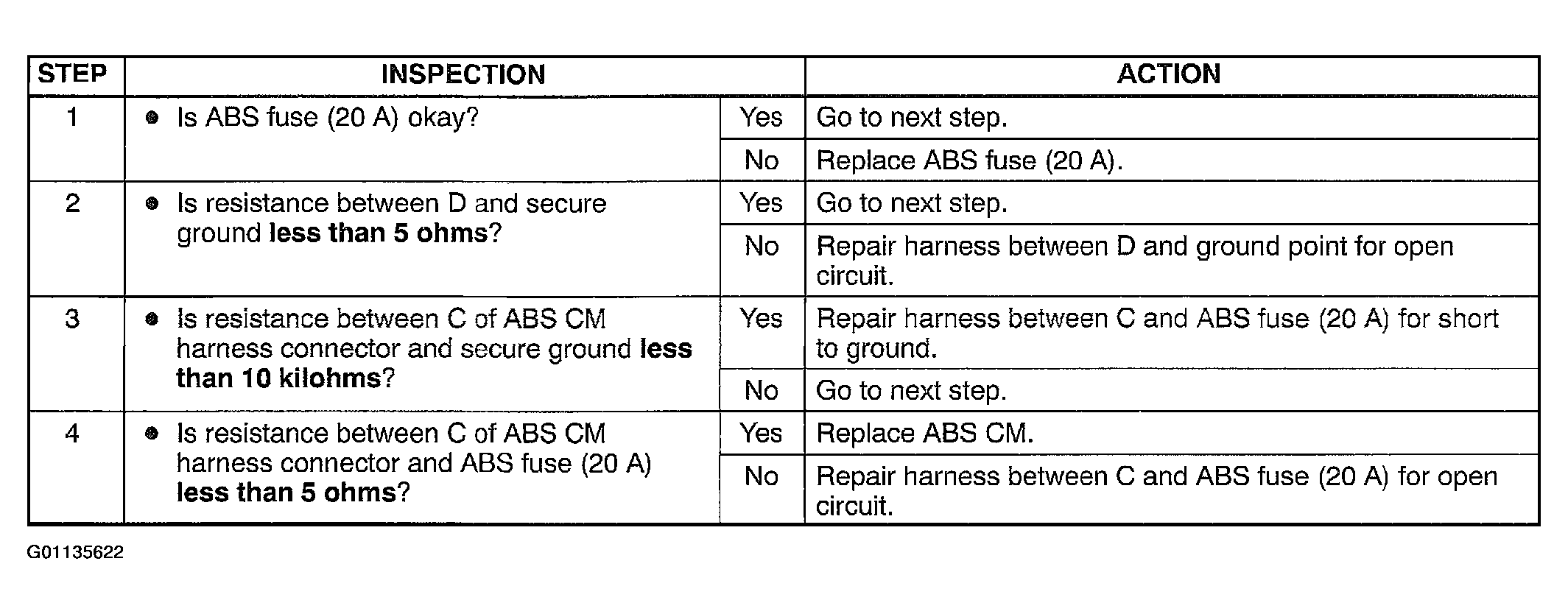

Fig 2: DTC C1266 Inspection & Action

Courtesy of MAZDA MOTORS CORP.
