Immobilizer Unit Connector End View

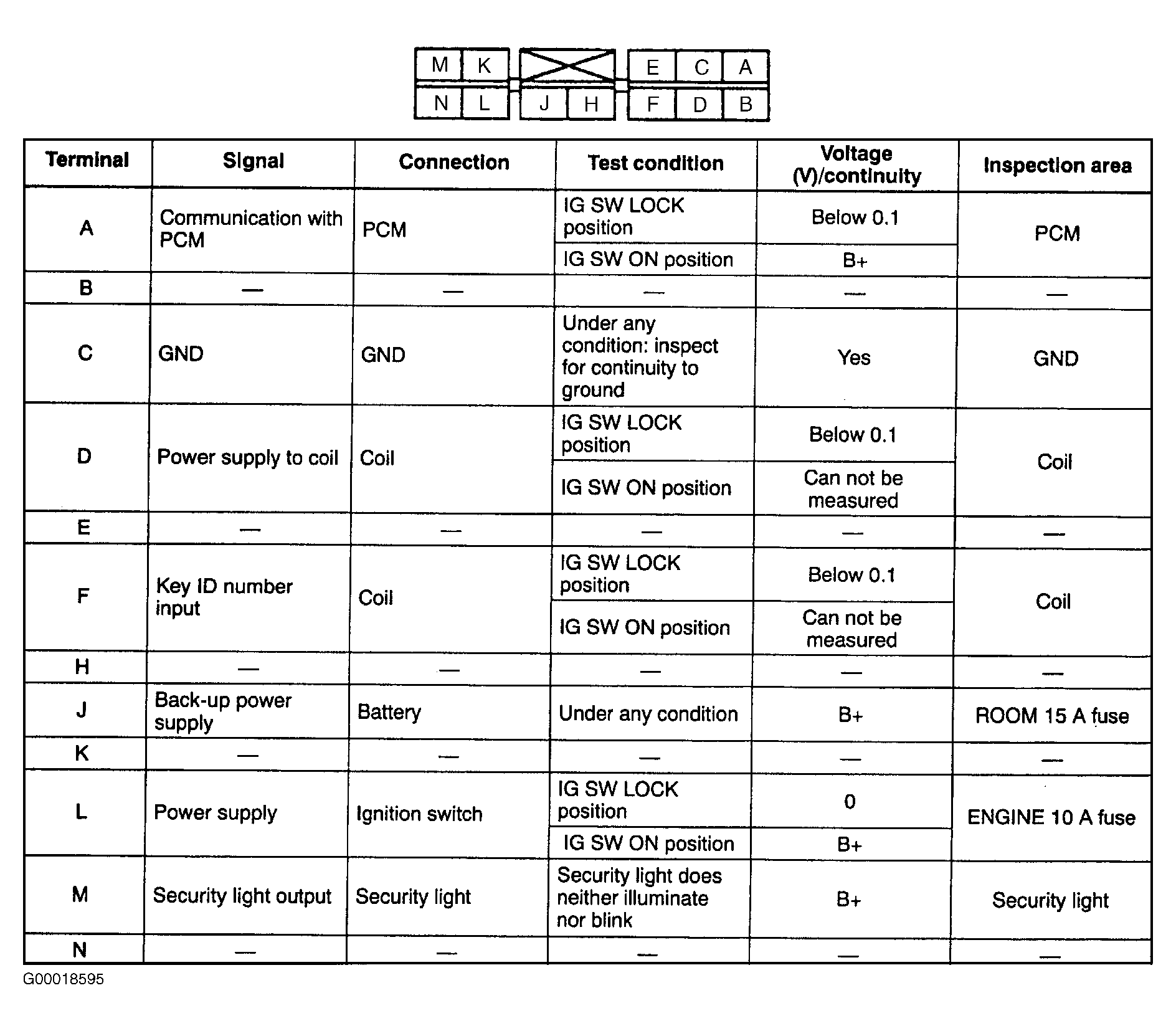

Fig 1: Immobilizer Unit Connector End View
G00018595Courtesy of MAZDA MOTORS CORP.


Fig 1: Immobilizer Unit Connector End View
G00020985Courtesy of MAZDA MOTORS CORP.
