TR Sensor Connector End View

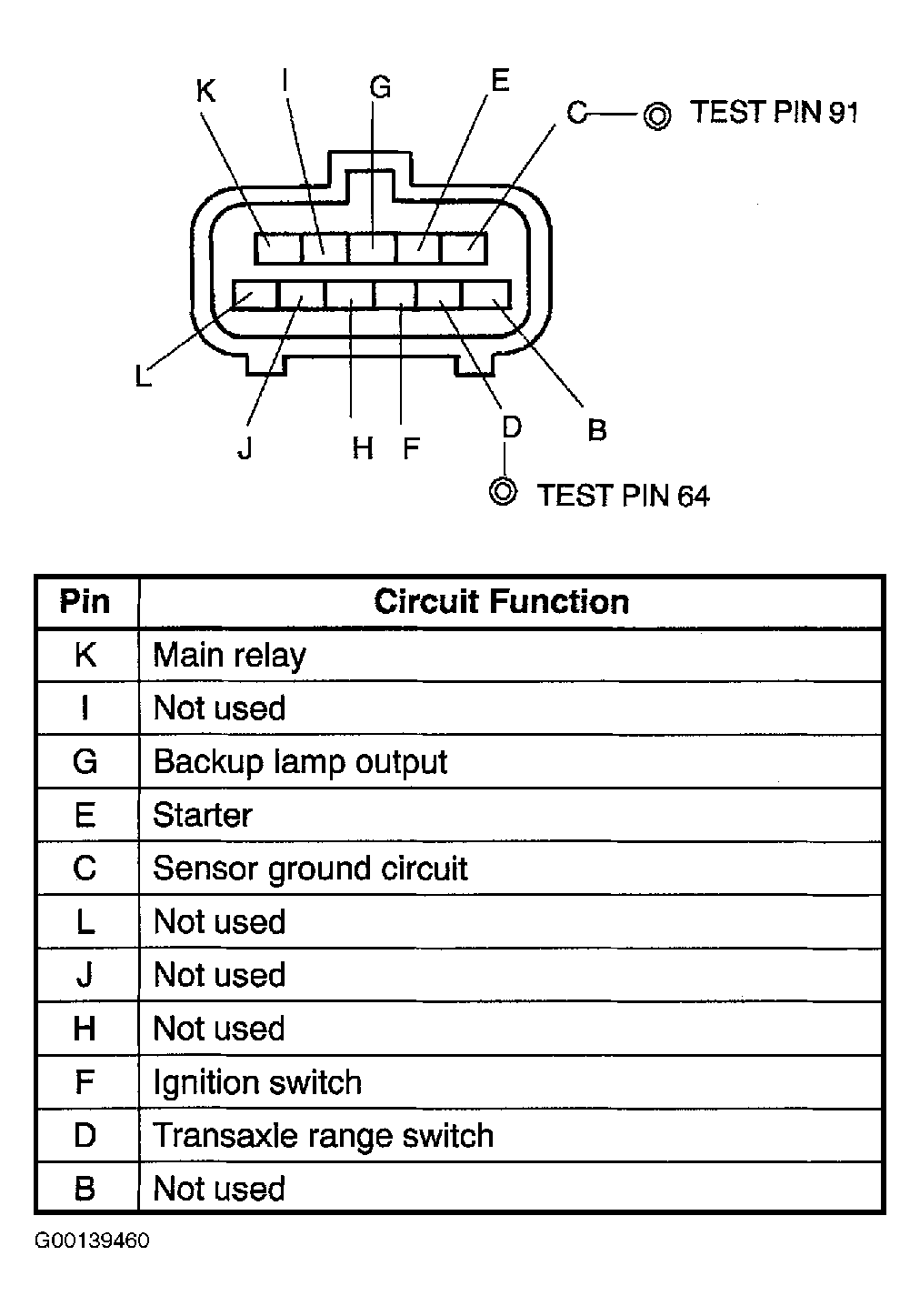

Fig 1: TR Sensor Connector End View
G00139460Courtesy of MAZDA MOTORS CORP.
