Exhaust System Removal/Installation [FS]

WARNING:
  • When the engine and exhaust system are hot, they can cause severe burns. Turn off the engine and wait until they are cool before removing or installing the exhaust system.
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

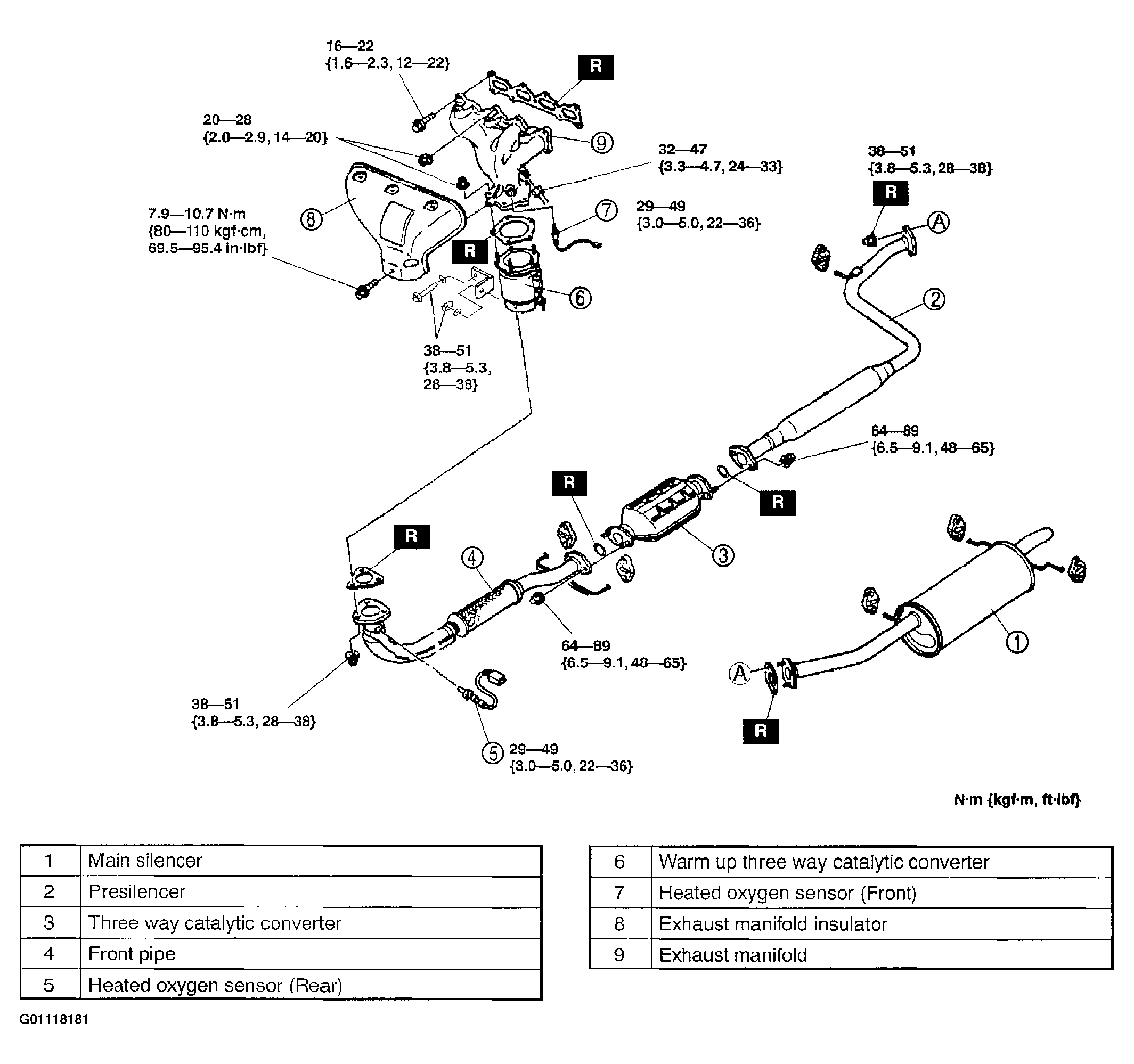

    Fig 1: Identifying Exhaust System Removal/Installation (2.0L)
    G01118181Courtesy of MAZDA MOTORS CORP.
