DTC C1117: Engine Speed Signal Line

Diagnostic Procedure

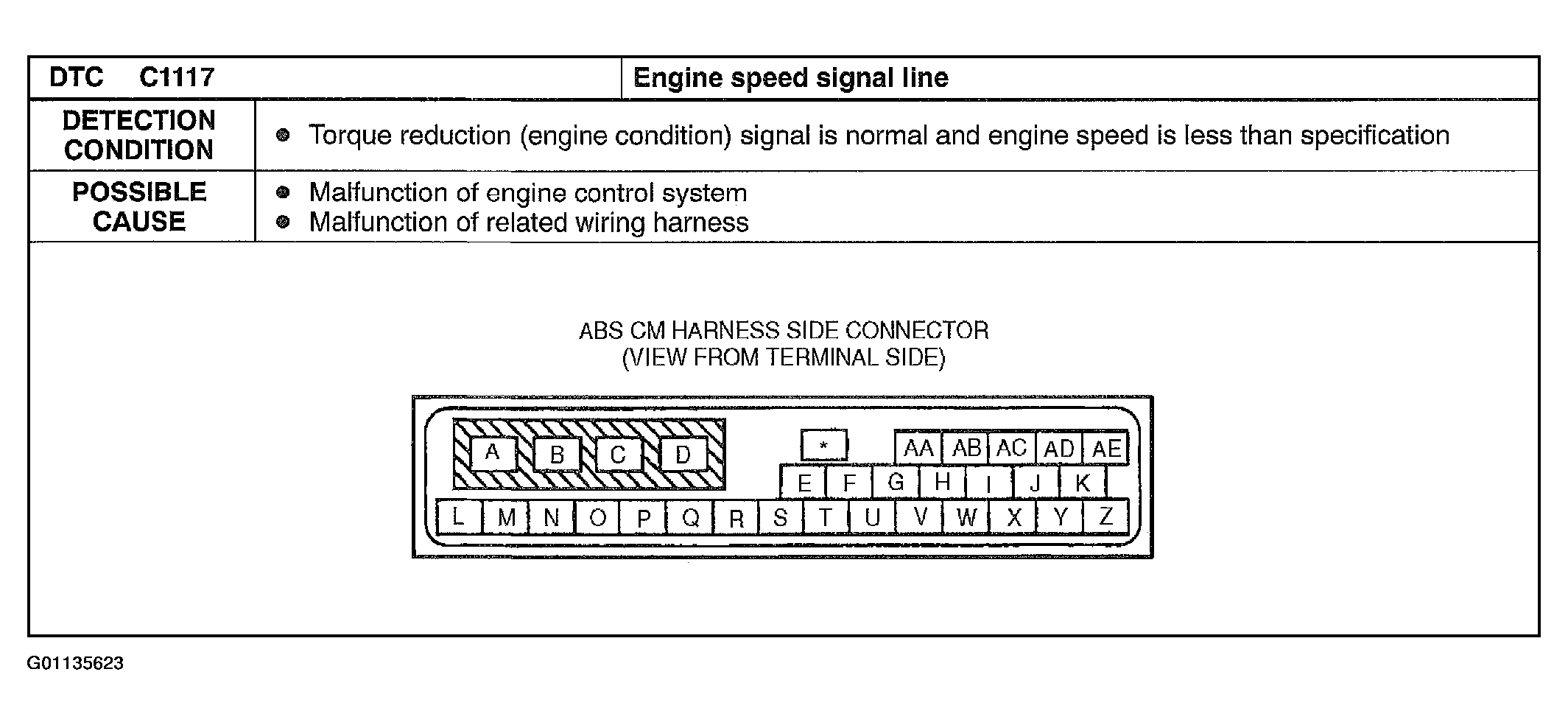

Fig 1: DTC C1117 Detection Condition & Possible Causes

Courtesy of MAZDA MOTORS CORP.

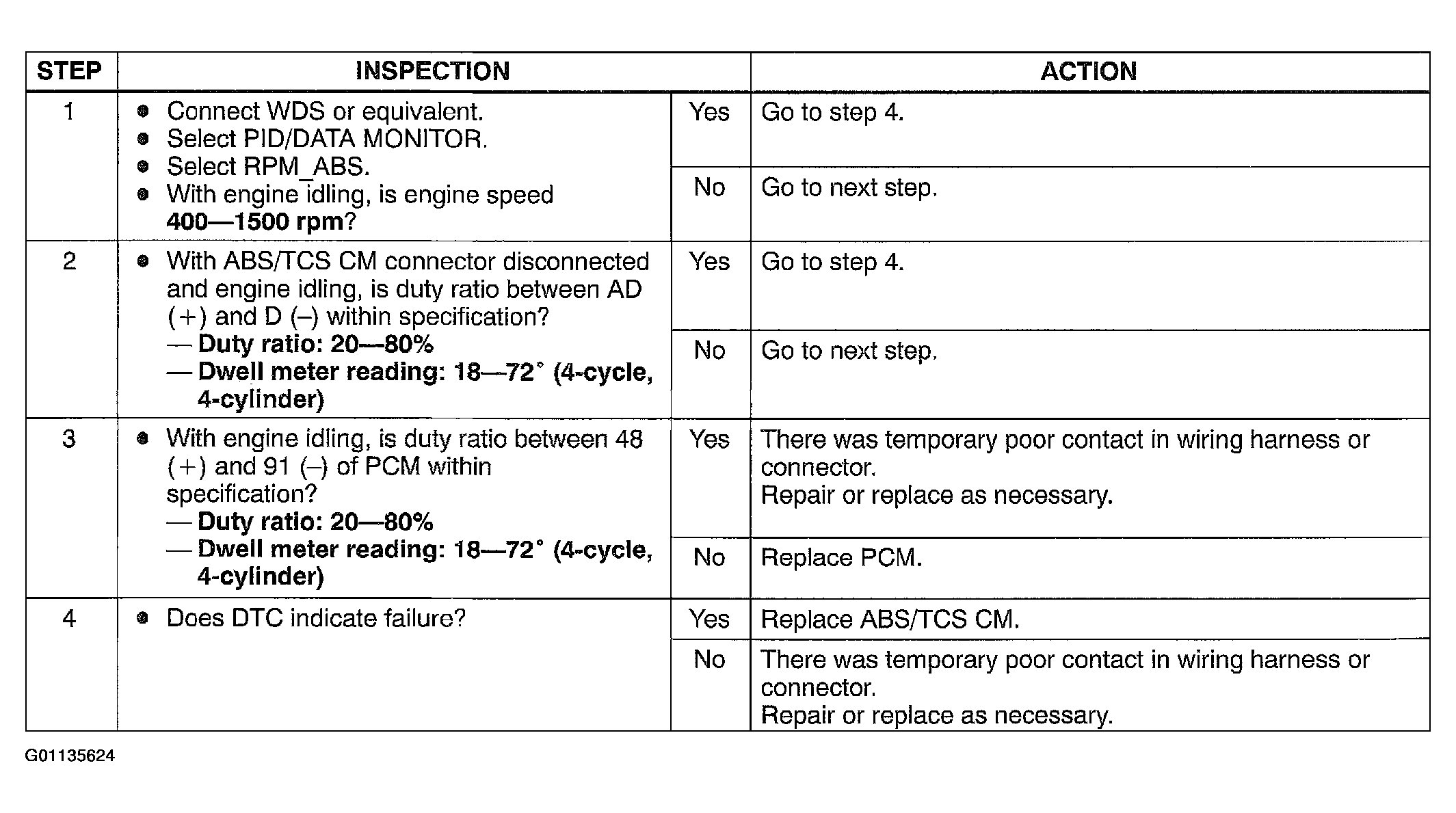

Fig 2: DTC C1117 Inspection & Action

Courtesy of MAZDA MOTORS CORP.
