Diagnostic Tool Message Index

WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

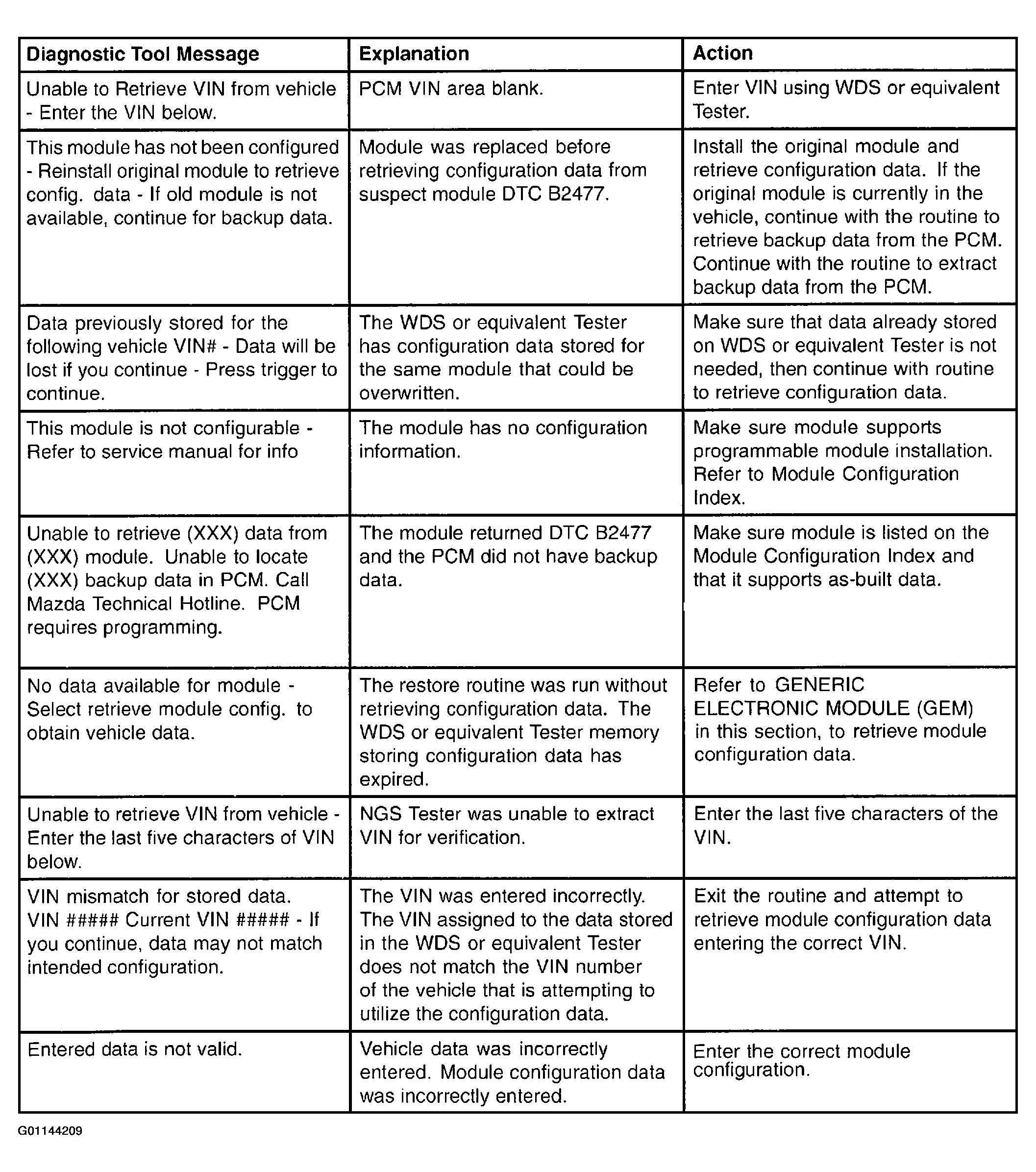

Fig 1: Diagnostic Tool Message Index (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

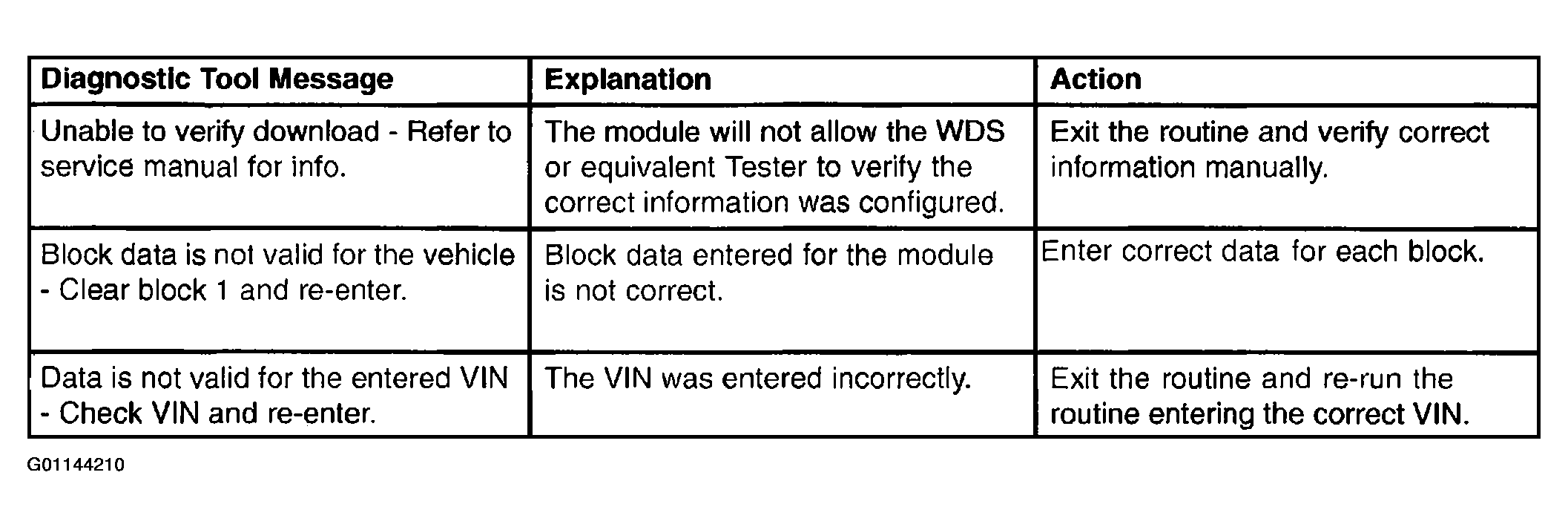

Fig 2: Diagnostic Tool Message Index (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
