Home › Mazda › 2002 › B2300 Automatic › Repair and Diagnosis › Steering › Power Steering › Steering Column Disassembly/Assembly › Notes

Steering Column Disassembly/Assembly: Notes

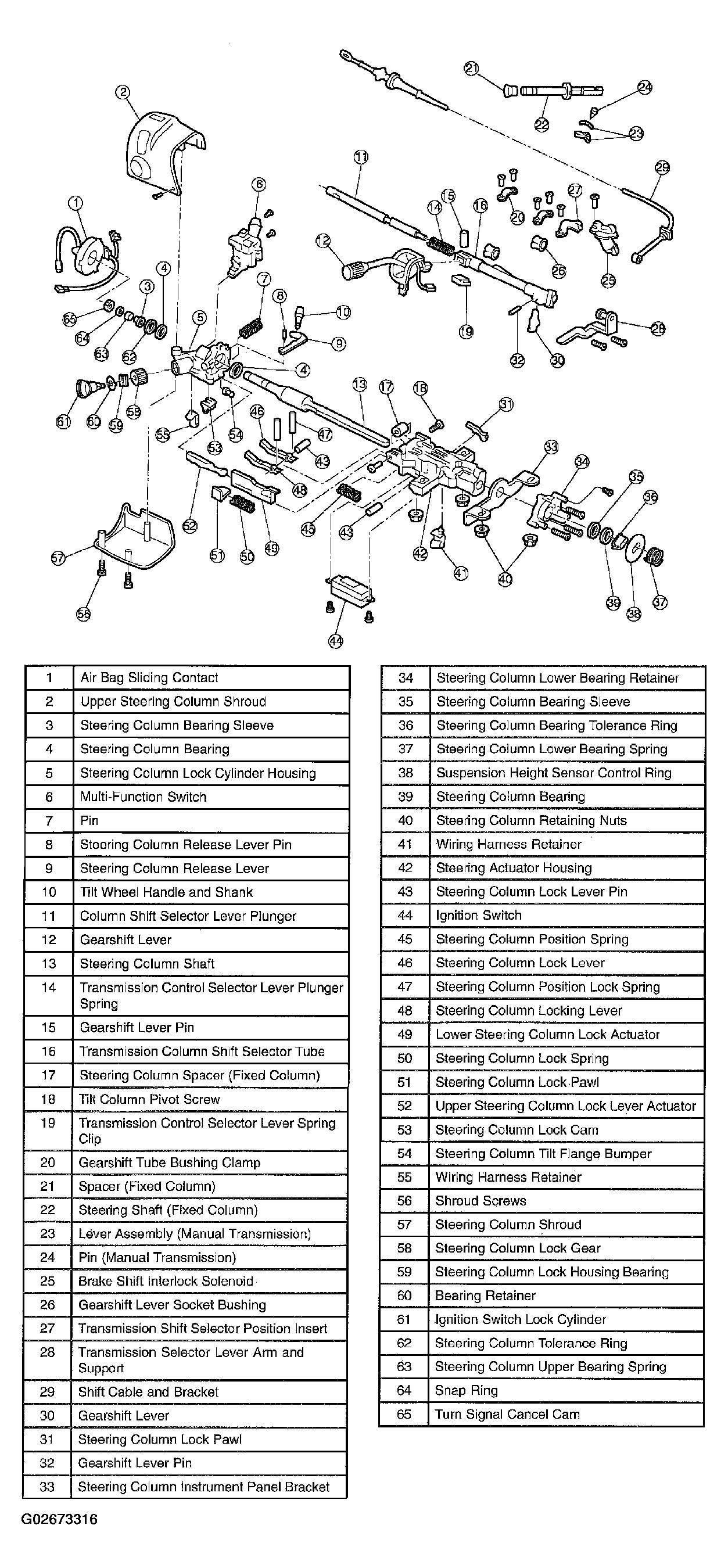

Fig 1: Exploded View Of Steering Column
G02673316Courtesy of MAZDA MOTORS CORP.
