Clutch Cover Installation Note
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- Align the clutch cover with the flywheel knock pin and install.

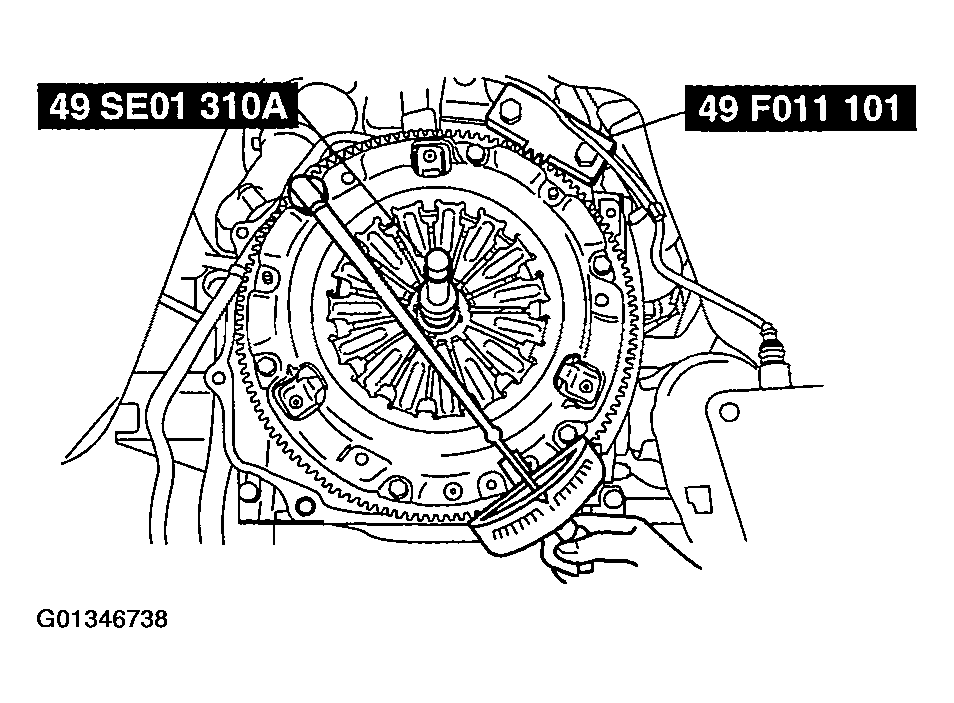

- Tighten the bolts evenly and gradually in the order shown in the figure.
Courtesy of MAZDA MOTORS CORP.
Tightening torque
17.6-26.5 N.m
{1.80-2.70 kgf.m, 13.0-19.5 ft.lbf}
