Clutch Disc Installation Note

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the splines of the clutch disc and the main drive gear with a brush.
  2. Spread a thin layer of clutch grease on the splines.
  3. Secure the clutch disc to the flywheel using the SSTs.

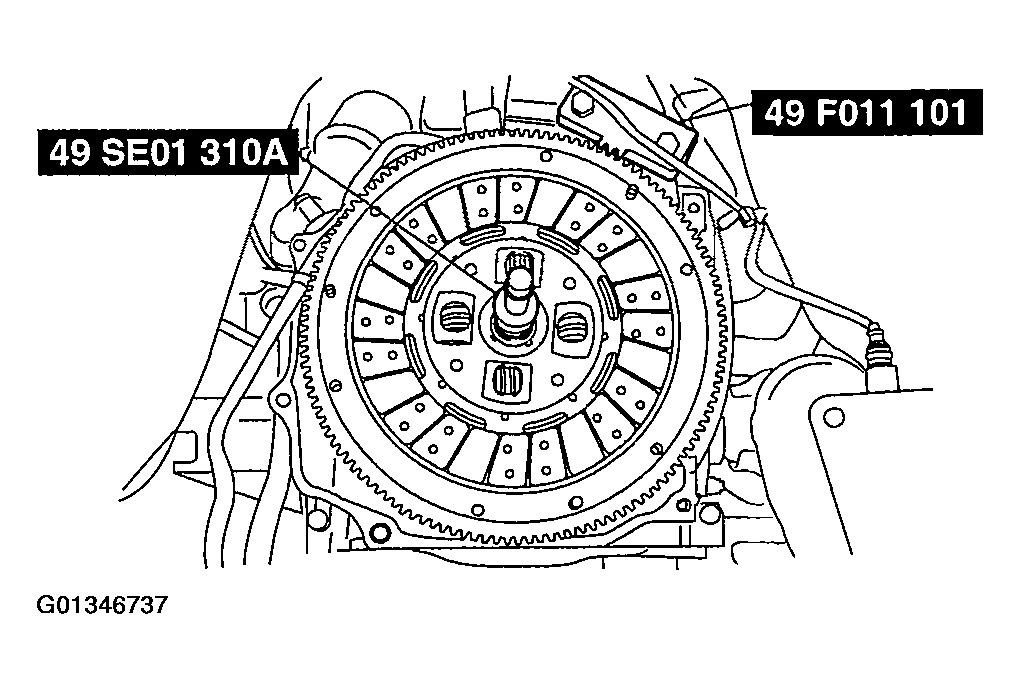

    Fig 1: Securing Clutch Disc To Flywheel Using Special Tool
    G01346737Courtesy of MAZDA MOTORS CORP.
