Flywheel Installation Note

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Install the key to the eccentric shaft.
Align the flywheel key groove with the eccentric shaft key and install.
Install the SST to the flywheel.

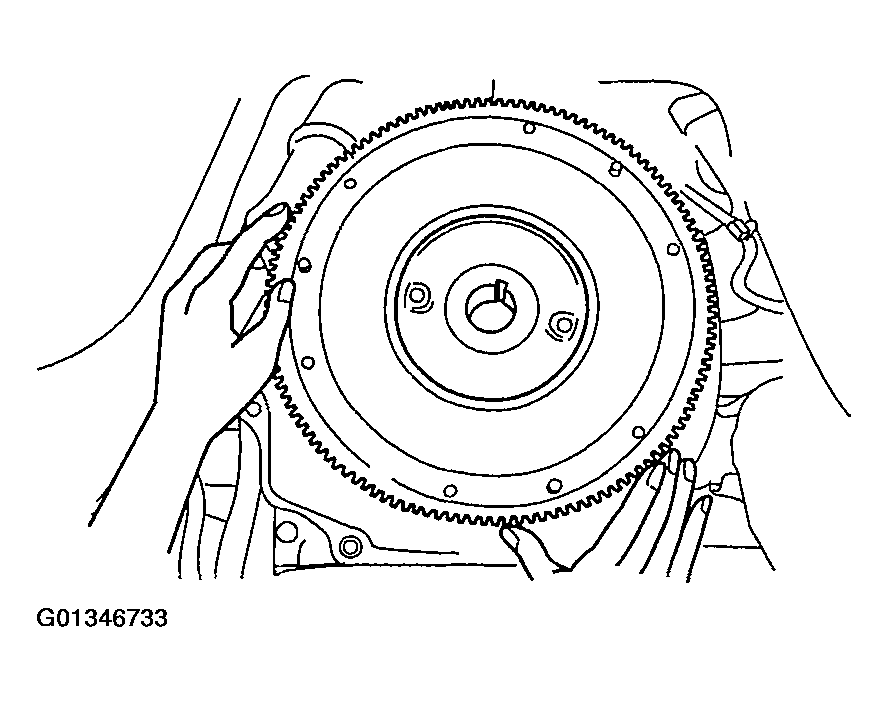

Fig 1: Aligning Flywheel Key Groove With Eccentric Shaft Key
Courtesy of MAZDA MOTORS CORP.
Apply silicone sealant to the locknut thread.

Fig 2: Applying Silicone Sealant To Locknut Thread
Courtesy of MAZDA MOTORS CORP.
Tighten the locknut using the SST.
Tightening torque

392-490 N.m

{40.0-49.9 kgf.m, 289-361 ft.lbf}
CAUTION:
- Remove the seal protruding from the threads without it becoming caught in the pilot bearing.

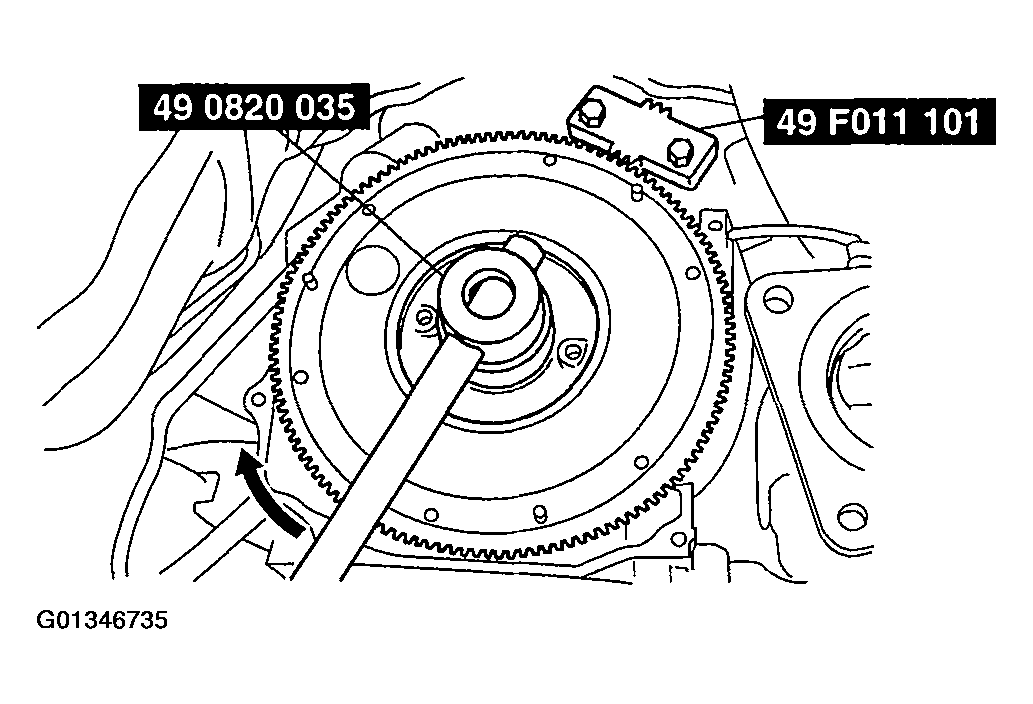

Fig 3: Tightening Locknut
Courtesy of MAZDA MOTORS CORP.
