Clutch Unit Removal/Installation: Notes
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

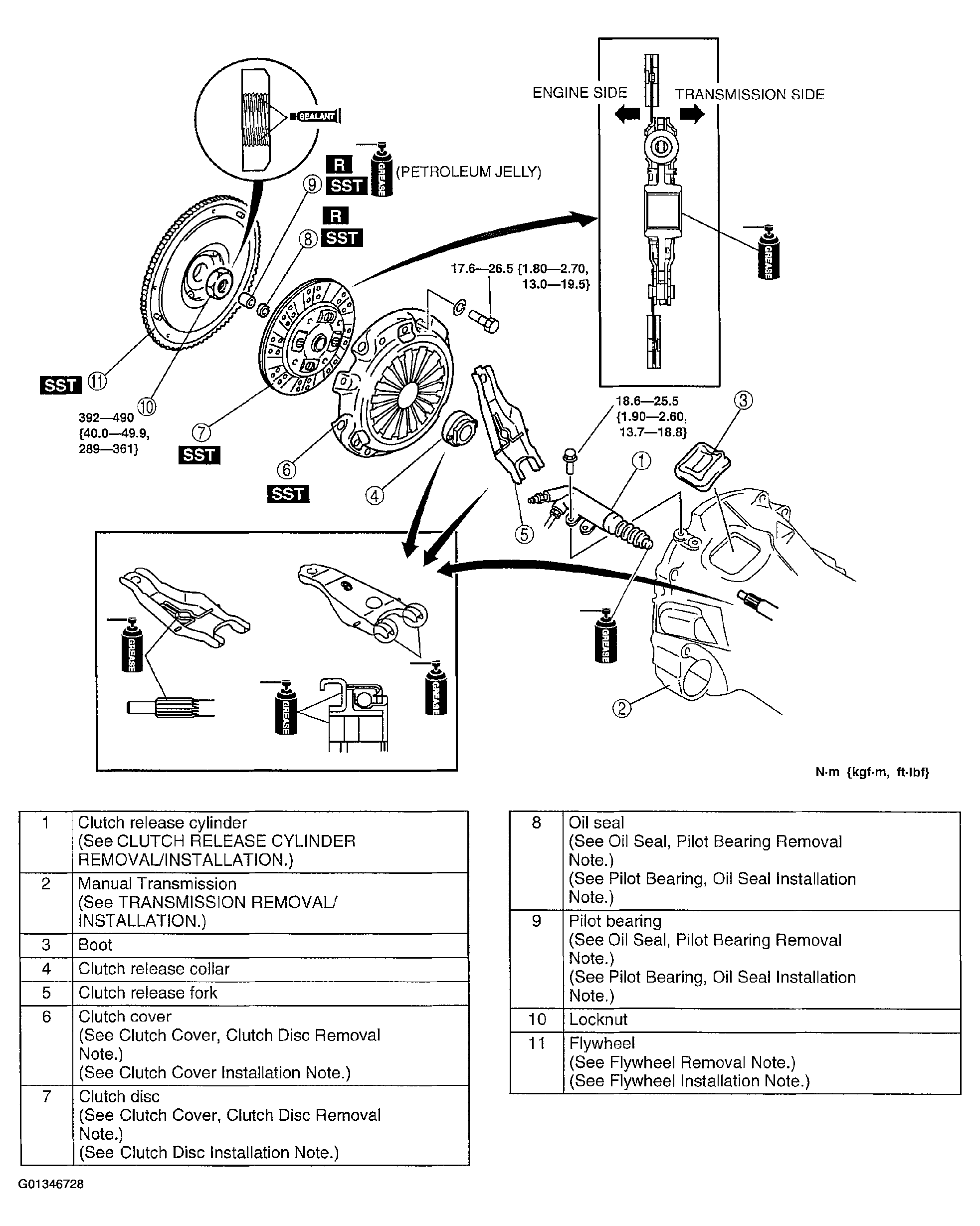

- Remove in the order indicated. See Fig 1 .
- Install in the reverse order of removal.
