Front Suspension Components

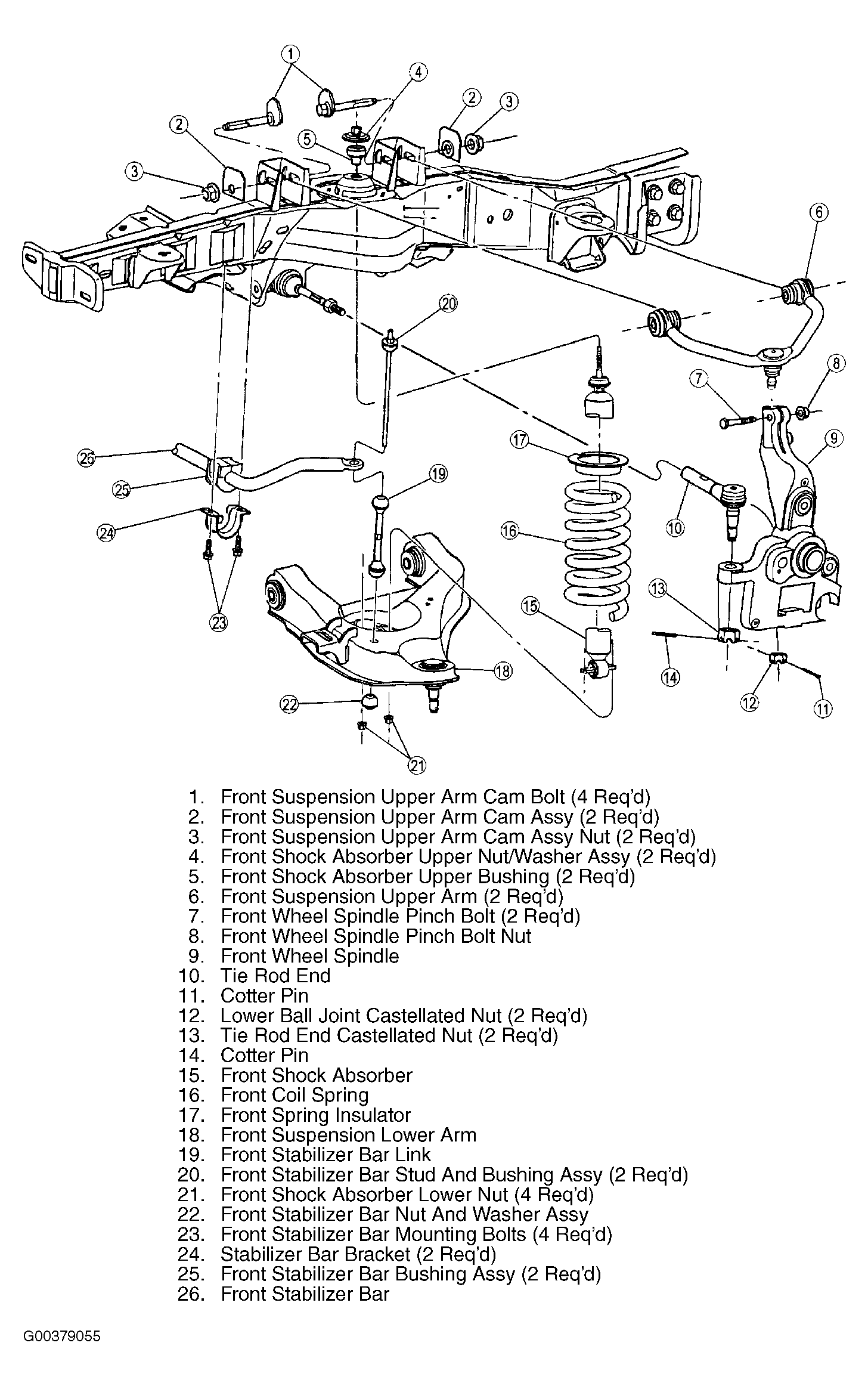

Fig 1: Front Suspension Components - 4X2

Courtesy of MAZDA MOTORS CORP.

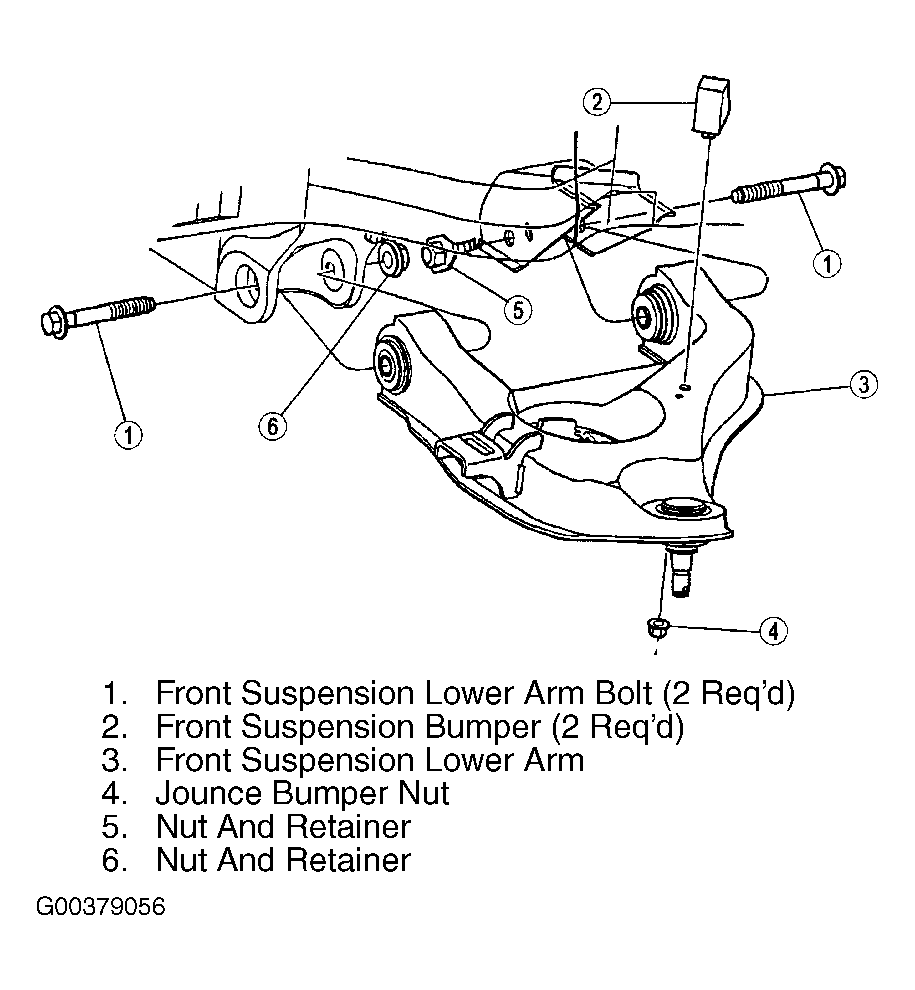

Fig 2: Lower Arm Components - 4X2

Courtesy of MAZDA MOTORS CORP.

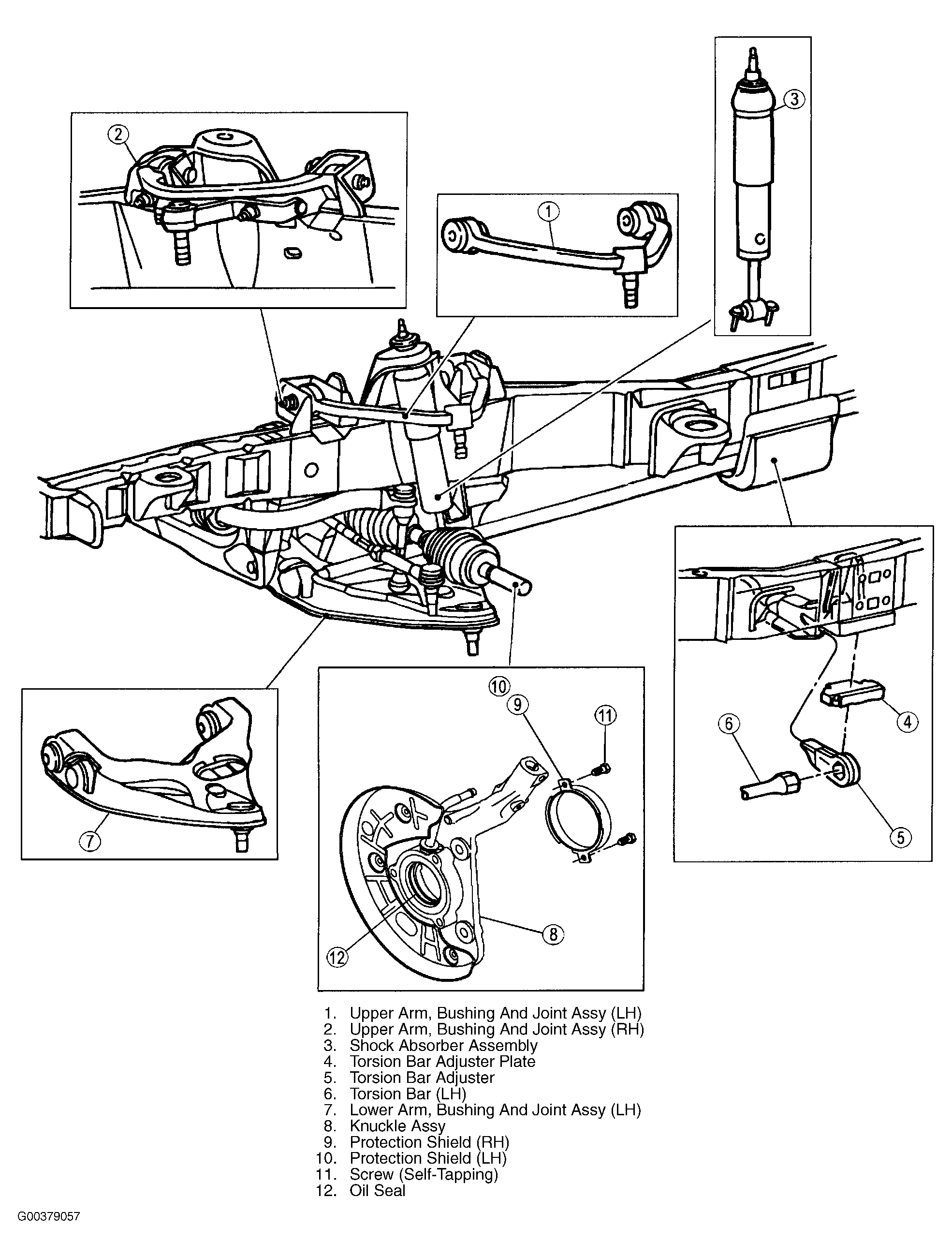

Fig 3: Front Suspension Components - 4X4

Courtesy of MAZDA MOTORS CORP.
