Door Lock-Link Switch

NOTE:
  • The front door lock-link switch is together with the front door lock actuator.
  1. Disconnect the front door lock actuator connector.
  2. Inspect for continuity between the front door lock-link switch terminals using an ohmmeter.
    • If not as specified, replace the front door lock actuator.
Fig 1: Identifying driver's Side Door Lock-Link Switch Continuity
G01196445Courtesy of MAZDA MOTORS CORP.
Fig 2: Identifying Passenger's Side (With Theft-Deterrent System) Door Lock-Link Switch Continuity
G01196446Courtesy of MAZDA MOTORS CORP.

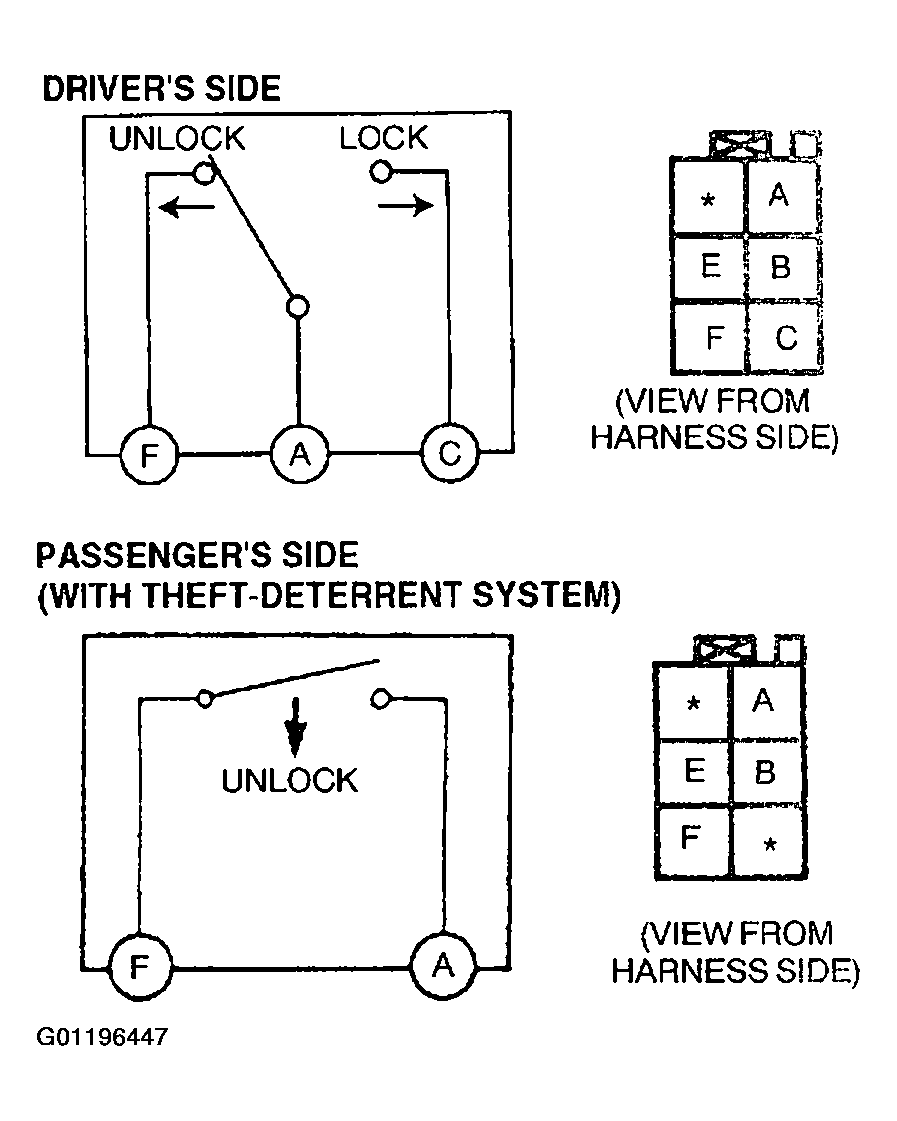

Fig 3: Identifying Door Lock-Link Switches
G01196447Courtesy of MAZDA MOTORS CORP.
