Liftgate Side Trim Removal/Installation

1. Remove the liftgate upper trim.
2. Remove the fastener.
3. Pull the liftgate side trim forward to disengage clips A and pin B from the body.
4. Pull the liftgate side trim upward, then disengage hook C from the liftgate lower trim, and remove the liftgate side trim.
5. Install in the reverse order of removal.

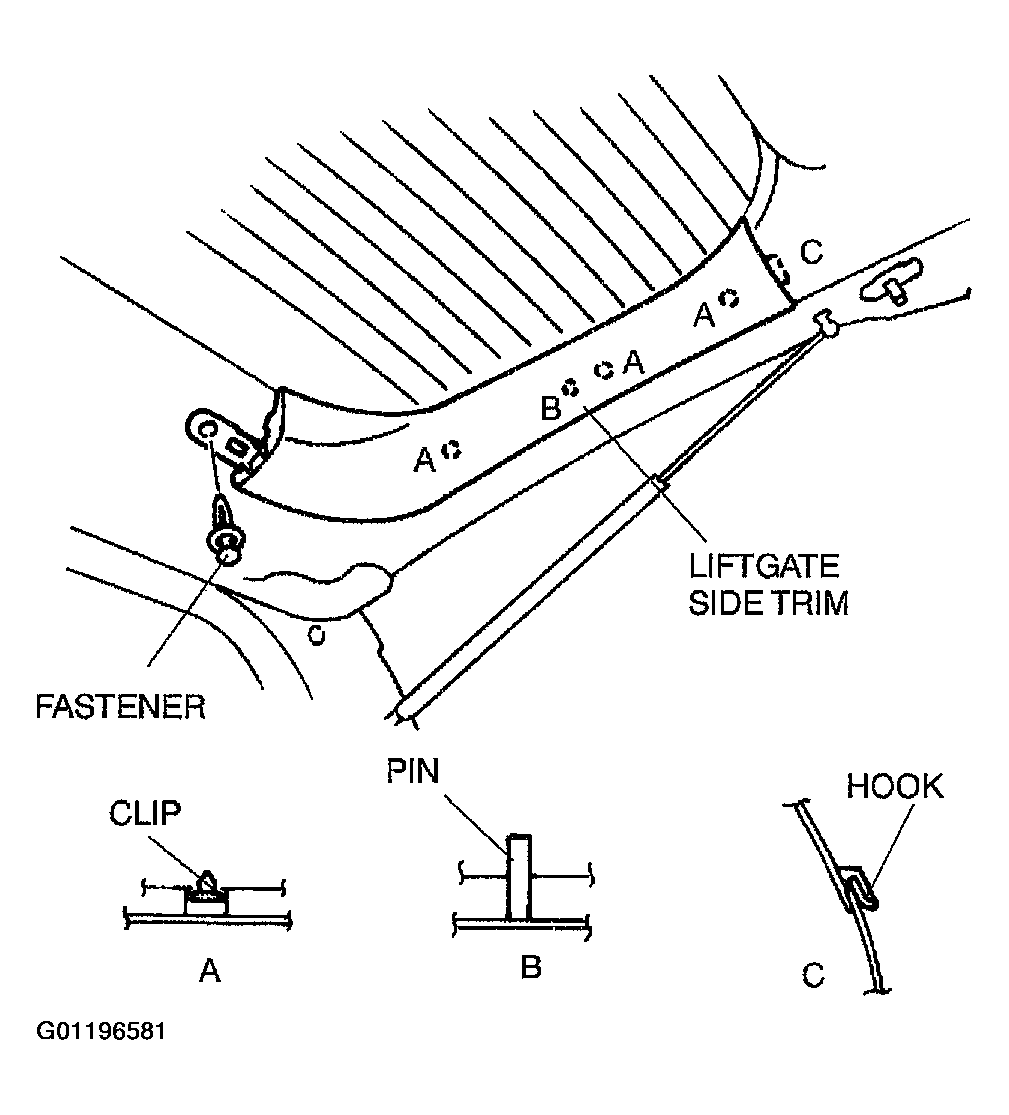

Fig 1: Removing Liftgate Side Trim

Courtesy of MAZDA MOTORS CORP.
