Rear Scuff Plate Removal/Installation

1. Pull the rear scuff plate upward, then disengage clips A, pin B and hooks C from the body, and remove the rear scuff plate.
2. Install in the reverse order of removal.

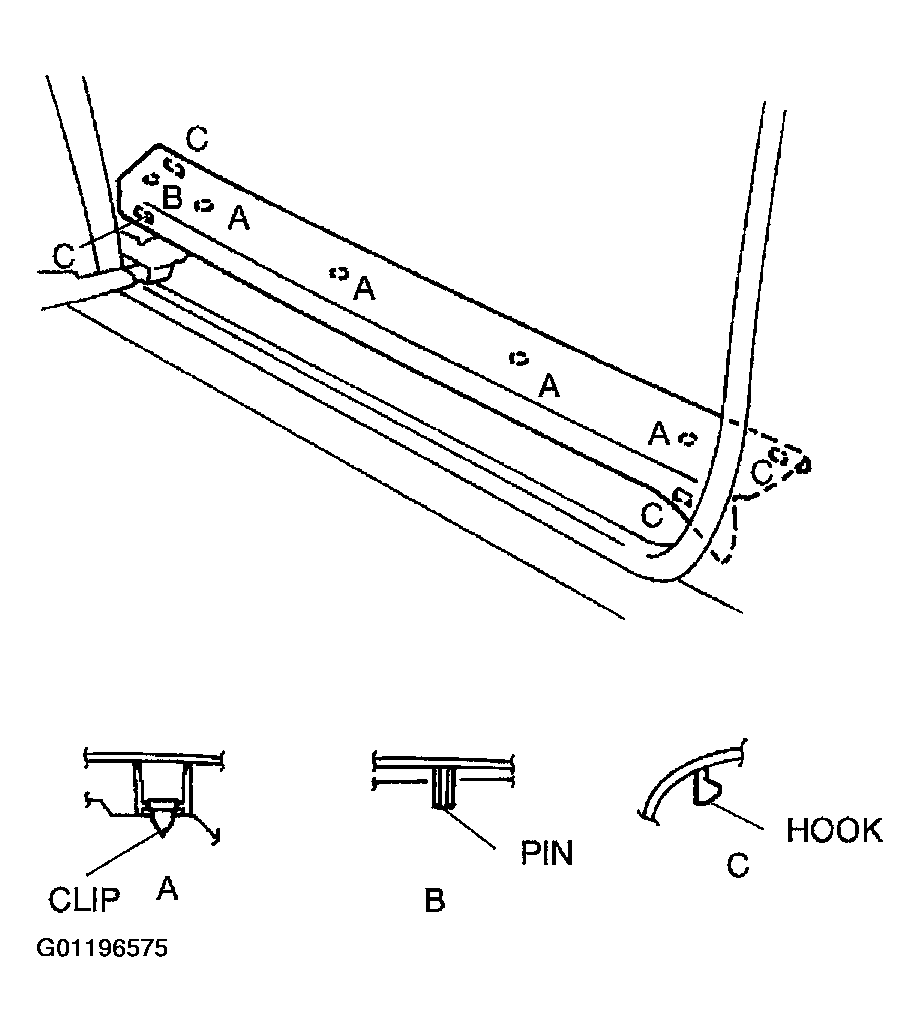

Fig 1: Removing Rear Scuff Plate

Courtesy of MAZDA MOTORS CORP.
