Long Slider And Adapter Removal/Installation

1. Remove the second-row seat. See SECOND-ROW SEAT REMOVAL  .
2. Remove the front floor covering. See FRONT FLOOR COVERING REMOVAL/INSTALLATION .
3. Remove in the order indicated in the illustration.
4. Install in the reverse order of removal.

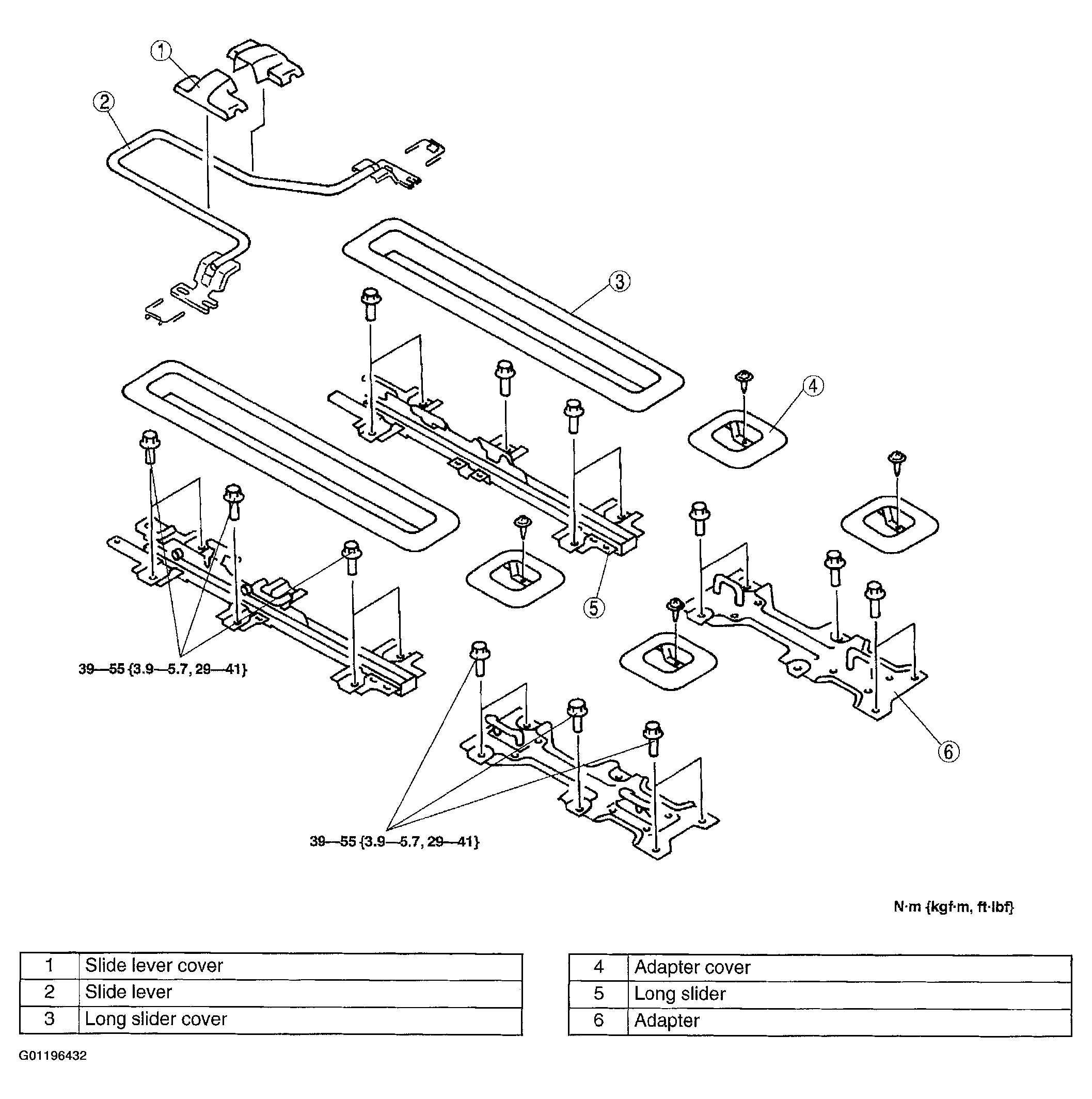

Fig 1: Removing Long Slider

Courtesy of MAZDA MOTORS CORP.
