Third-Row Seat Disassembly/Assembly

1. Disassemble in the order indicated in the illustration.
2. Assemble in the reverse order of disassembly.

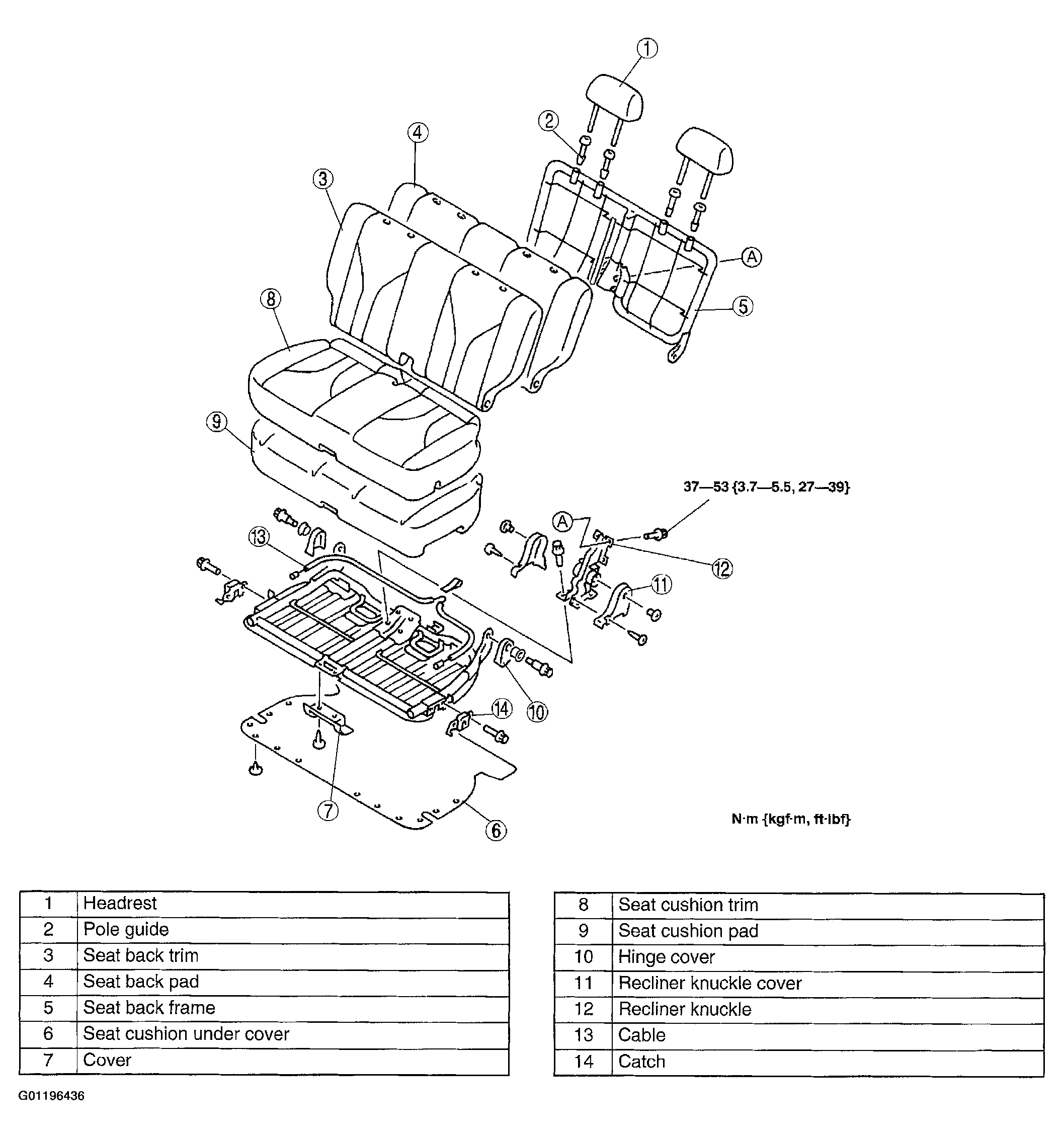

Fig 1: Exploded View Third Row Seat

Courtesy of MAZDA MOTORS CORP.
