Terminal Voltage Table (Reference Value)

Ignition switch is at ON, and connector is connected unless indicated otherwise.

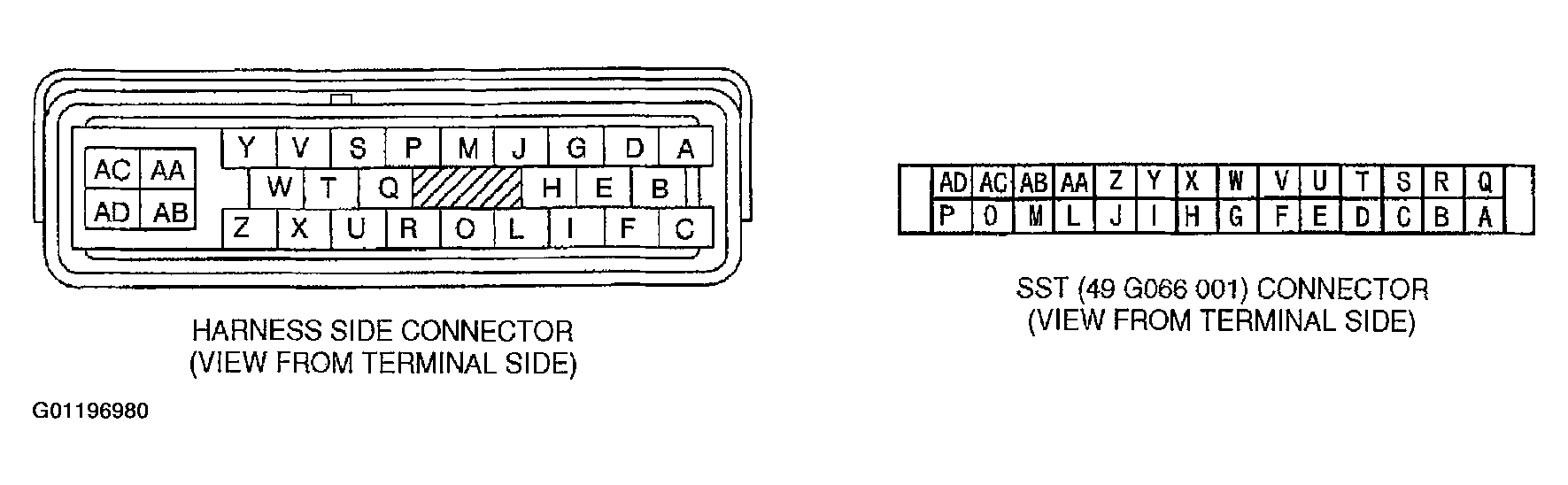

Fig 1: Identifying ABS HU/CM Terminals

Courtesy of MAZDA MOTORS CORP.

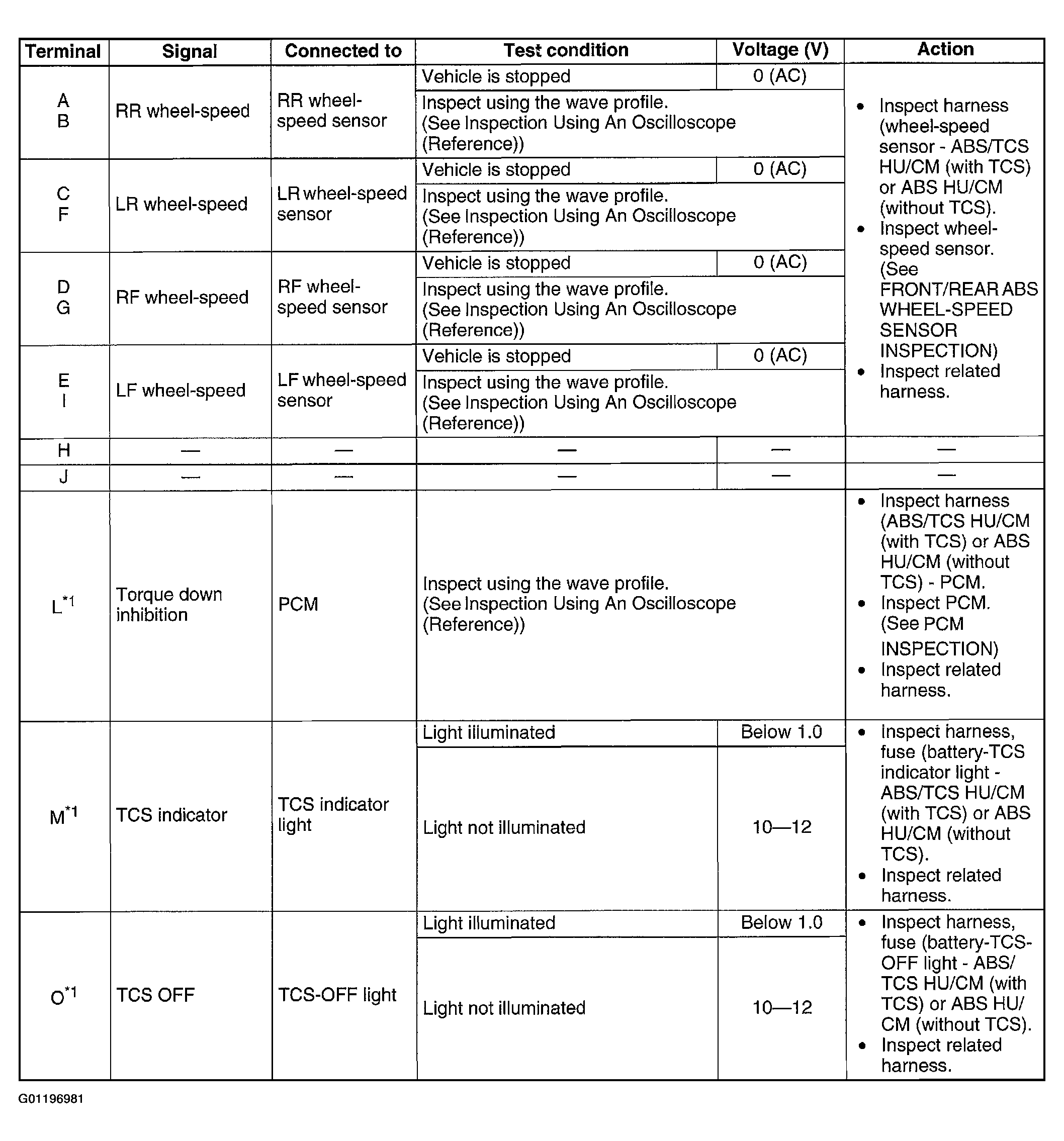

Fig 2: ABS HU/CM Terminal Values (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

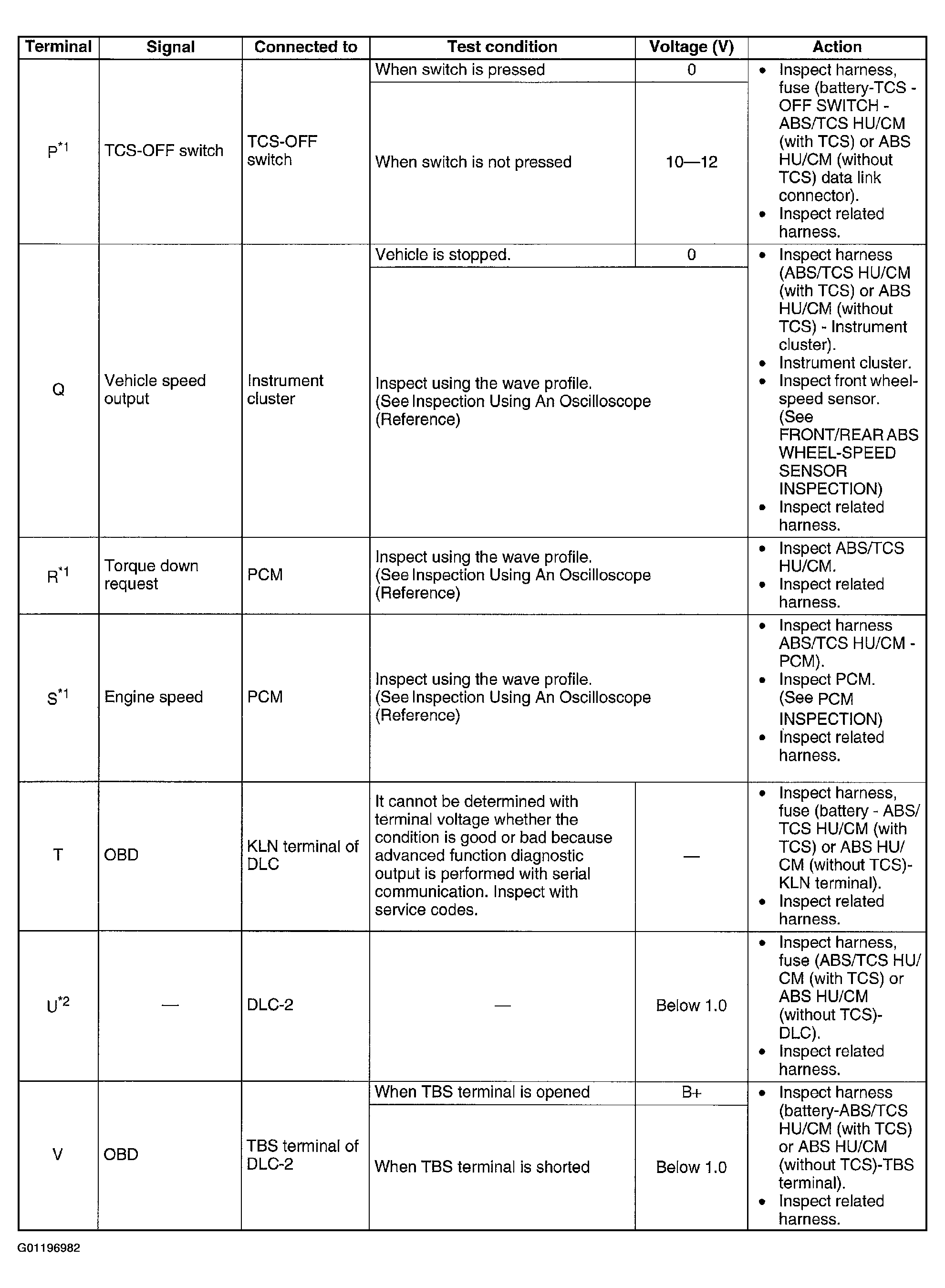

Fig 3: ABS HU/CM Terminal Values (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

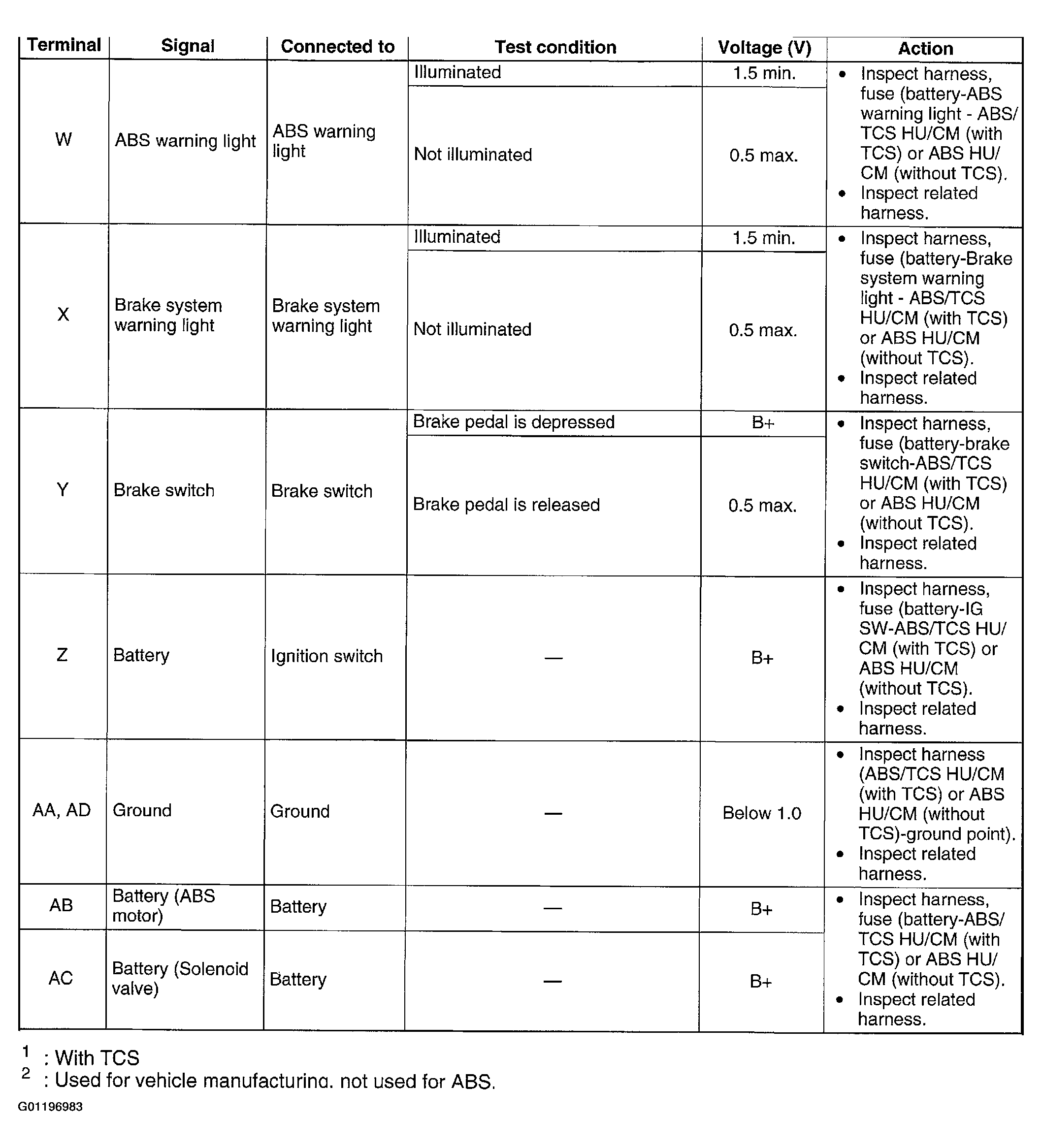

Fig 4: ABS HU/CM Terminal Values (3 Of 3)

Courtesy of MAZDA MOTORS CORP.
