Without Using WDS Or Equivalent

  1. Connect the TBS terminal at DLC to body ground using a jumper wire.

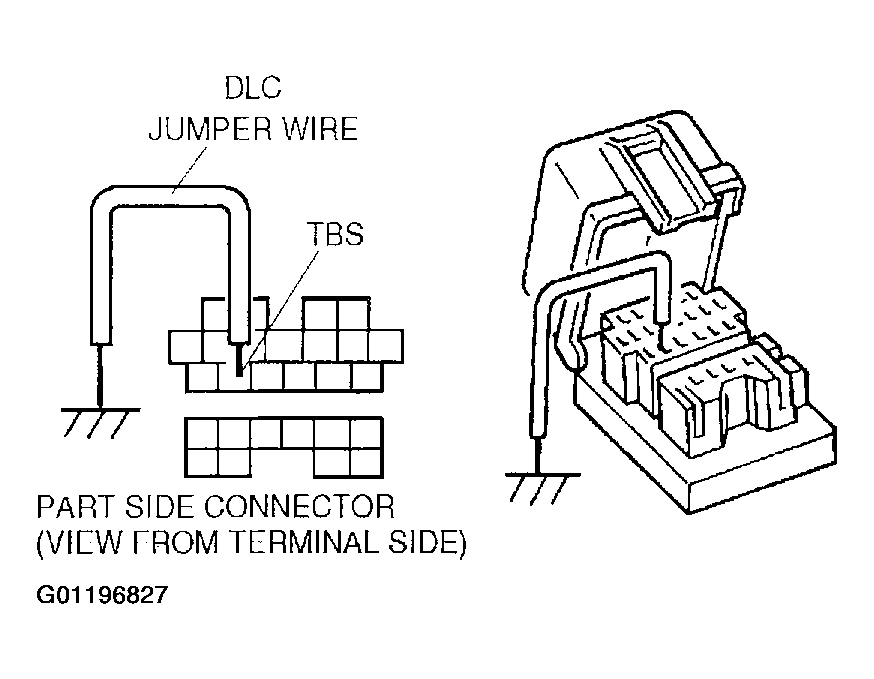

  2. Fig 1: Identifying DLC TBS Terminal
    G01196827Courtesy of MAZDA MOTORS CORP.
  3. Turn ignition key to ON (engine off).
  4. After the ABS warning light illuminates for 3 seconds  the ABS warning light indicates DTCs.
  5. After completion of repairs, clear DTCs.
Fig 2: Warning Light Flashing Pattern (DTC 22 Shown)
G01196828Courtesy of MAZDA MOTORS CORP.
