Diagnostic Procedure

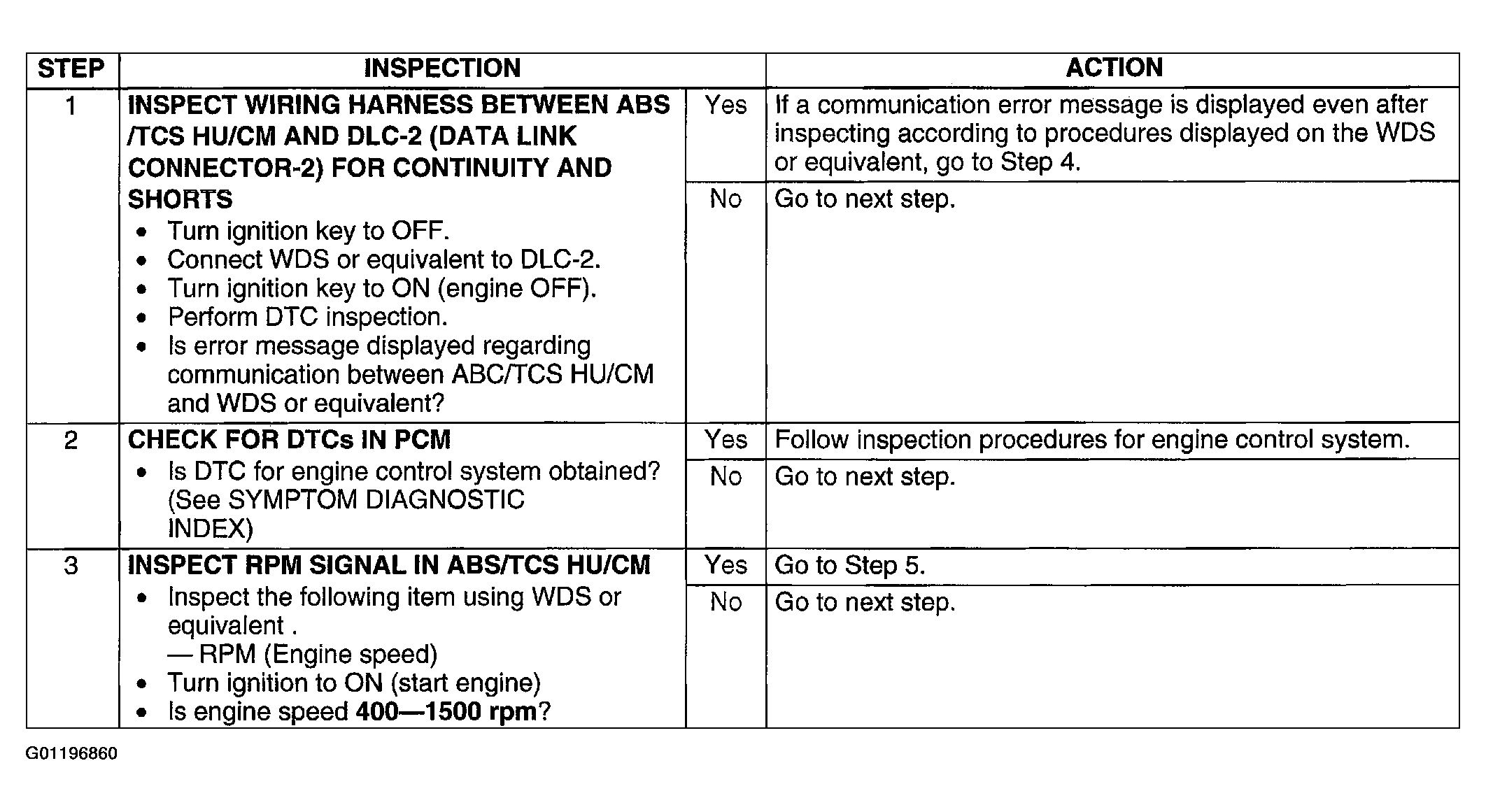

Fig 1: DTC C1117 (17) Diagnostic Procedure (1 Of 2)
G01196860Courtesy of MAZDA MOTORS CORP.

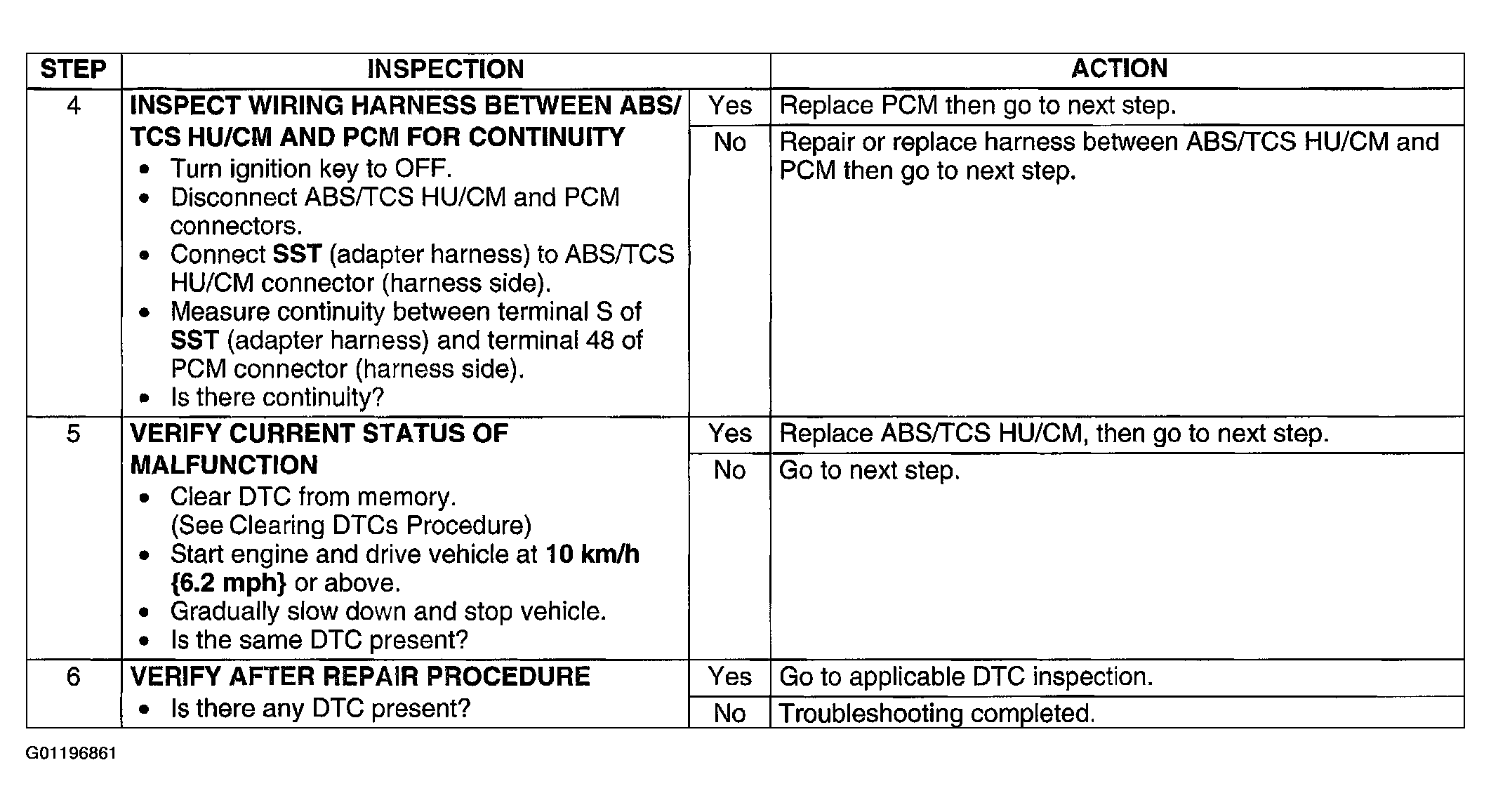

Fig 2: DTC C1117 (17) Diagnostic Procedure (2 Of 2)
G01196861Courtesy of MAZDA MOTORS CORP.
