No. 11 TCS Does Not Operate Correctly (With TCS)
›
Diagnostic Procedure
Diagnostic Procedure

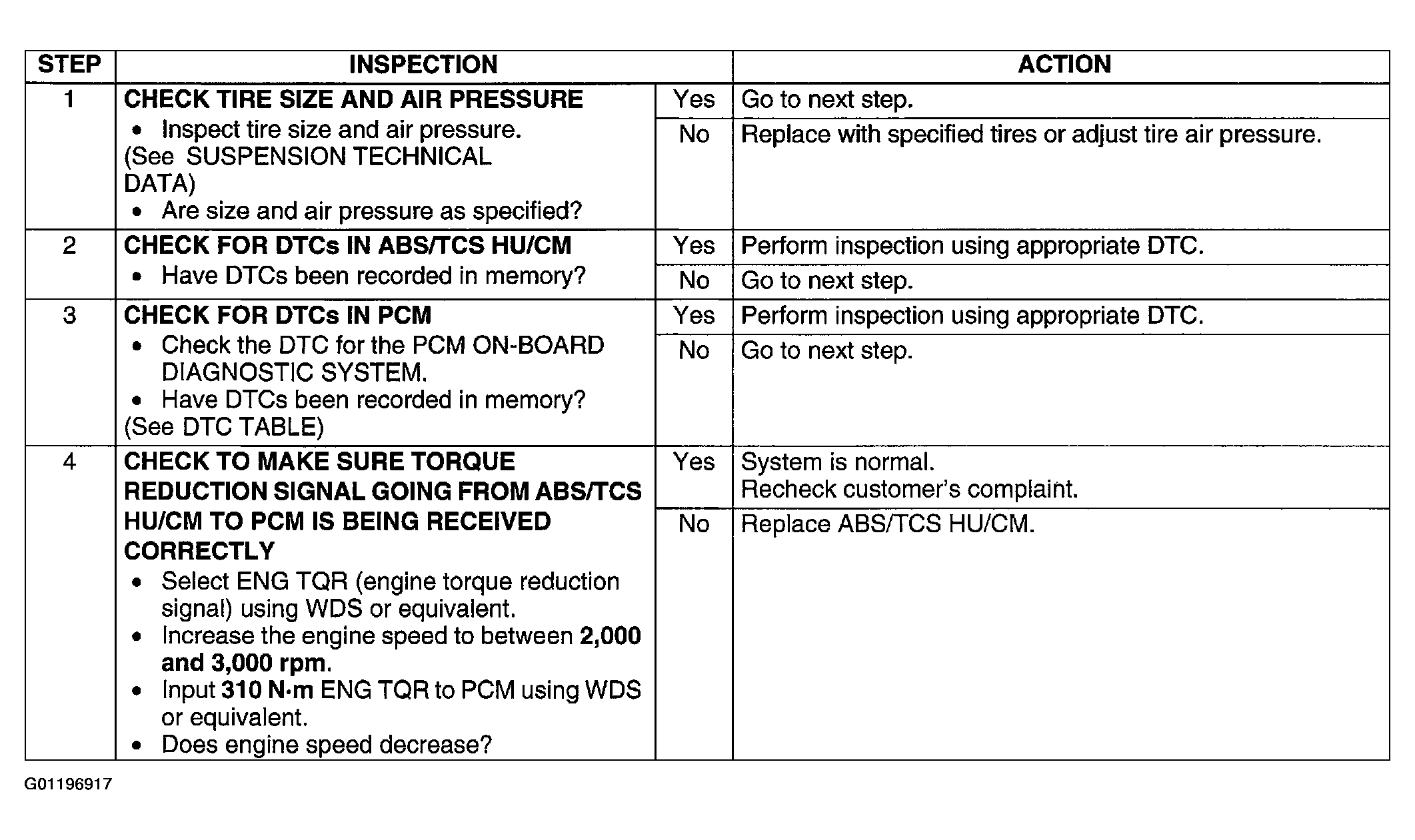

Fig 1: No. 11 TCS Does Not Operate Correctly (With TCS) Diagnostic Procedure
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
