No. 12 Brake And TCS System Malfunction (With TCS)
›
Diagnostic Procedure
Diagnostic Procedure

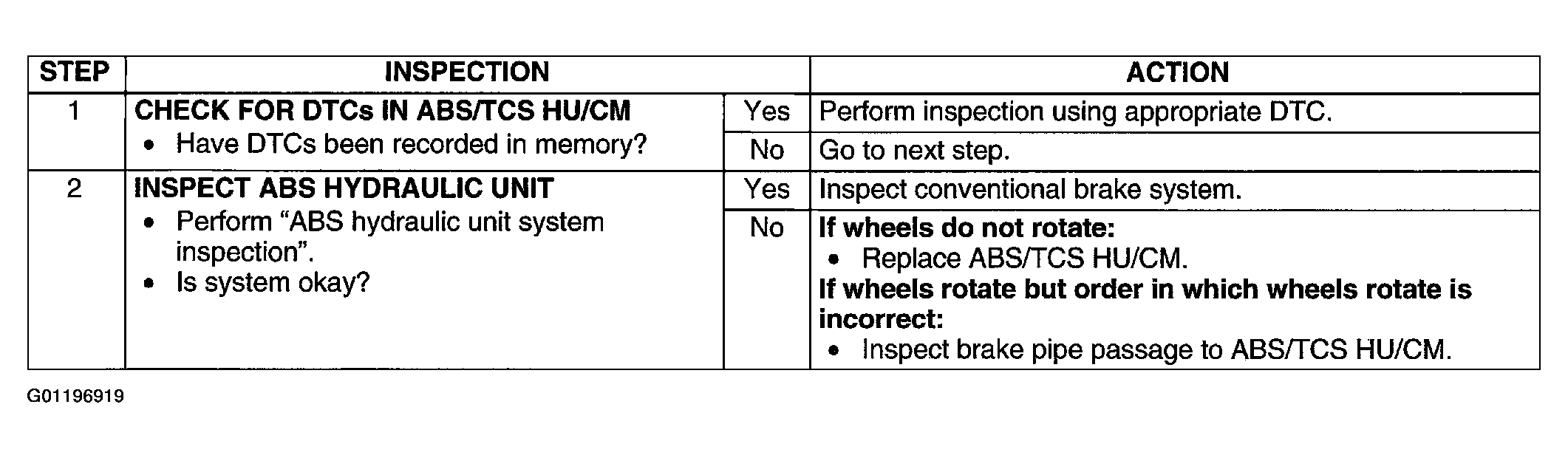

Fig 1: No. 12 Brake & TCS System Malfunction (With TCS) Diagnostic Procedure
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
